K4500-3
Small industrial workhorse that is designed for power input of 60 HP (45 kW)
60 HP (45 kW) High-Pressure Pump for relatively small sized cleaning and other applications
This belt drive pump is the next step into the sub-100 HP (75 kW) range of products. Designed with Kamat’s standard modular component system, the versatile construction design provides multiple possibilities for different pump head and plunger combinations. This gives the user many different operating parameters as well as pump media options. The media can have a viscosity of up to 2,000 mPas (millipascal second).
In addition, the standard design of the pumps consists of a small number of component parts; this means that reliability is enhanced. Driven by an external gear reduction or sheaves, this pump is well suited for small-scale industrial applications and for industrial cleaning.
WARNING: This product might contain a chemical known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
| Specification | US | Metric |
|---|---|---|
| Minimum Flow | 2.1 GPM | 8 L/min |
| Maximum Flow | 61.3 GPM | 232 L/min |
| Minimum Pressure | 725 PSI | 50 bar |
| Maximum Pressure | 43511 PSI | 3000 bar |
| Speed | 650 RPM | |
| Power Consumption | 60 BHP | 45 kW |

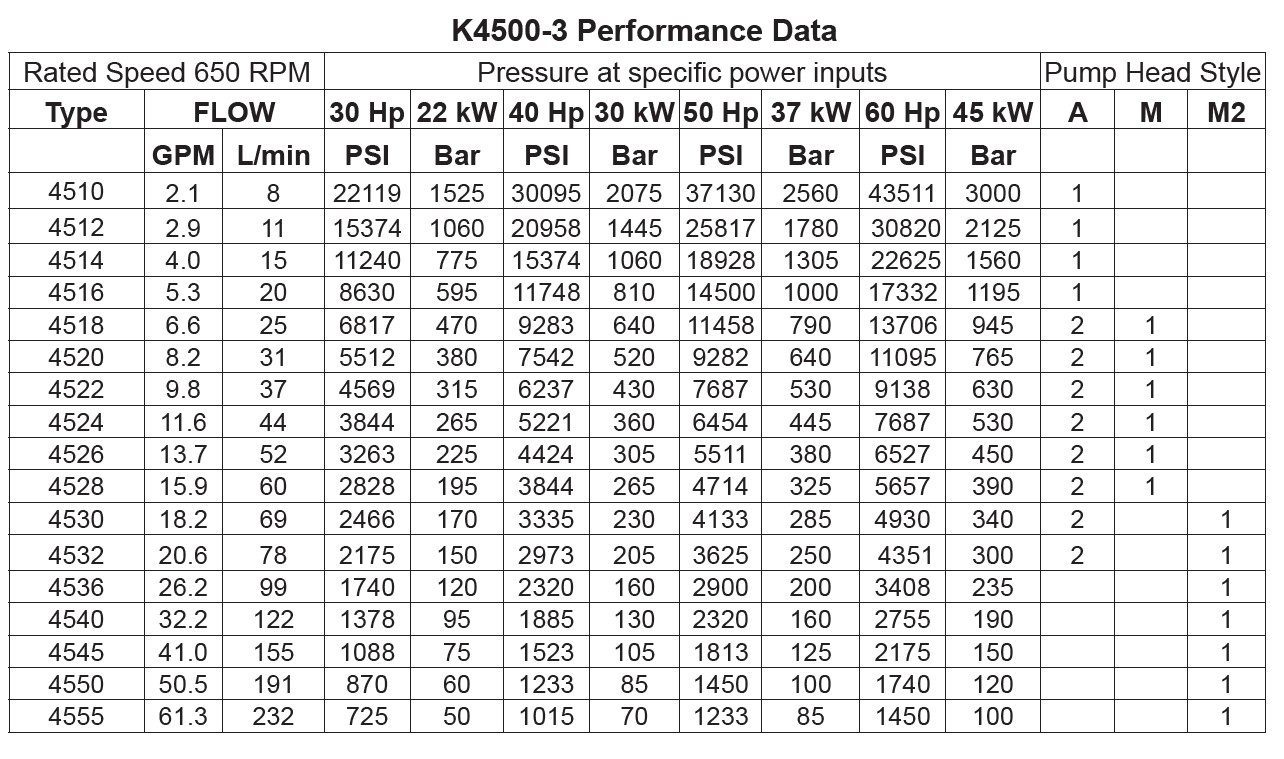

Horsepower Specifications
Images Open in new Window/Tab
