Small Pump, Big Punch:  30,000 PSI (2,000 bar) with 20 HP (15 kW)

With 20 HP (15 kW), KAMAT’s smallest High-Pressure Pump achieves 30,000 PSI (2,000 bar)

This compact series of pumps is designed with similar qualities as the most powerful pumps of their size class.  Some of the primary applications include paint and rust removal and its compact design allows for diverse methods of driving the pump.  This series of pump is ideally driven by electric, diesel or gasoline power.  At an estimated 55 lbs. (25 kg), it fits in a the tightest of areas and is perfect for mobile units.

WARNING: This product might contain a chemical known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Specification US Metric
Minimum Flow.9 GPM3.4 L/min
Maximum Flow1.8 GPM6.8 L/min
Minimum Pressure14500 PSI1000 bar
Maximum Pressure17400 PSI1200 bar
Speed1000 RPM
Power Consumption20.1 BHP15 kW

Horsepower Specifications

Images Open in new Window/Tab

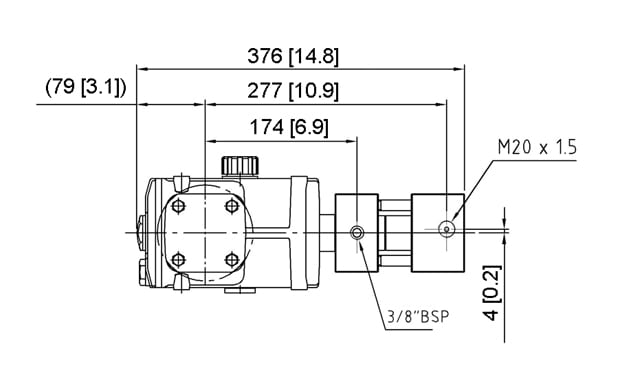

  • Dimensional Drawing (Side) Open

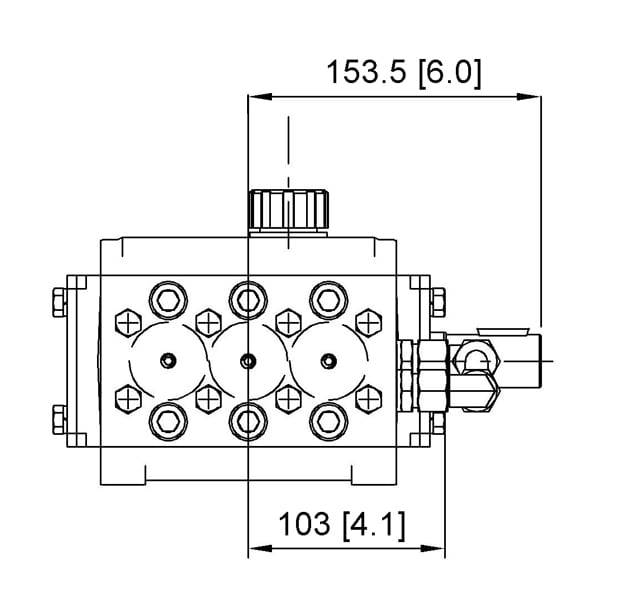

  • Dimensional Drawing (Front) Open

Literature

Documents open in new window/tab.

  • K 111A Literature
