Pressure Limiting Valves

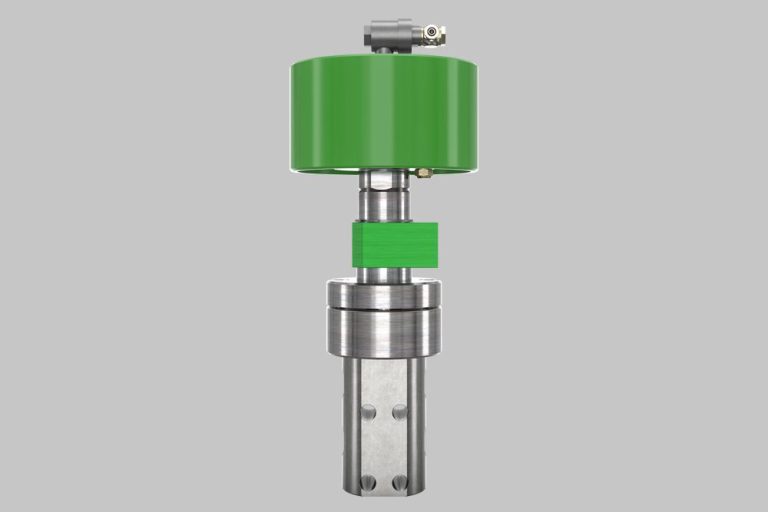

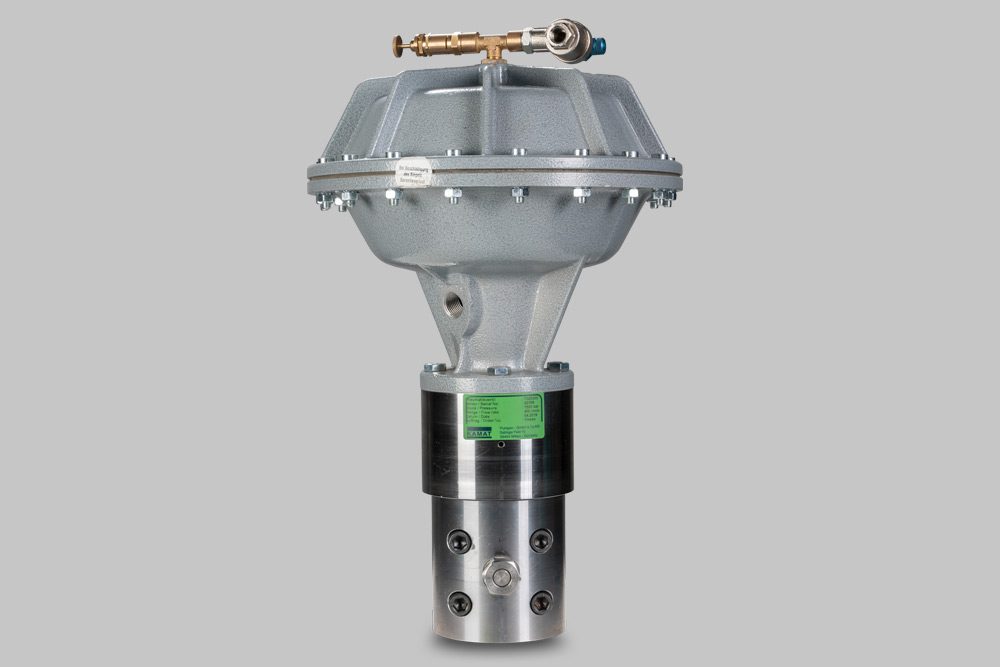

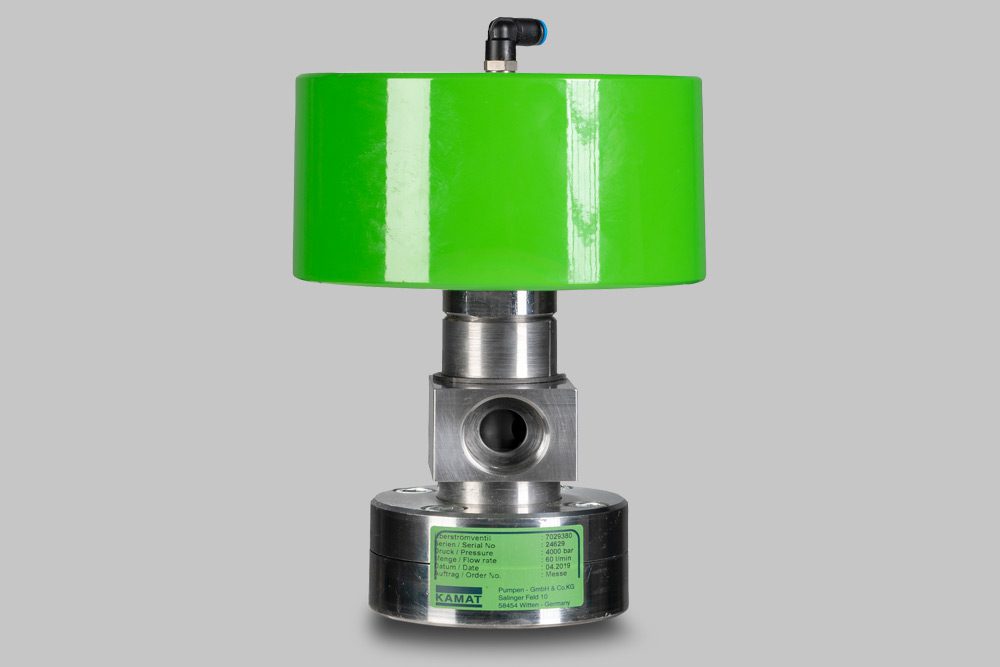

Pressure limiting valves

Mechanically and pneumatically remote operated valves for precise and efficient operation

KAMAT pressure limiting valves for our high-pressure pumps ensure the optimal working pressure at all times. They can be configurated to control pressure either using mechanical pre-adjustment or remote using pneumatic control. We are also able to manufacture many of our pressure limiting valves using special materials, making them ideal for the process industry. Furthermore, are our regulating rods made from ceramics or stellite, making all our valves very resistant to wear.

Technical Specifications

  • pneumatic (= remote controllable, low hysteresis) or spring-loaded
  • up to 4,000 bar
  • up to 4,600 l/min

Special Features

  • control rod and valve seat made of ceramic or stellite
  • centered control rod, made of steel possible
  • measuring connection for pressure transducer available
  • special materials available
  • flanged directly to the pump
  • ATEX possible
