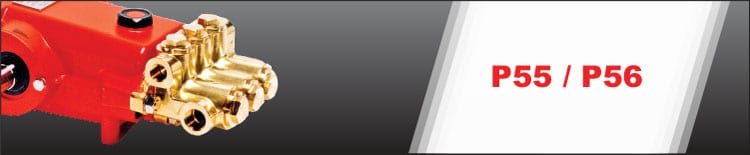

P55/P56 Pumps

Select Category

GPM LPM

PSI Bar

Designed and manufactured in Germany, these medium duty pumps are meant for continuous duty applications. With a power range up to 8 Hp (6 kW), these pumps are used in a variety of applications including car wash, pressure washing, boiler feed, carpet cleaning, sewer cleaning, desalination, and other industrial applications. The flow ranges is up to 7.5 GPM (28 l/min) and the pressure range is up to 2320 PSI (160 Bar). Temperature range is up to 220 °F (105 °C). Fluid end materials range from forged brass, nickel-aluminum-bronze to 316 stainless steel.

Order by:

Order:

Model No.	Maximum Flow	Maximum Pressure	Speed	Power Consumption
P55-5100	3.9 GPM 14.7 L/min	2320 PSI 160 bar	1420 RPM	3.8 HP 2.9 KW
P55-5121	3.9 GPM 14.7 L/min	1500 PSI 100 bar	1420 RPM	3.9 HP 2.9 KW
P55W	4.9 GPM 18.5 L/min	2320 PSI 160 bar	1420 RPM	7.8 HP 5.8 KW
P56-5100	6.1 GPM 23.1 L/min	1900 PSI 130 bar	1420 RPM	7.9 HP 5.9 KW
P56W	6.1 GPM 23.1 L/min	1900 PSI 130 bar	1420 RPM	7.9 HP 5.9 KW
P56W-0011	6.1 GPM 23.1 L/min	1900 PSI 130 bar	1420 RPM	7.9 HP 5.9 KW
P56W-0021	6.1 GPM 23.1 L/min	1900 PSI 130 bar	1420 RPM	7.9 HP 5.9 KW
P56W-0121	6.1 GPM 23.1 L/min	1900 PSI 130 bar	1420 RPM	7.9 HP 5.9 KW
