Featured Image for High Temperature Pumps

While all pumps can handle a certain degree of high temperature, some pumps are specifically designed to withstand the extra high temperature found in some fluid solutions in applications, such as carpet cleaning, boiler feed, hot-water pressure washers and other industrial high temperature applications. These pumps have a flow range up to 42 GPM (160 L/min). Two types of high temperature pumps are available, namely 195 °F (95 °C) and 220 °F (105 °C) versions. In general, many of Giant’s standard pumps can operate with high temperature fluids, so other possibilities exist beyond those listed in this section.

Image Model No. Maximum Flow Maximum Pressure Speed Power Consumption
featured image for P230-0030 1.1 GPM 4.2 L/min 2000 PSI 140 bar 1750 RPM 2.5 HP 1.9 KW
featured image for P221-0030 2.3 GPM 8.9 L/min 2000 PSI 145 bar 1750 RPM 2.5 HP 1.9 KW
featured image for P46HT 2.7 GPM 9.3 L/min 870 PSI 60 bar 900 RPM 1.6 HP 1.2 KW

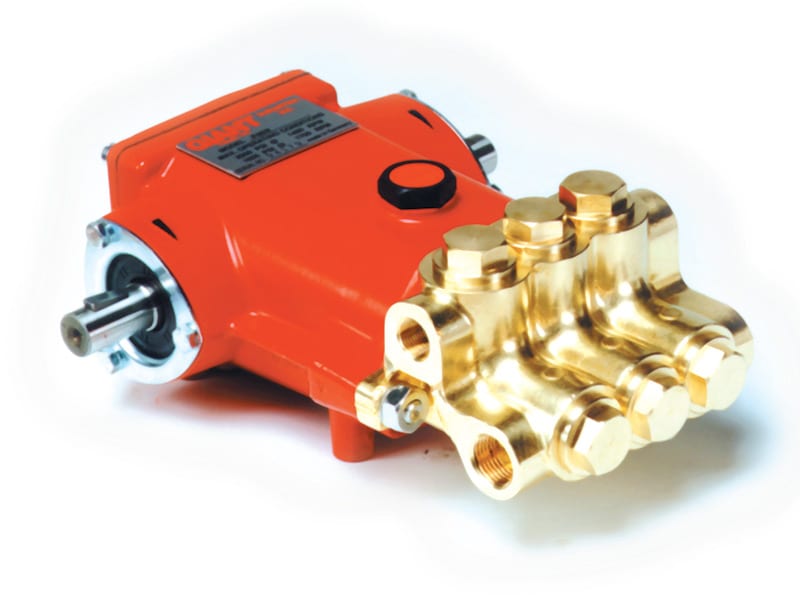

featured image for P46W-HK 3.9 GPM 14.7 L/min 2200 PSI 150 bar 1420 RPM 5.9 HP 4.4 KW
featured image for P219-0030 4.2 GPM 15.9 L/min 2000 PSI 145 bar 1750 RPM 2.5 HP 1.9 KW
featured image for P220-0030 4.7 GPM 17.8 L/min 2000 PSI 140 bar 1750 RPM 2.5 HP 1.9 KW
featured image for SP200HT 6.1 GPM 23 L/min 870 PSI 60 bar 900 RPM 4.0 HP 3.0 KW
featured image for P56HTK 6.1 GPM 23.1 L/min 1900 PSI 130 bar 1420 RPM 7.9 HP 5.9 KW
featured image for P56W-HK 6.1 GPM 23.1 L/min 1900 PSI 130 bar 1420 RPM 7.9 HP 5.9 KW
featured image for P56HT 6.2 GPM 23..1 L/min 870 PSI 60 bar 750 RPM 1.9 HP 1.4 KW
featured image for SP100HT 7.1 GPM 26.9 L/min 870 PSI 60 bar 900 RPM 4.7 HP 3.5 KW
featured image for SP100HTK 7.1 GPM 26.9 L/min 870 PSI 60 bar 900 RPM 4.7 HP 3.5 KW
featured image for MP4130HT 10.5 GPM 39.7 L/min 1160 PSI 80 bar 750 RPM 8.5 HP 6.3 KW
featured image for SP100HK 11.2 GPM 42.5 L/min 1885 PSI 130 bar 1420 RPM 14.6 HP 10.9 KW
featured image for MP4135HTC 12.2 GPM 46.2 L/min 1160 PSI 80 bar 750 RPM 9.8 HP 7.3 KW
featured image for MP4126HT 12.2 GPM 46.2 L/min 1160 PSI 80 bar 750 RPM 9.8 HP 7.3 KW
featured image for MP4130HK 15.4 GPM 58.2 L/min 1600 PSI 110 bar 1100 RPM 15.9 HP 11.9 KW
featured image for LP121HTC 17.7 GPM 66.6 L/min 1160 PSI 80 bar 570 RPM 14.6 HP 10.9 KW
featured image for LP121HT 17.7 GPM 66.6 L/min 1160 PSI 80 bar 570 RPM 14.6 HP 10.9 KW
featured image for LP121-4000HT 17.7 GPM 66.8 L/min 1160 PSI 80 bar 570 RPM 14.1 HP 10.5 KW
featured image for LP121-4000HTC 17.7 GPM 66.8 L/min 1160 PSI 80 bar 570 RPM 14.1 HP 10.5 KW
featured image for GP7142-4000HTC 25.1 GPM 95 L/min 1160 PSI 80 bar 460 RPM 20.1 HP 15 KW
featured image for GP7142HTC 25.1 GPM 95 L/min 1160 PSI 80 bar 460 RPM
featured image for GP7155HTC 42.4 GPM 160.3 L/min 1160 PSI 80 bar 460 RPM 33.8 HP 25.2 KW
