A German-made reciprocating triplex plunger pump for high temperature applications.

Features:
Aluminum crankcase with sight glass and vented dipstick; forged, through-hardened, ground and polished crankshaft; bronze connecting rods; hardened stainless steel plunger bases; solid ceramic plungers; high temperature nitrile seals (with fabric reinforcing); stainless steel valves and forged brass manifold.

WARNING: This product might contain a chemical known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Specification US Metric
Flow7.1 GPM26.9 L/min
Maximum Discharge Pressure870 PSI60 bar
Crankshaft Speed900 RPM
Power4.7 HP3.5 KW
Flow (High Speed)5.9 GPM22.5 L/min
Maximum Discharge Pressure (High Speed)870 PSI60 bar
Power Consumption (High Speed)3.2 HP2.4 KW
Max Temperature194 °F90 °C
Inlet Port Size(2) 3/4" NPT
Discharge Port Size(2) 1/2" NPT
Plunger Diameter1.02 in.26 mm
Stroke0.79 in.20 mm
Crankshaft RotationTop of Pulley Towards Manifold
Crankshaft MountingEither Side
Weight31.3 lbs.14.2 kg
The repair kits listed to the right are available for this pump. If you need further information about these repair kits, or have questions about other specific parts for your pump, please contact you local Giant distributor or contact Giant customer service.
ITEM# PART# DESCRIPTION Qty.
Plunger Packing Kit – Part #09816
38 06015 O-Ring 3
40 03036 O-Ring 3
42 07332 O-Ring 3
49 07344 O-Ring 1
50 11503 Sleeve 3
50A 11503 Sleeve 3
50B 07336 Sleeve 3
51A 11506 O-Ring 3
Valve Assembly Kit – Part #09592
34 07325-0100 Discharge Spring Retainer 3
34A 07326-0100 Inlet Spring Retainer 3
35 07312-0100 Valve Spring 6
36 07327 Valve Plate 6
37 06014 Valve Seat 6
38 06015 O-Ring, Valve Seat 6
40 03036 O-Ring, Inlet Valve Retainer 3
42 07332 O-Ring, Inlet Plug 3
44 07214 O-Ring, Discharge Plug 3

Horsepower Specifications

RPM GPM GPH 200 PSI 400 PSI 600 PSI 900 PSI
250 1.69 101.67 0.23 0.47 0.70 1.05
500 3.39 203.33 0.47 0.93 1.40 2.10
750 5.08 305.00 0.70 1.40 2.10 3.16
900 6.10 366.00 0.84 1.68 2.52 3.79

Images Open in new Window/Tab

  • Dimensional Drawing (Side) Open

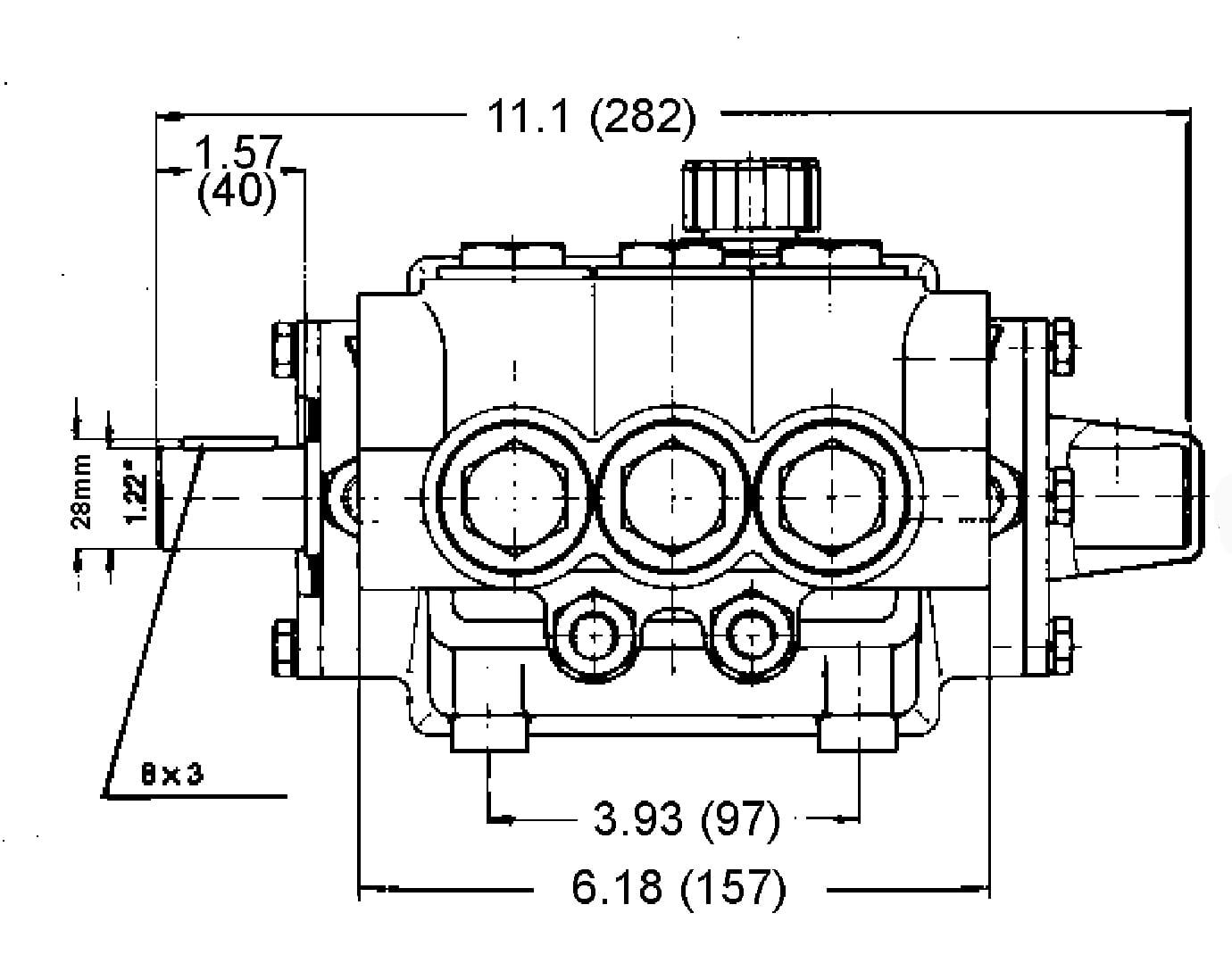

  • Dimensional Drawing (Front) Open
  • SP100HTK Exploded View
  • SP100HTK Parts List

Literature

Documents open in new window/tab.

  • Pump Assembly Instructions
  • Giant Industries Limited Warranty
  • SP100HTK Installation Instructions
  • SP100HTK Repair Instructions
  • Troubleshooting Guide

Sample Pump
