Featured Image for K100000-5G

Large pump with a big punch – 1340 HP (1,000 kW)

Capable of cavitation-free pumping with high volume and high pressure

This 5-plunger pump is an extremely powerful pump.  The quintuplex design gives one the ability to create a system that does not always require a boost pump.  The special design allows for large flows without cavitation.  Similar to the smaller K55000-5G, it is used for large jetting or hydraulic applications. A particularly useful application is a high-end pump for mining jobs; as a workhorse in water hydraulics and in steelworks, it is extremely reliable for critical jobs.  In addition, it is used in large systems in the oil and gas industry. The gearbox comes standard with force-fed lubrication and oil cooler, which enables the user the ability to run the pump continuously.

WARNING: This product might contain a chemical known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Specification US Metric
Minimum Flow30.9 GPM117 L/min
Maximum Flow919.9 GPM3482 L/min
Minimum Pressure1378 PSI95 bar
Maximum Pressure50760 PSI3500 bar
Speed440 RPM
Power Consumption1341 BHP1000 kW

Horsepower Specifications

Images Open in new Window/Tab

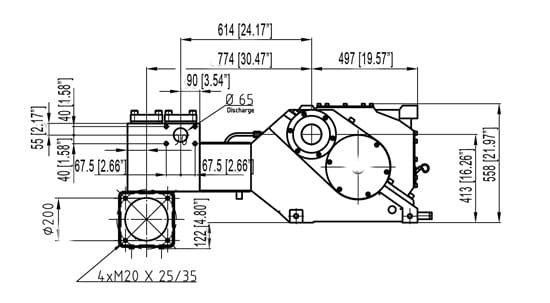

  • Dimensional Drawing (Side) Open

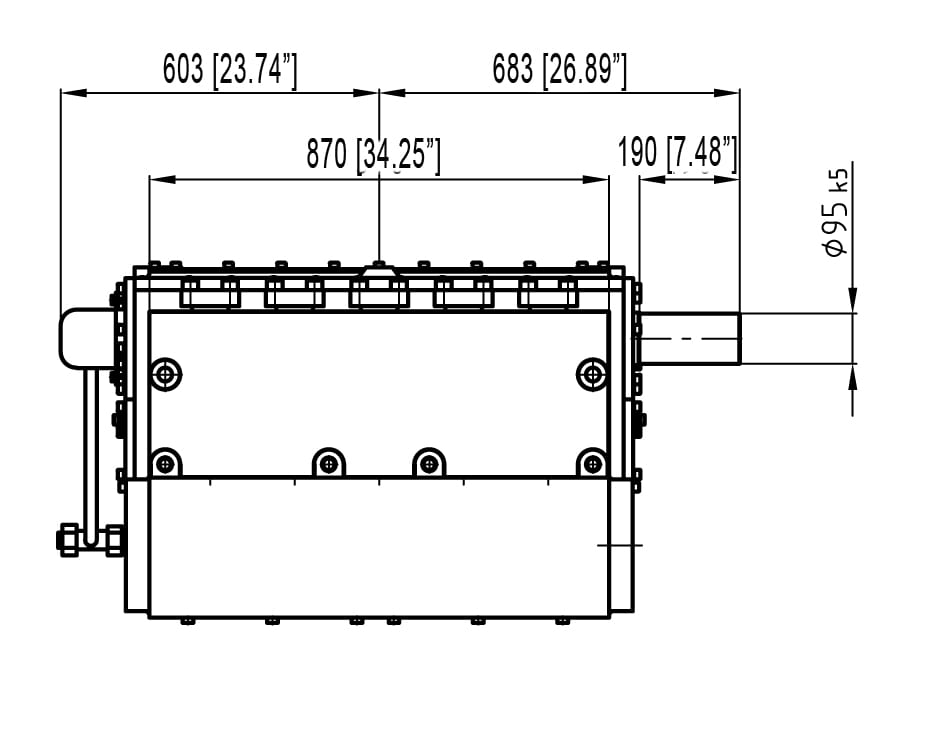

  • Dimensional Drawing (Front) Open
  • K 100000-5G Data

Literature

Documents open in new window/tab.

  • K 100000-5G Literature
