Featured Image for K150000-5G

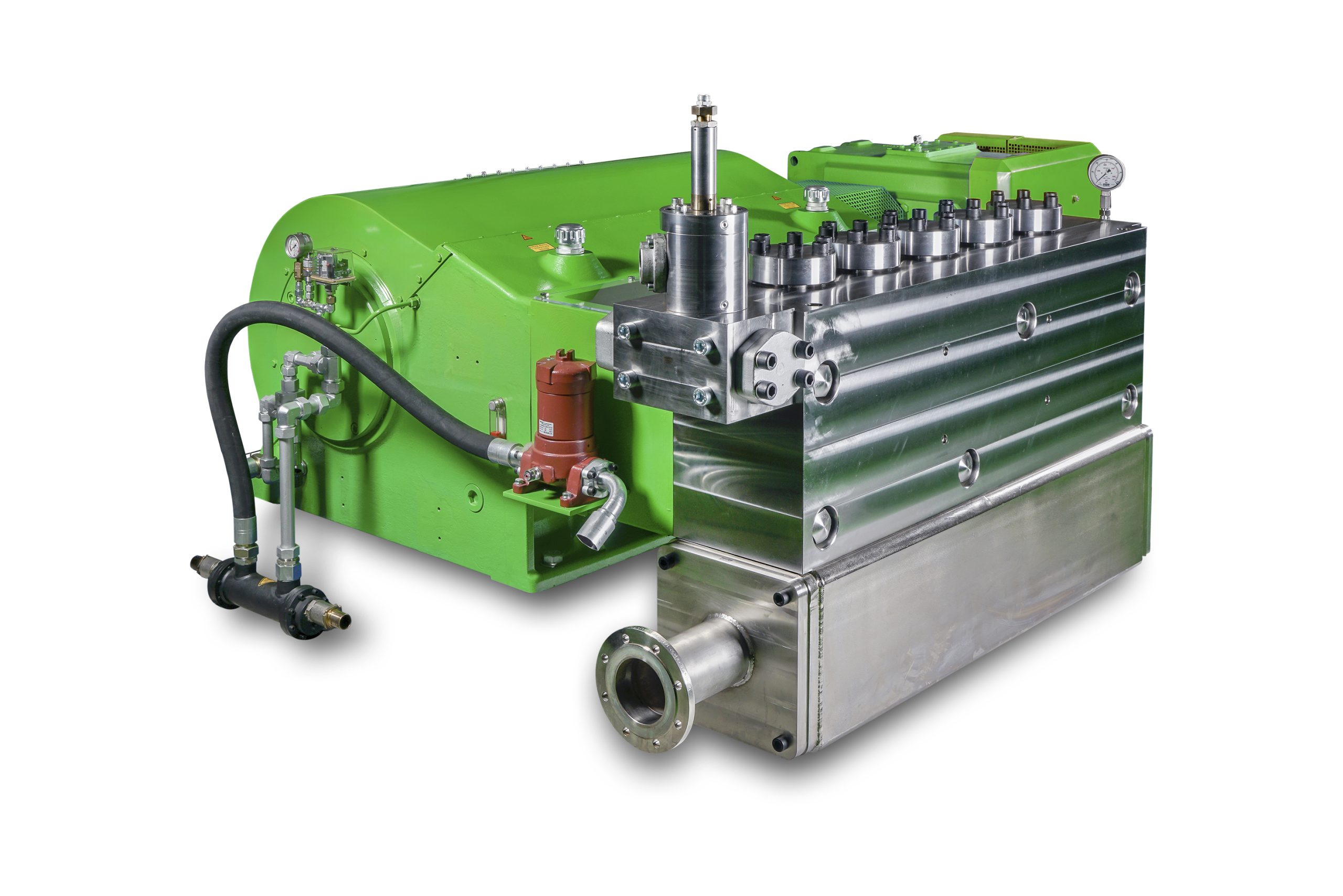

Very large pump – with 2011 HP (1,500 kW) of capability

Largest volume pump that is available with quintuplex design

An extremely powerful pump that is available from Kamat has the capability of an input power of 2011 HP (1,500 kW).  The K150000-5G high-pressure pump is a five-cylinder pump, that can also be operated without inlet boost pressure.  With its special design, it’s even possible to run the pump with very high flow and no cavitation.  The pump can be used in a variety of applications including water hydraulics, steel processing and brine/saltwater disposal wells in the oil and gas industry. The standard gearbox with external oil forced-fed lubrication and oil cooler provides the user with the ability to run the pump on a continuous basis.

WARNING: This product might contain a chemical known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Specification US Metric
Minimum Flow49.4 GPM187 L/min
Maximum Flow1235.5 GPM4677 L/min
Minimum Pressure1233 PSI85 bar
Maximum Pressure50764 PSI3500 bar
Speed320 RPM
Power Consumption2012 BHP1500 kW

Horsepower Specifications

Images Open in new Window/Tab

  • K150000-5G Performance Data

Literature

Documents open in new window/tab.

  • K150000-5G Literature

Sample Pump
