Featured Image for K11000-3G

With 10% more power, clean larger surfaces in a variety of operations

147 HP (100 kW) High-Pressure Pump: Cleaning for intermittent duty applications

If intermittent duty is needed, the K11000-3G is a good choice.  This KAMAT high-pressure series is run with simple splash lubrication rather than oil-pressure lubrication.  Therefore, the K 11000-3G series is suited for non-continuous work applications; however, it is very rugged. Typical jobs include industrial cleaning and jetting. A distinct advantage of this series is the modular construction design, which enables a simple conversion of the pump to different operating pressures; this is accomplished by the simple exchange of conversion kits with different plunger sizes.  Finally, it is available in with ATEX compliance standards.

WARNING: This product might contain a chemical known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Specification US Metric
Minimum Flow5.6 GPM21 L/min
Maximum Flow119.9 GPM454 L/min
Minimum Pressure1015 PSI70 bar
Maximum Pressure40000 PSI2760 bar
Speed435 RPM
Power Consumption147 BHP110 kW

Horsepower Specifications

Images Open in new Window/Tab

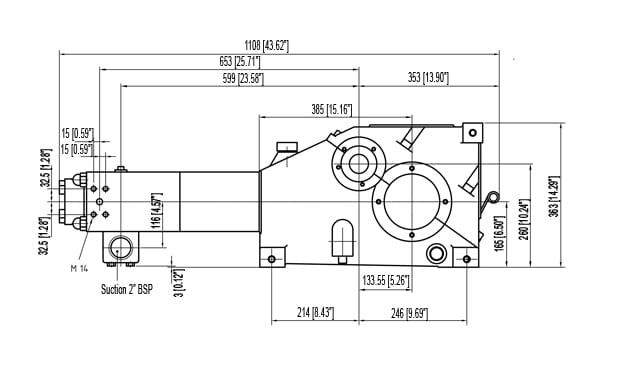

  • Dimensional Drawing (Side) Open

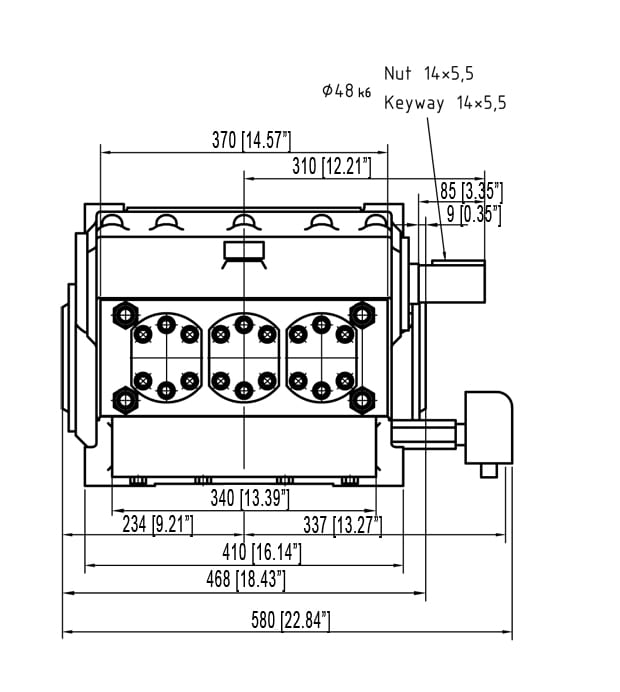

  • Dimensional Drawing (Front) Open

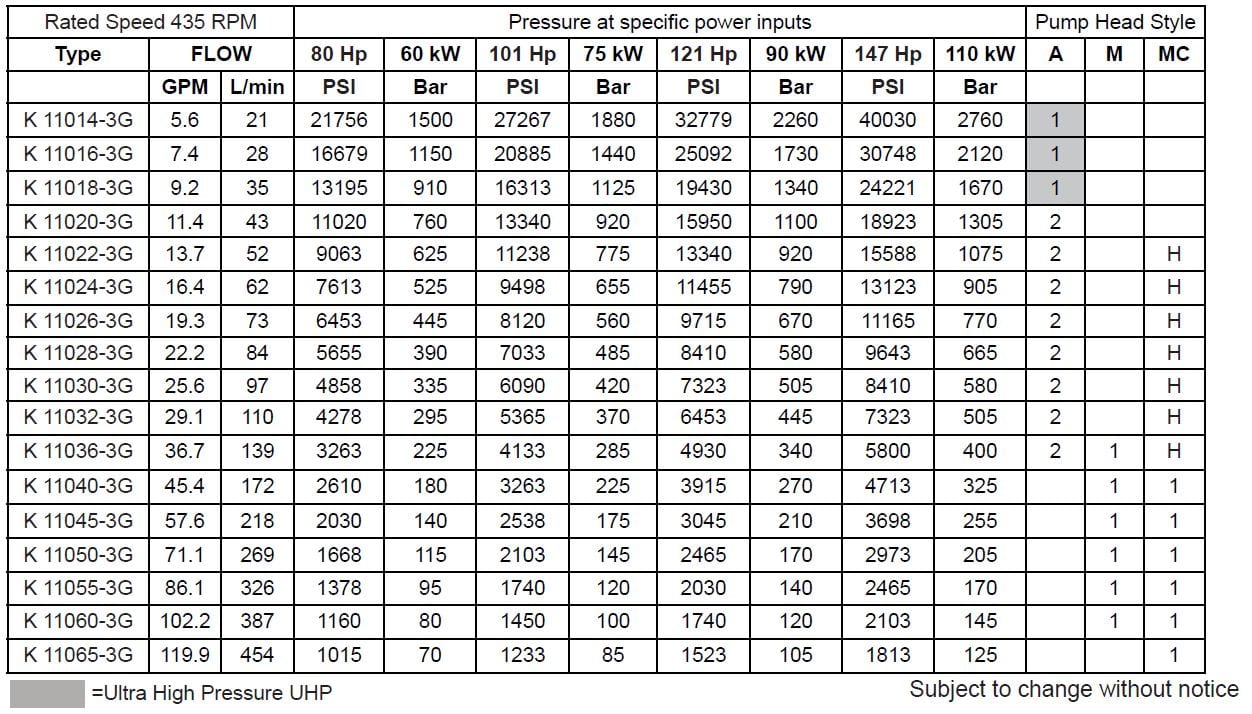

  • K 11000-3G Data

Literature

Documents open in new window/tab.

  • K 11000-3G Literature
