Featured Image for K18000 – 3G
  • Gear with force-fed lubrication
  • Cycle-stress-free pumphead in stainless steel

WARNING: This product might contain a chemical known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to

Specification US Metric
Minimum Flow6.3 GPM24 L/min
Maximum Flow137.9 GPM522 L/min
Minimum Pressure1595 PSI110 bar
Maximum Pressure43650 PSI3010 bar
Speed500 RPM
Power Consumption241 BHP180 kW

Horsepower Specifications

Images Open in new Window/Tab

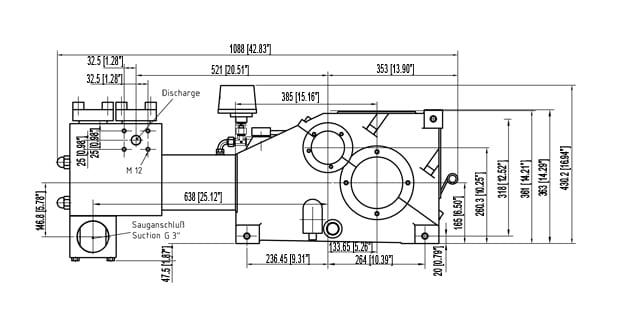

  • Dimensional Drawing (Side) Open

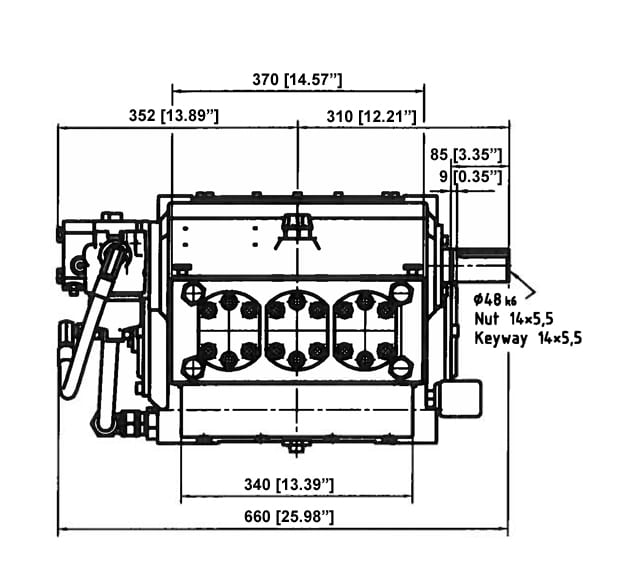

  • Dimensional Drawing (Front) Open
  • K 18000-3G Data


Documents open in new window/tab.

  • K 18000-3G Literature
