Featured Image for K25000-3G

Ideal pump for Jetting, Brine/Salt-Water Disposal or Hydraulic-Applications

Powerful 335 HP (250 kW) high-pressure pump for 24/7 operation

The K 25000-3G series is used in hundreds of pump stations around the world.  This series provides high-pressure in water-hydraulic mining applications.  The standard 335 HP (250 kW) gear end comes standard with forced lubrication, as well as optional oil cooler.  This high-quality pump represents the ideal solution for 27/7 mining requirements.  While it is generally suitable for hydraulic applications, jetting and process technology, the different pump heads can be equipped for different operating pressures and pumped fluids. Capable of handling liquids with a viscosity of up to 2,000 mPas, this series can also successfully pump fluids at a temperature of up to 392 °F (200 °C).

WARNING: This product might contain a chemical known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Specification US Metric
Minimum Flow10.8 GPM41 L/min
Maximum Flow303.3 GPM1148 L/min
Minimum Pressure870 PSI60 bar
Maximum Pressure46195 PSI3185 bar
Speed450 RPM
Power Consumption335 BHP250 kW

Horsepower Specifications

Images Open in new Window/Tab

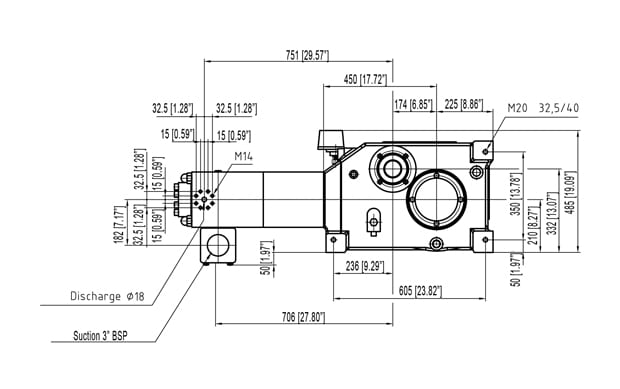

  • Dimensional Drawing (Side) Open
  • Dimensional Drawing (Front) Open
  • K 25000-3G Data

Literature

Documents open in new window/tab.

  • K 25000-3G Literature
