Featured Image for K9000-3G

Cleaning small surfaces with a powerful pump rated to 121 HP (90 kW)

121 HP (90 kW) High-Pressure Pump for smaller industrial jobs

These pumps are used in a variety of relatively small sized applications in in a variety of industries, such as industrial cleaning and jetting.  The pumps can readily pump special fluids, such as sea water, glycol, methanol or oils. At 121 HP (90 kW), it is a compact pump with classic KAMAT modular component system which enables the pump to be simply configured for different performance needs.  With relatively few parts, the maintenance of the K 9000-3G pump is simple and reliability is increased.   The K 9000-3G is the smallest pump with an integrated gear reduction-ratio.

Some of the common applications for this pump include surface cleaning (especially for compact areas), and general process technology. With the different pump heads in the KAMAT modular system, it’s possible to pump different pumped media, such as fluids with temperatures up to 392 °F (200 °C).

WARNING: This product might contain a chemical known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Specification US Metric
Minimum Flow3.4 GPM13 L/min
Maximum Flow74.8 GPM283 L/min
Minimum Pressure1233 PSI85 bar
Maximum Pressure45543 PSI3140 bar
Speed530 RPM
Power Consumption121 BHP90 kW

Horsepower Specifications

Images Open in new Window/Tab

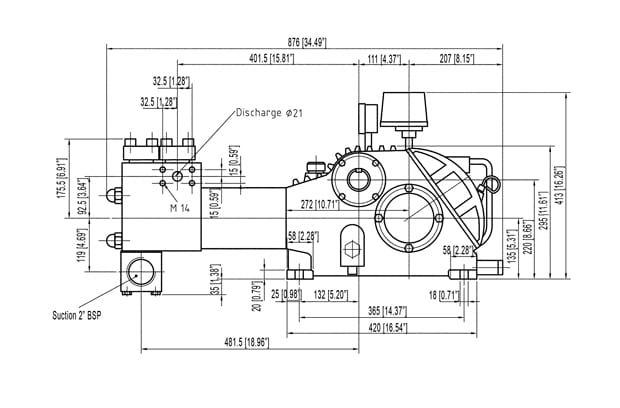

  • Dimensional Drawing (Side) Open

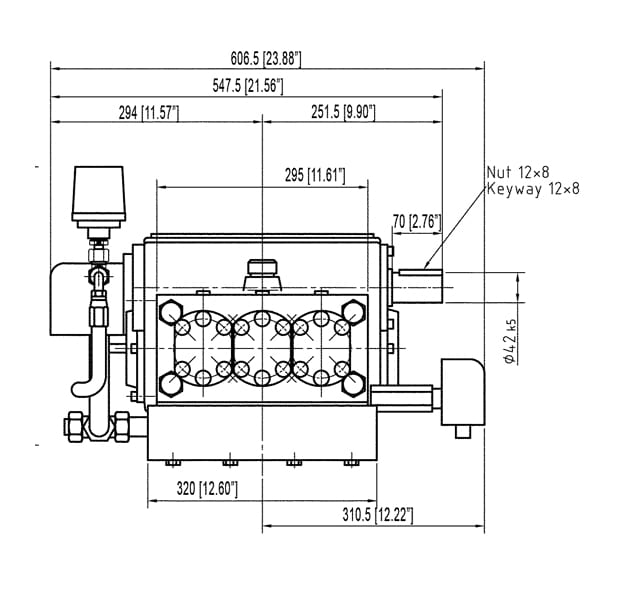

  • Dimensional Drawing (Front) Open

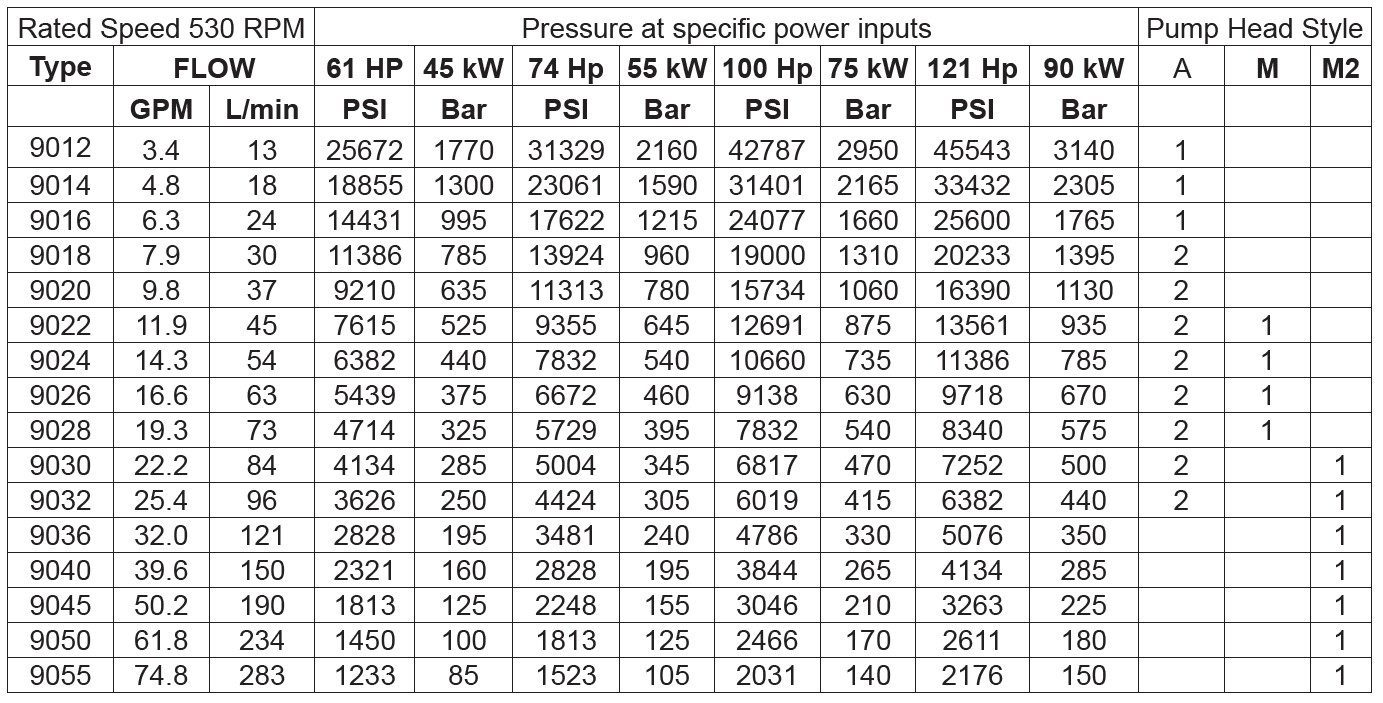

  • K 9000 Data

Literature

Documents open in new window/tab.

  • K 9000 Literature

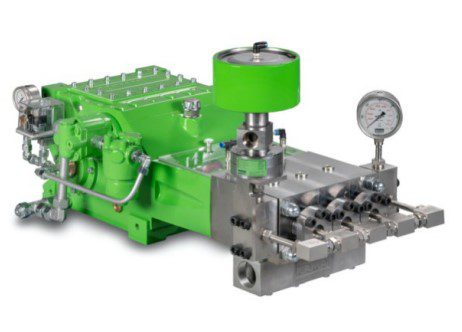

Sample Pump
