Featured Image for GP7545GBHS

WARNING: This product might contain a chemical known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Specification US Metric
Flow55.5 GPM210 L/min
Maximum Discharge Pressure3000 PSI207 bar
Crankshaft Speed900 RPM
Power111 HP82.5 KW
Max Temperature86 °F30 °C
Inlet Port Size(2) 2-1/4" NPT
Discharge Port Size(2) 1-1/4" NPT
Plunger Diameter1.77 in.45 mm
Stroke2.05 in.52 mm
Crankshaft BoreSAE-C Spline 14T 12/24 DP
Crankshaft RotationHydraulic Gear Towards Back of Pump
Crankshaft MountingEither Side
Crankcase Oil Capacity US1.6 gal 6.0 L
Weight469 lbs.213 kg
Manifold Material Nickel-Plated Spheroidal Cast Iron
Crankcase Material Nickel-Plated Spheroidal Cast Iron
Plunger Material Solid Ceramic Oxide
Valve Material Duplex Steel/Plastic Retainer
Seal Material Nitrile with Fabric Reinforcing
The repair kits listed to the right are available for this pump. If you need further information about these repair kits, or have questions about other specific parts for your pump, please contact you local Giant distributor or contact Giant customer service.
ITEM# PART# DESCRIPTION Qty.
Plunger Packing Kit – Part #09603
38A 13156 O-Ring 3
38B 07721 O-Ring 3
39A 07723 Grooved Ring 3
42 07711 V-Sleeve 9
Inlet Valve Kit – Part #09659
51 05594 Inlet Valve Assembly 1
56A 07658 O-Ring 1
56B 07635 Support Ring 1
Large Discharge Valve Kit – Part #09660
52 05600 Discharge Valve Assembly 1
55 05647 Valve Spacer 1
56A 07658 O-Ring 1
56B 07635 Support Ring 1
Small Discharge Valve Kit – Part #09661*
51B 05450 Valve Spring 1
51C 05247 Valve Plate 1
51D 05596 O-Ring 1
52F 05599 O-Ring 1
56A 07658 O-Ring 1
56B 07635 Support Ring 1
Oil Seal Kit – Part #09221
32 07624 Radial Shaft Seal 3
33A 07627 O-Ring 3

*The discharge valve seal (item 52E) can be flipped over and used.  If it is damaged on both sides, order kit # 09660.

Horsepower Specifications

Images Open in new Window/Tab

  • Dimensional Drawing (Side) Open
  • Dimensional Drawing (Front) Open

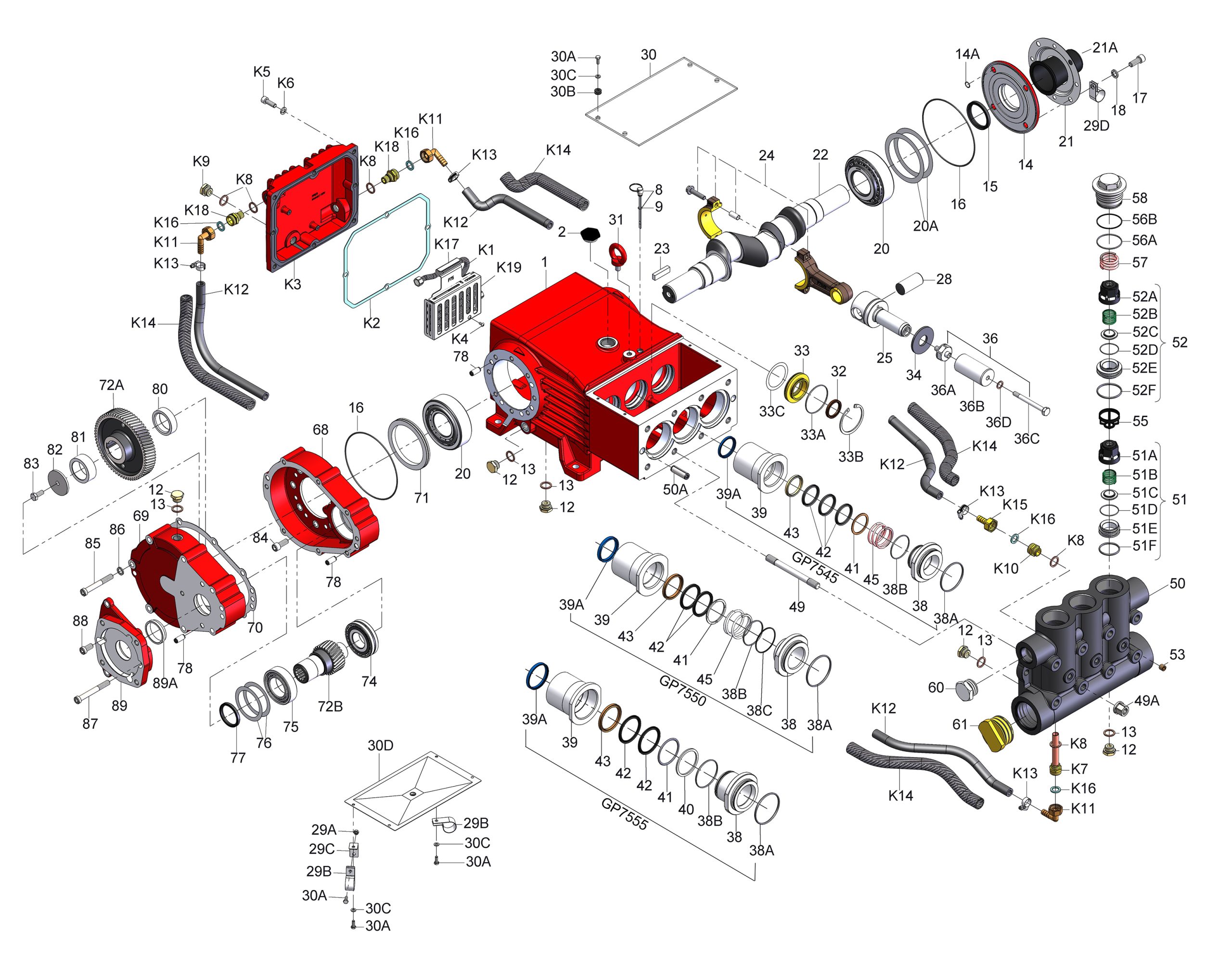

  • GP7545GBHS Parts List

Literature

Documents open in new window/tab.

  • Giant Industries Limited Warranty
  • GP7545GBHS Installation Instructions
  • GP7545GBHS Repair Instructions
  • Troubleshooting Guide
