Pumps that can withstand the corrosive effect of certain types of fluid are classified as corrosive-resistant. A pumps ability to withstand corrosion is based on the type of materials used in the fluid end of the pump. Corrosion-resistant pumps will normally have valve casings made with Nickel-Aluminum-Bronze, AISI 316 stainless steel or Duplex stainless steel. Typical applications for these pumps are reverse osmosis (desalination), brine pumping, waste-water injection, chemical processing, humidification, misting, and degreasing/cleaning for industrial applications. These pumps have a flow range up to 105 GPM (400 L/min). In addition, Kamat’s line of pumps are available with duplex stainless steel, so this increases the range to up to 1000 GPM (4000 L/min).

  Pump Model Maximum Flow Maximum Pressure Speed Power Consumption
P217A-5123 3.6 GPM
13.8 L/min 		2000 PSI
140 bar 		3450 RPM 5.0 BHP
3.7 KW
P230A-5111 1.1 GPM
4.2 L/min 		2000 PSI
140 bar 		1750 RPM 1.5 BHP
1.1 KW
P218A-5111 3.4 GPM
12.8 L/min 		2000 PSI
140 bar 		1750 RPM 5.9 BHP
4.4 KW
P230A-5121 1.1 GPM
4.2 L/min 		2000 PSI
140 bar 		1750 RPM 1.5 BHP
1.1 KW
P218A-5121 3.4 GPM
12.8 L/min 		2000 PSI
140 bar 		1750 RPM 5.9 BHP
4.4 KW
P230A-5123 1.1 GPM
4.2 L/min 		2000 PSI
140 bar 		1750 RPM 1.5 BHP
1.1 KW
P218A-5123 3.4 GPM
12.8 L/min 		2000 PSI
140 bar 		1750 RPM 5.9 BHP
4.4 KW
P420A-5111 12.8 GPM
48.4 L/min 		2200 PSI
150 bar 		1450 RPM 19.2 BHP
14.3 KW
P219A-5111 4.2 GPM
15.9 L/min 		2000 PSI
140 bar 		1750 RPM 7.2 BHP
5.4 KW
P420A-5121 12.8 GPM
48.4 L/min 		2200 PSI
150 bar 		1450 RPM 19.4 BHP
14.5 KW
P219A-5121 4.2 GPM
15.9 L/min 		2000 PSI
140 bar 		1750 RPM 7.2 BHP
5.4 KW
P425-5111 10.7 GPM
40.6 L/min 		2500 PSI
170 bar 		1450 RPM 18.2 BHP
13.6 KW
P219A-5123 4.2 GPM
15.9 L/min 		2000 PSI
140 bar 		1750 RPM 7.2 BHP
5.4 KW
P425-5121 10.7 GPM
40.6 L/min 		2500 PSI
170 bar 		1450 RPM 18.5 BHP
13.8 KW
P220A-5111 4.7 GPM
17.8 L/min 		2000 PSI
140 bar 		1750 RPM 6.7 BHP
5.0 KW
P425-3100 10.6 GPM
40.4 L/min 		2465 PSI
170 bar 		1450 RPM 18.1 BHP
13.5 KW
P220A-5121 4.7 GPM
17.8 L/min 		2000 PSI
140 bar 		1750 RPM 6.7 BHP
5.0 KW
P220A-5123 4.7 GPM
17.8 L/min 		2000 PSI
140 bar 		1750 RPM 6.7 BHP
5.0 KW
P206-5111 0.73 GPM
2.8 L/min 		2000 PSI
140 bar 		1750 RPM 1.1 BHP
0.82 KW
P221A-5111 4.6 GPM
17.6 L/min 		2000 PSI
140 bar 		3450 RPM 6.5 BHP
4.9 KW
P206-5121 0.8 GPM
3.0 L/min 		2000 PSI
140 bar 		1750 RPM 1.1 BHP
0.82 KW
P221A-5121 4.6 GPM
17.6 L/min 		2000 PSI
140 bar 		3450 RPM 6.5 BHP
4.9 KW
P209-5111 1.5 GPM
5.7 L/min 		2000 PSI
140 bar 		1750 RPM 2.07 BHP
1.55 KW
P221A-5123 4.9 GPM
17.6 L/min 		2000 PSI
140 bar 		3450 RPM 6.5 BHP
4.9 KW
P209-5121 1.5 GPM
5.7 L/min 		2000 PSI
140 bar 		1750 RPM 2.07 BHP
1.55 KW
P227A-5111 3.8 GPM
14.4 L/min 		2000 PSI
140 bar 		3540 RPM 5.2 BHP
3.9 KW
P217A-5111 1.8 GPM
7.0 L/min 		2000 PSI
140 bar 		1750 RPM 2.5 BHP
1.9 KW
P227A-5121 3.8 GPM
14.4 L/min 		2000 PSI
140 bar 		3450 RPM 5.2 BHP
3.9 KW
P217A-5121 1.8 GPM
7.0 L/min 		2000 PSI
140 bar 		1750 RPM 2.5 BHP
1.9 KW
P227A-5123 3.8 GPM
14.4 L/min 		2000 PSI
140 bar 		3450 RPM 5.2 BHP
3.9 KW
GP5132-5100 Null GPM
Null L/min 		PSI
Null bar 		RPM BHP
KW

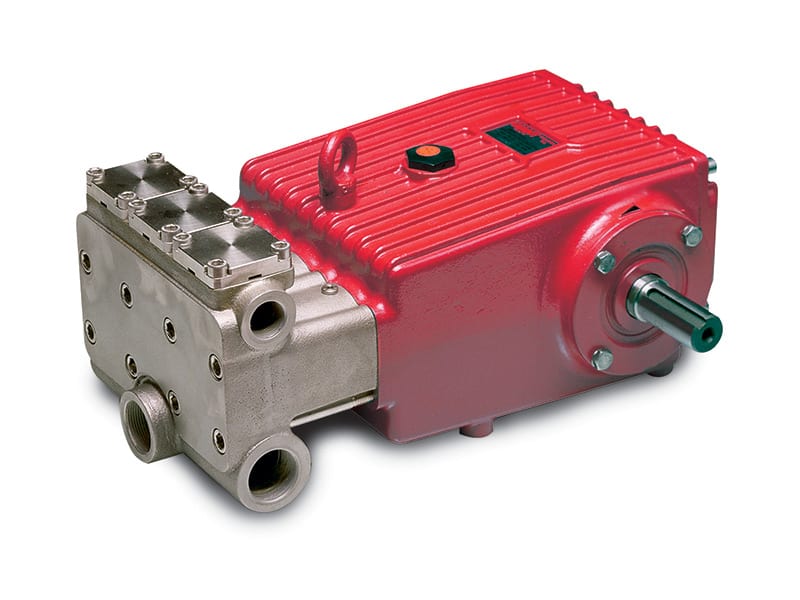

GP5136-5100 33.8 GPM
127.8 L/min 		2320 PSI
160 bar 		910 RPM 54.1 BHP
40.3 KW
GP5145-5100 43.5 GPM
164.6 L/min 		1450 PSI
100 bar 		750 RPM 43.5 BHP
32.4 KW
GP7142-5100 Null GPM
Null L/min 		PSI
Null bar 		RPM BHP
KW
GP7155-3100 65.8 GPM
250 L/min 		1500 PSI
100 bar 		700 RPM 65.8 BHP
49.1 KW
GP7155-5100 Null GPM
Null L/min 		PSI
Null bar 		RPM BHP
KW
GP8045-3100 Null GPM
Null L/min 		PSI
Null bar 		RPM BHP
KW
GP8045-5100 Null GPM
Null L/min 		PSI
Null bar 		RPM BHP
KW
GP8048-3100 Null GPM
Null L/min 		PSI
Null bar 		RPM BHP
KW
GP8048-5100 56.8 GPM
215 L/min 		3770 PSI
260 bar 		580 RPM 147.7 BHP
110.1 KW
LP121A-5100 32.5 GPM
123.1 L/min 		1740 PSI
120 bar 		1000 RPM 39.3 BHP
29.3 KW
LP122A-3100 35.6 GPM
134.7 L/min 		1300 PSI
90 bar 		800 RPM 32.1 BHP
23.9 KW
LP122A-5100 35.6 GPM
134.7 L/min 		1300 PSI
90 bar 		800 RPM 32.1 BHP
23.9 KW

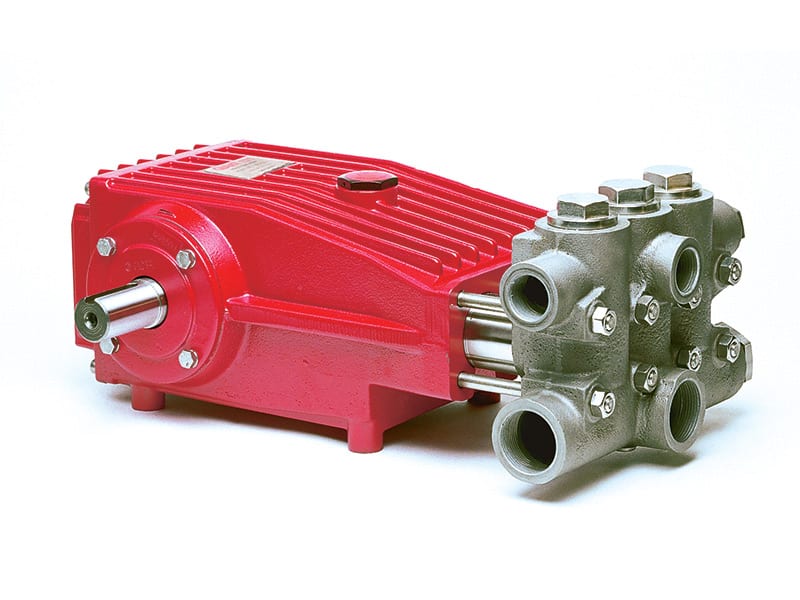

LP200-5100 19.0 GPM
72.1 L/min 		2900 PSI
200 bar 		1000 RPM 38.3 BHP
28.6 KW
LP250-3100 25.7 GPM
97.3 L/min 		2030 PSI
140 bar 		1000 RPM 36.2 BHP
27.0 KW
LP250-5100 25.7 GPM
97.3 L/min 		2030 PSI
140 bar 		1000 RPM 36.2 BHP
27.0 KW

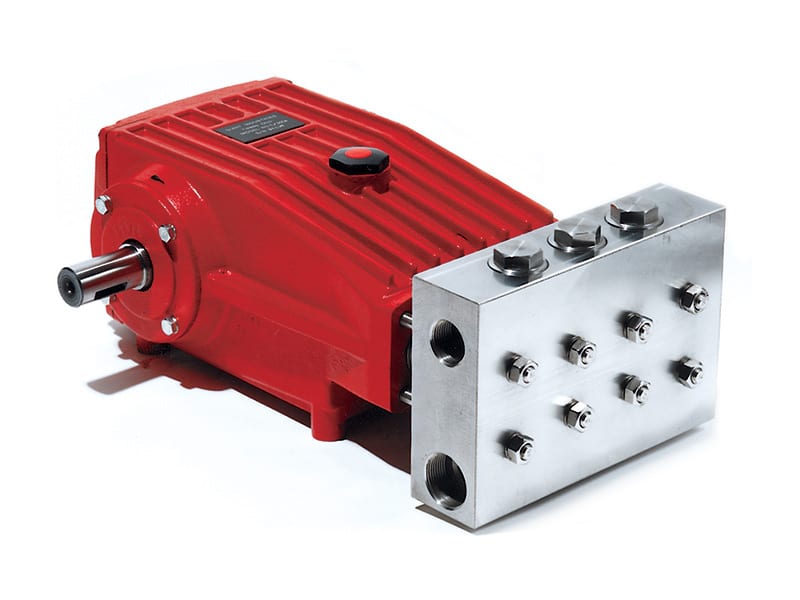

LP301A-5100 14.2 GPM
53.6 L/min 		3900 PSI
270 bar 		1000 RPM 39.2 BHP
29.2 KW
LP600-5100 9.8 GPM
37.0 L/min 		5800 PSI
400 bar 		1000 RPM 39.5 BHP
29.5 KW

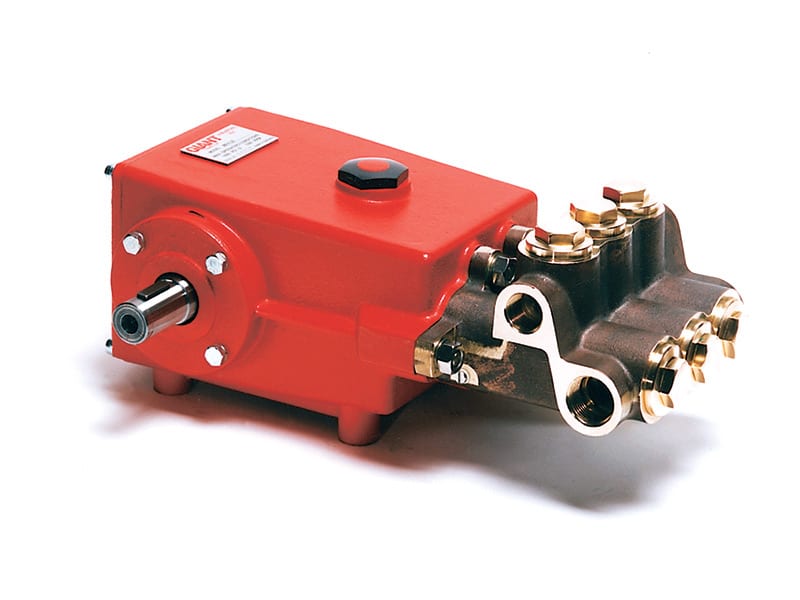

MP4130-3100 15.4 GPM
58.2 L/min 		1600 PSI
110 bar 		1100 RPM 17.0 BHP
12.7 KW
MP4135-3100 17.9 GPM
67.7 L/min 		1600 PSI
110 bar 		1100 RPM 19.8 BHP
14.8 KW
P205-5100 038 GPM
1.4 L/min 		2500 PSI
170 bar 		1750 RPM 0.69 BHP
0.52 KW
P205-5111 0.38 GPM
1.4 L/min 		2500 PSI
170 bar 		1750 RPM 0.69 BHP
0.52 KW
P205-5121 0.38 GPM
1.4 L/min 		2500 PSI
170 bar 		1750 RPM 0.69 BHP
0.52 KW
P205-5180 0.38 GPM
1.4 L/min 		2500 PSI
170 bar 		1750 RPM 0.69 BHP
0.52 KW
P206-5100 0.73 GPM
2.8 L/min 		2000 PSI
140 bar 		1750 RPM 1.1 BHP
0.82 KW
P206-5180 0.73 GPM
2.8 L/min 		2000 PSI
140 bar 		1750 RPM 1.1 BHP
0.82 KW
P209-5100 1.5 GPM
5.7 L/min 		2000 PSI
140 bar 		1750 RPM 2.07 BHP
1.55 KW
P209-5180 1.5 GPM
5.7 L/min 		2000 PSI
140 bar 		1750 RPM 2.07 BHP
1.55 KW
P217A-3100 1.8 GPM
7 L/min 		2000 PSI
140 bar 		1750 RPM 3.1 BHP
2.3 KW
P217A-5100 1.8 GPM
7.0 L/min 		2000 PSI
140 bar 		1750 RPM 2.5 BHP
1.9 KW
P218A-3100 3.4 GPM
12.8 L/min 		2000 PSI
140 bar 		1750 RPM 5.9 BHP
4.4 KW
P218A-5100 3.4 GPM
12.8 L/min 		2000 PSI
140 bar 		1750 RPM 5.9 BHP
4.4 KW
P219A-3100 4.2 GPM
15.9 L/min 		2000 PSI
140 bar 		1750 RPM 7.2 BHP
5.4 KW
P219A-5100 4.2 GPM
15.9 L/min 		2000 PSI
140 bar 		1750 RPM 7.2 BHP
5.4 KW
P220A-3100 4.7 GPM
17.6 L/min 		2000 PSI
140 bar 		1750 RPM 6.7 BHP
5.0 KW
P220A-5100 4.7 GPM
17.8 L/min 		2000 PSI
140 bar 		1750 RPM 6.7 BHP
5.0 KW
P221A-3100 2.3 GPM
8.9 L/min 		2000 PSI
140 bar 		1750 RPM 6.7 BHP
5.0 KW
P221A-5100 2.3 GPM
8.9 L/min 		2000 PSI
140 bar 		1750 RPM 6.7 BHP
5.0 KW
P227A-3100 2.1 GPM
8.0 L/min 		2000 PSI
140 bar 		1750 RPM BHP
KW
P227A-5100 2.1 GPM
8.0 L/min 		2000 PSI
140 bar 		1750 RPM BHP
KW
P230A-3100 1.1 GPM
4.2 L/min 		2000 PSI
140 bar 		1750 RPM 1.9 BHP
1.4 KW
P230A-5100 1.1 GPM
4.2 L/min 		2000 PSI
140 bar 		1750 RPM 1.9 BHP
1.4 KW
P420A-3100 1.8 GPM
7.0 L/min 		2000 PSI
140 bar 		1450 RPM BHP
KW
P420A-5100 12.8 GPM
48.4 L/min 		2175 PSI
150 bar 		1450 RPM 19.2 BHP
14.3 KW
P422-5100 9.9 GPM
37.3 L/min 		2610 PSI
180 bar 		1450 RPM 20.1 BHP
15.0 KW
P423-3100 8.2 GPM
31.1 L/min 		2900 PSI
200 bar 		1450 RPM BHP
KW
P423-5100 8.2 GPM
31.1 L/min 		2900 PSI
200 bar 		1450 RPM BHP
KW
P435-5100 6.6 GPM
25.0 L/min 		3625 PSI
250 bar 		1450 RPM 16.5 BHP
12.3 KW
P425-5100 10.7 GPM
40.4 L/min 		2465 PSI
170 bar 		1450 RPM 18.2 BHP
13.7 KW
P435-3100 6.6 GPM
25 L/min 		3625 PSI
250 bar 		1450 RPM 16.5 BHP
12.3 KW
P450-3100 5.5 GPM
20.8 L/min 		5075 PSI
350 bar 		1450 RPM 19.2 BHP
14.3 KW

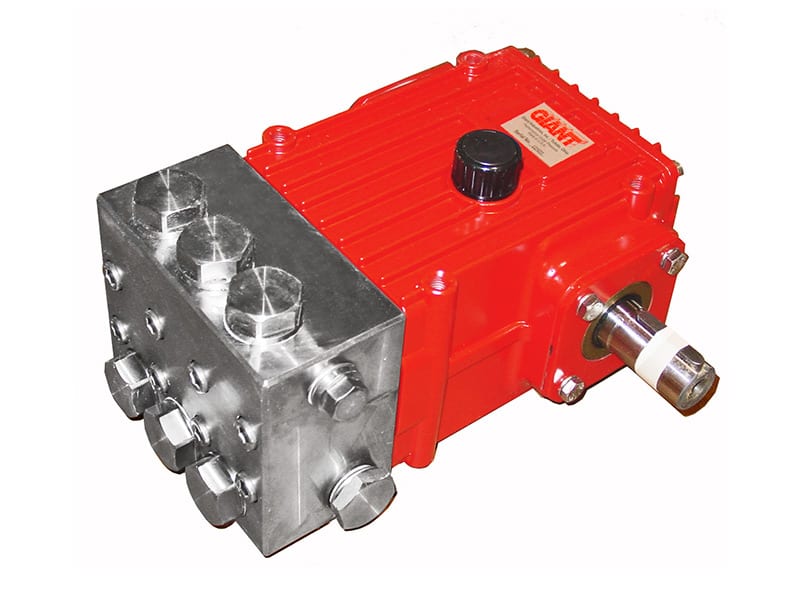

P450-5100 5.5 GPM
20.8 L/min 		5075 PSI
350 bar 		1450 RPM 19.2 BHP
14.3 KW
P55-5100 4.9 GPM
18.5 L/min 		2320 PSI
160 bar 		1420 RPM 7.8 BHP
5.8 KW

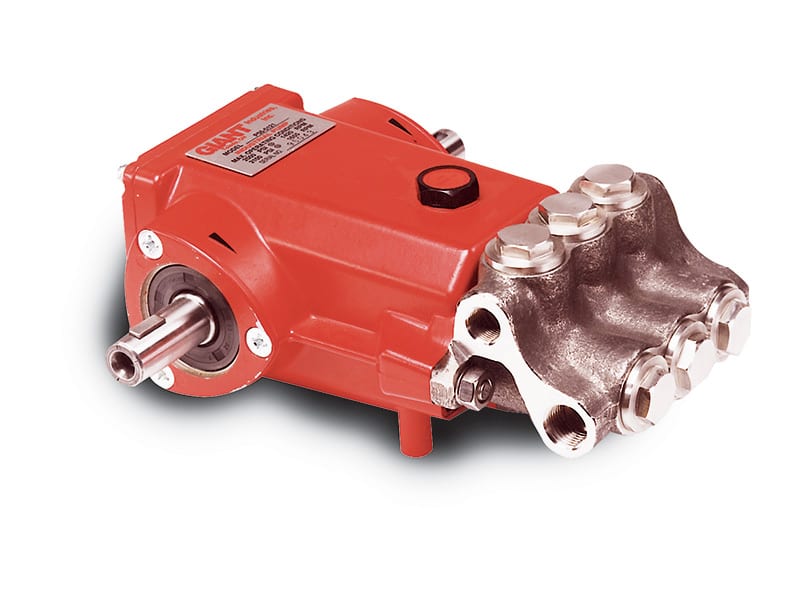

P56-5100 6.1 GPM
23.1 L/min 		1885 PSI
130 bar 		1420 RPM 7.9 BHP
5.9 KW
PUMP CATEGORIES:
Service & Repair

Giant provides service on each pump and accessory that we sell. Many basic repair procedures are covered in the Giant repair manual. For all other questions on service or repair needs please contact your local Giant distributor.
