A German-made triplex plunger positive displacement pump with reciprocating plungers for direct or belt drive applications.
Anodized aluminum crankcase with sight glass and vented dipstick; forged, through-hardened, ground and polished crankshaft; bronze connecting rods; hardened stainless steel plunger bases; solid ceramic plungers; nitrile seals (with fabric reinforcing); stainless steel valves; and 316 stainless steel manifold.
Gearbox and bell housings (to connect to gasoline, diesel, electric or hydraulic drive), couplers (aluminum or Delrin).
WARNING: This product might contain a chemical known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
|Flow||2.1 GPM||8 L/min|
|Maximum Discharge Pressure||2000 PSI||140 bar|
|Crankshaft Speed||1750 RPM|
|Power||2.9 HP||2.2 KW|
|Flow (High Speed)||3.8 GPM||14.4 L/min|
|Maximum Discharge Pressure (High Speed)||2000 PSI||140 bar|
|Power Consumption (High Speed)||5.2 HP||3.9 KW|
|Max Temperature||160 °F||70 °C|
|Inlet Port Size||(2) 1/2" BSP|
|Discharge Port Size||(2) 3/8" BSP|
|Plunger Diameter||0.71 in.||18 mm|
|Stroke||0.25 in.||6.3 mm|
|Maximum Inlet Pressure||90 PSI||6.2 bar|

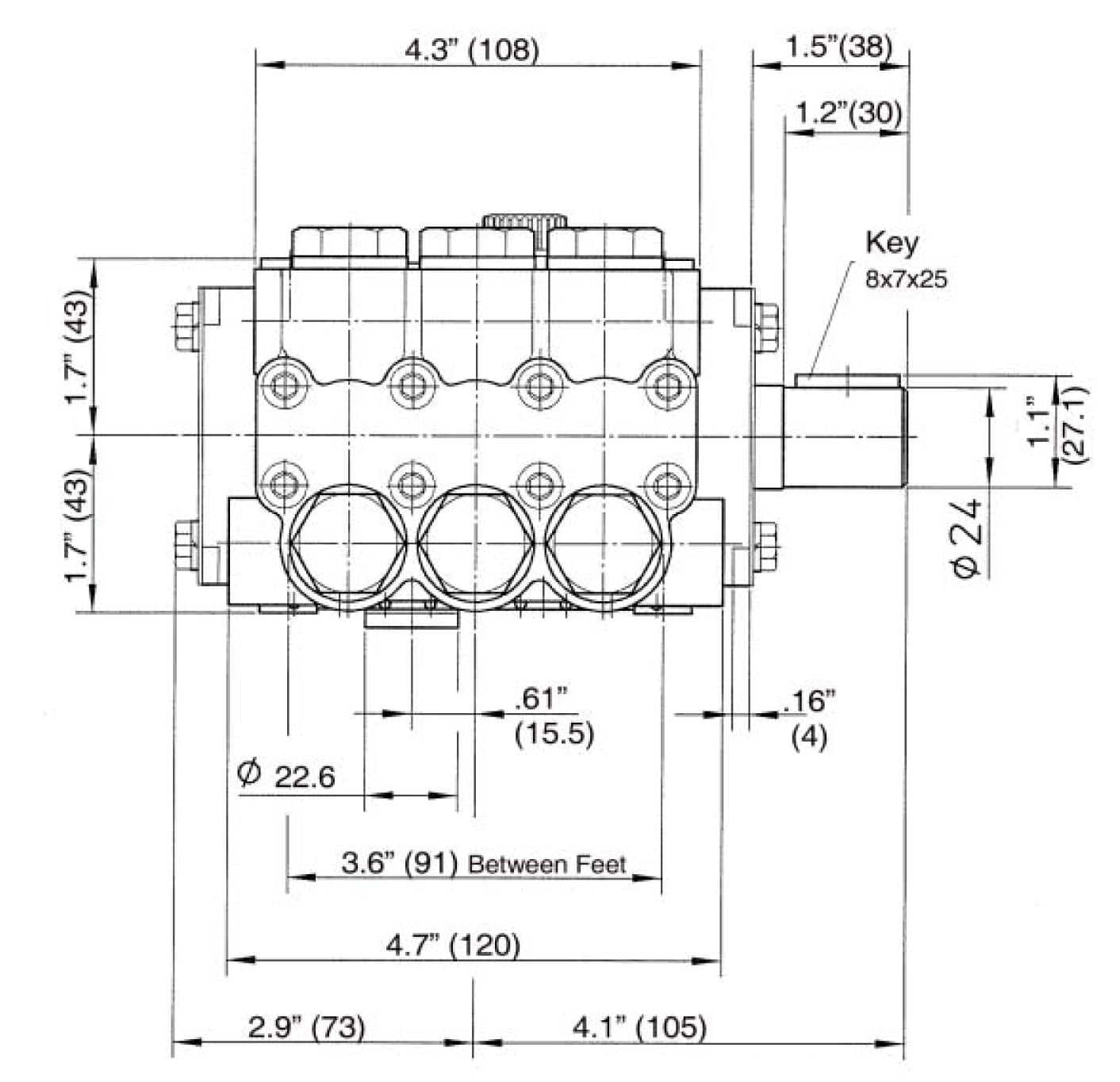

|Crankshaft Diameter||24 mm|
|Crankshaft Rotation||Top of Pulley Towards Manifold|
|Key Width||0.31 in.||8 mm|
|Crankshaft Mounting||Either Side|
|Crankcase Oil Capacity US||8.1 fl. oz.||0.24 L|
|Weight||13.25 lbs.||6 kg|
|Manifold Material||316 Stainless Steel|
|Plunger Material||Solid Ceramic Oxide|
|Valve Material||316TI Stainless Steel|
|Seal Material||Nitrile with Fabric Reinforcing|
|Plunger Packing Kit – Part #09756|
|23A||08087||Grooved Seal Ring||3|
|Valve Assembly Kit – Part #09139A-0023|
|Oil Seal Kit – Part #09144|
|RPM||GPM||1000 PSI||1500 PSI||2000 PSI|
