A German-made triplex plunger positive displacement pump with reciprocating plungers for belt drive applications.
Spheroidal cast iron crankcase with sight glass and vented dipstick; forged, through-hardened, ground and polished crankshaft; bronze connecting rods; hardened stainless steel plunger bases; solid ceramic plungers; nitrile seals (with fabric reinforcing); stainless steel valves and nickel-aluminum-bronze manifold.
WARNING: This product might contain a chemical known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
|Max Flow (Continuous)||25.7 GPM||97.3 L/min|
|Max Discharge Pressure (Continuous)||2030 PSI||140 bar|
|Max Speed (Continuous)||1000 RPM|
|Inlet Pressure||90 PSI||6.2 bar|
|Plunger Diameter||1.30″||32 mm|
|Max Temp||86 °F||30 °C|
|Crankshaft Diameter||1.38″||42 mm|
|Crankcase Capacity||116 fl. oz.||3.43 L|
|Weight||126 lbs.||57 kg|
|NPSHR||25.6 Ft.-Head||7.8 mWs|
|Inlet Ports||(2) 1-1/2″ BSP|
|Discharge Ports||(2) 1″ BSP|
|Shaft Rotation||Top of Pulley Towards Manifold|
|Shaft Mounting||Either Side|
|Key Component Material|
|Manifold||Nickel Aluminum Bronze|
|Plungers||Solid Ceramic Oxide|
|Seals||Nitrile With Fabric Reinforcing|
|Gear End||Spheroidal Cast Iron|
|RPM||GPM||600 PSI||800 PSI||1000 PSI||1600 PSI||2030 PSI|
The ratings shown are the power requirements for the pump. Gas engine power outputs must be approximately twice the pump power requirements shown above.
We recommend a 1.15 service factor be specified when selecting an electric motor as the power source. To compute specific pump horsepower requirements use the following formulas:
Electric HP = (GPM X PSI)/1450
Gas HP = (GPM X PSI)/1100
*Engine power varies based on horizontal or vertical orientation, as well as by makes and models from each manufacturer.

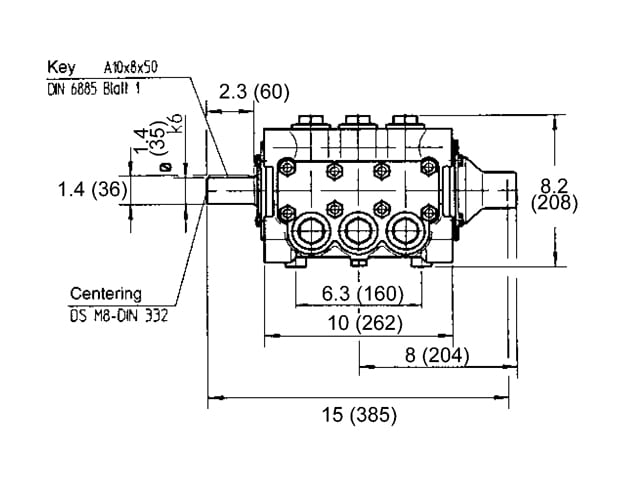

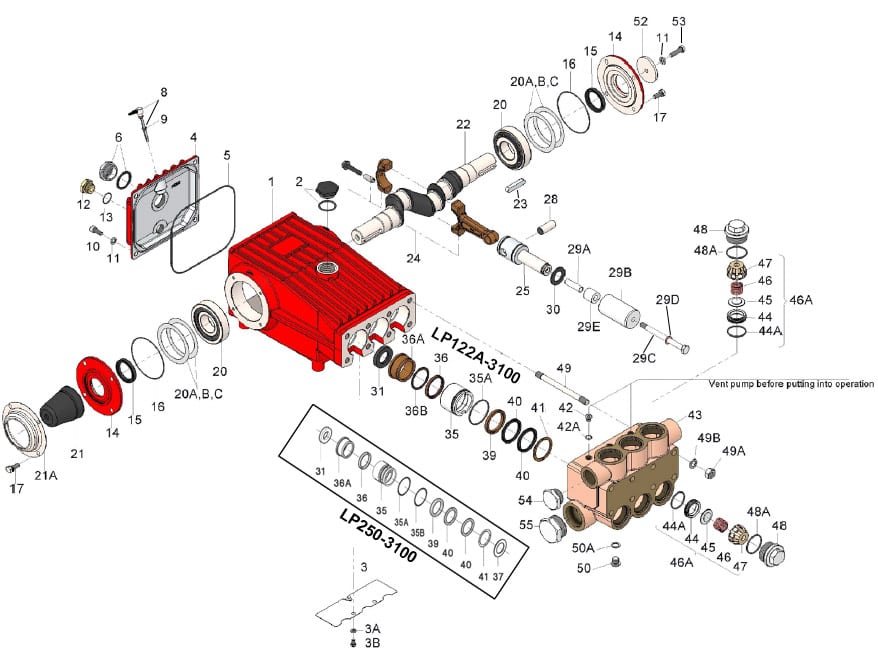

|Plunger Packing Kit – Part #09739|
|Valve Assembly Kit – Part #09136-0100|
|Oil Seal Kit – Part #09577|
|31||07133||Radial Shaft Seal||3|
Repair Kits Available
The repair kits listed to the right are available for this pump. If you need further information about these repair kits, or have questions about other specific parts for your pump, please contact you local Giant distributor or contact Giant customer service.
