GP7136

A German-made reciprocating triplex plunger pump.

Features:
Spheroidal cast iron crankcase with sight glass and vented dipstick; forged, through-hardened, ground and polished crankshaft; bronze connecting rods; hardened stainless steel plunger bases; solid ceramic plungers; nitrile seals with fabric reinforcing; stainless steel valves and machined stainless steel manifold.

  • GP7136 Exploded View
  • GP7136 Parts List
  • GP7136 Torque Specifications
  • Giant Industries Limited Warranty
  • GP7136 Installation Instructions
  • GP7136 Repair Instructions
  • Troubleshooting Guide

SPECIFICATIONS

U.S. Metric
Max Flow (Intermittent) 28.3 GPM 107.0 L/min
Max Discharge Pressure (Intermittent) 3625 PSI 250 bar
Max Speed (Intermittent) 700 RPM
Inlet Pressure 145 PSI 10 bar
Plunger Diameter 1.4″ 36 mm
Stroke 2.0″ 52 mm
Max Temp @ 1000 RPM 140 °F 60 °C
Crankshaft Diameter 48 mm
Crankcase Capacity 1.6 gal 6.0 L
Weight 374 lbs. 170 kg
Inlet Ports (2) 1-1/4″ NPT
Discharge Ports (2) 3/4″ NPT
Shaft Rotation Top of Pulley Towards Manifold
Shaft Mounting Either Side
Volumetric Efficiency @ 700 RPM  94%
Mechanical Efficiency @ 700 RPM  83%
Key Component Material
Manifold Stainless Steel
Plunger Solid Ceramic Oxide
Valve Stainless Steel
Seal Nitrile with Fabric Reinforcing
Gear End Cast Iron

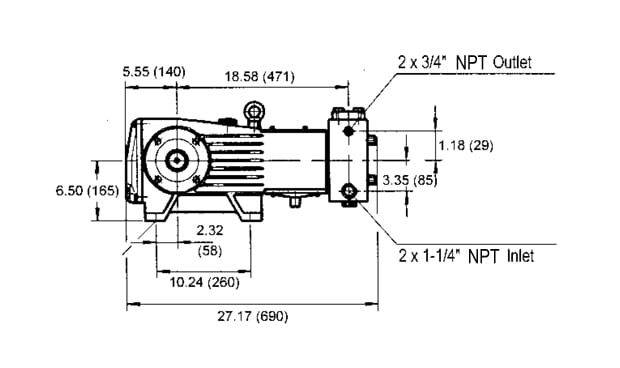

Click the image to enlarge


HORSEPOWER SPECIFICATIONS

RPM GPM 1000 PSI 1400 PSI 2000 PSI 2500 PSI 3625 PSI
300 11.3 8.1 11.3 16.1 20.2 29.3
400 15.0 10.7 15.0 21.4 26.8 38.8
550 20.8 14.9 20.8 29.7 37.1 53.9
600 22.6 16.1 22.6 32.3 40.4 58.5
650 25.0 17.9 25.0 35.7 44.6 64.7
700 26.4 18.9 26.4 37.7 47.1 68.4
750 28.3 20.2 28.3 40.4 50.5 73.3

Horsepower Requirements

The ratings shown are the power requirements for the pump. Gas engine power outputs must be approximately twice the pump power requirements shown above.

We recommend a 1.15 service factor be specified when selecting an electric motor as the power source. To compute specific pump horsepower requirements use the following formulas:

Electric HP = (GPM X PSI)/1450

as HP = (GPM X PSI)/1100

*Engine power varies based on horizontal or vertical orientation, as well as by makes and models from each manufacturer.


REPAIR KITS

ITEM# PART# DESCRIPTION Qty.
Plunger Packing Kit – Part #09544
38A 13141 O-Ring, Seal Case 6
38B 13142 Support Ring 6
39A 13291 Grooved Ring 3
42 06796 V-Sleeve 6
Valve Assembly Kit – Part #09520
51A 12056 Support Ring 6
51B 07354 O-Ring 6
51C 13131 Inlet Valve Seat 3
51D 13130 Valve Plate 6
51E 07062-0100 Valve Spring 6
52C 13149 Discharge Valve Seat 3
58A 07700 O-Ring 3
58B 07693 Support Ring 3
Oil Seal Kit – Part #09221
32 07624 Radial Shaft Seal 3
33A 07627 O-Ring 3

Repair Kits Available

The repair kits listed to the right are available for this pump. If you need further information about these repair kits, or have questions about other specific parts for your pump, please contact you local Giant distributor or contact Giant customer service.

PUMP CATEGORIES:
Service & Repair

Giant provides service on each pump and accessory that we sell. Many basic repair procedures are covered in the Giant repair manual. For all other questions on service or repair needs please contact your local Giant distributor.
