Designed and manufactured in Germany, these premium industrial pumps are meant for continuous duty applications. With a power range up to 150 Hp (110 kW), these pumps are used in a variety of heavy duty applications from steel processing, water hydraulics, fire suppression, sewer jetting, boiler feed, truck washes, waste water re-injection, jetting, deburring, liquid CO₂ and other industrial applications. Flow ranges from 4.8 GPM (18 l/min) to 132 GPM (500 L/min) and pressure range is up to 15,000 PSI (1000 Bar). Temperature range is up to 220 °F (105 °C). Fluid end materials range from nickel-plated cast iron, forged brass, bronze, nickel-aluminum-bronze, 303 stainless steel and 316 stainless steel.

Order by:

Order:

Model No.	Maximum Flow	Maximum Pressure	Speed	Power Consumption
GP8045	48.9 GPM 185 L/min	4350 PSI 300 bar	580 RPM	146.7 HP 109.4 KW
GP8045-3100	48.9 GPM 185 L/min	4350 PSI 300 bar	580 RPM	146.7 HP 109.4 KW
GP8045A	48.9 GPM 185 L/min	3170 PSI 220 bar	580 RPM	107 HP 80 KW
GP8048	56.3 GPM 213 L/min	3770 PSI 260 bar	580 RPM	147.7 HP 110.1 KW
GP8048-3100	56.3 GPM 213 L/min	3770 PSI 260 bar	580 RPM	146.4 HP 109.2 KW
GP8048-5100	56.3 GPM 213 L/min	3770 PSI 260 bar	580 RPM	146.4 HP 109.2 KW
GP8048A	56.3 GPM 213 L/min	2775 PSI 190 bar	580 RPM	107 HP 80 KW
GP8055	75.3 GPM 285 L/min	3000 PSI 200 bar	580 RPM	145 HP 108 KW
GP8055-1000	75.3 GPM 285 L/min	3000 PSI 200 bar	580 RPM	145 HP 108 KW
GP8055-Brine	75.3 GPM 285 L/min	3000 PSI 200 bar	580 RPM	155.8 HP 116.2 KW
GP8055A	75.3 GPM 285 L/min	2000 PSI 140 bar	580 RPM	107 HP 80 KW
GP8055A-1000	75.3 GPM 285 L/min	2000 PSI 140 bar	580 RPM	107 HP 80 KW
GP8060	90 GPM 340 L/min	2465 PSI 170 bar	580 RPM	147 HP 110 KW
GP8060-1000	90 GPM 340 L/min	2465 PSI 170 bar	580 RPM	147 HP 110 KW
GP8060-Brine	89 GPM 340 L/min	2465 PSI 170 bar	580 RPM	160.7 HP 119.8 KW
GP8060A	90 GPM 340 L/min	1730 PSI 120 bar	580 RPM	107 HP 80 KW
GP8060A-1000	90 GPM 340 L/min	1730 PSI 120 bar	580 RPM	107 HP 80 KW
GP8065	105.7 GPM 400 L/min	2000 PSI 140 bar	580 RPM	142 HP 106 KW
GP8065-1000	105.7 GPM 400 L/min	2000 PSI 140 bar	580 RPM	142 HP 106 KW
GP8065-5100	106 GPM 400 L/min	2000 PSI 140 bar	580 RPM	142 HP 106 KW
GP8065-Brine	105.7 GPM 400 L/min	2000 PSI 140 bar	580 RPM	150.0 HP 111.9 KW
GP8065A	105.7 GPM 400 L/min	1500 PSI 100 bar	580 RPM	107 HP 80 KW
GP8065A-1000	105.7 GPM 400 L/min	1500 PSI 100 bar	580 RPM	107 HP 80 KW
GP8065HT-1000	75.3 GPM 285 L/min	1500 PSI 100 bar	420 RPM	73.7 HP 55 KW
GP8076	132 GPM 500 L/min	1500 PSI 100 bar	520 RPM	129.0 HP 96.0 KW
GP8076A	132 GPM 500 L/min	1500 PSI 100 bar	520 RPM	129 HP 96 KW
GP8135	29.1 GPM 110 L/min	7250 PSI 500 bar	580 RPM	142 HP 106 KW
GP8135A	29.1 GPM 110 L/min	7250 PSI 500 bar	580 RPM	142 HP 106 KW
GP8140	39.6 GPM 150 L/min	5510 PSI 380 bar	580 RPM	146 HP 109 KW
GP8140A	39.6 GPM 150 L/min	5510 PSI 380 bar	580 RPM	146 HP 109 KW
GP8145	49 GPM 185 L/min	4350 PSI 300 bar	580 RPM	143 HP 107 KW
GP8148	56 GPM 213 L/min	3770 PSI 260 bar	580 RPM	142 HP 106 KW
GP8155	75.3 GPM 285 L/min	3000 PSI 200 bar	580 RPM	145 HP 108 KW
GP8155-1000	75.5 GPM 285 L/min	3000 PSI 200 bar	580 RPM	145 HP 108 KW
GP8155AGB-180	75.3 GPM 285 L/min	3000 PSI 200 bar	580 RPM	150 HP 112 KW

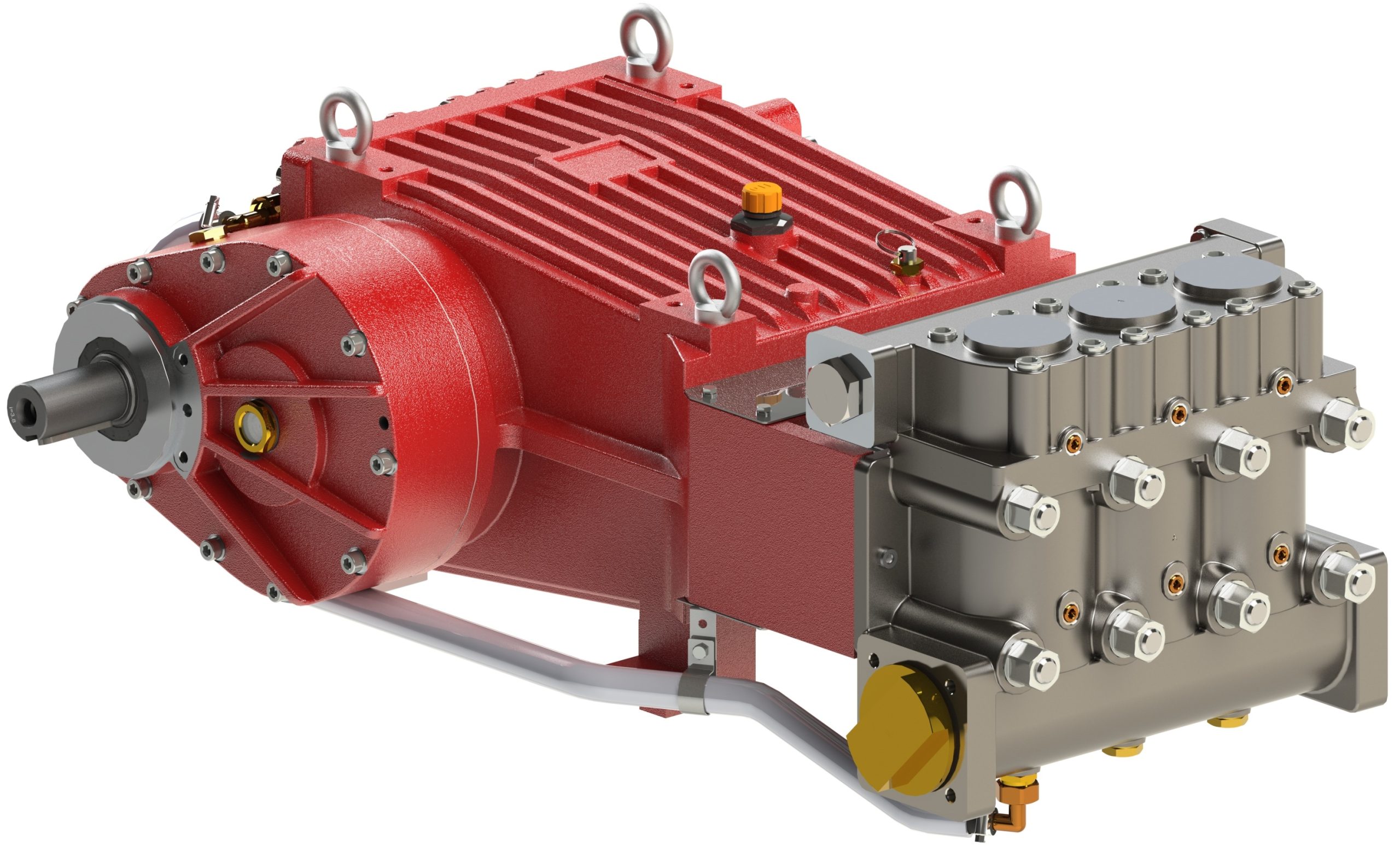

GP8155GB-180	75.3 GPM 285 L/min	3000 PSI 200 bar	580 RPM	150 HP 112 KW
GP8155GBHS	75.3 GPM 285 L/min	3000 PSI 200 bar	580 RPM	145 HP 108 KW
GP8155GBHS-1000	75.3 GPM 285 L/min	3000 PSI 200 bar	580 RPM	145 HP 108 KW
GP8160	90 GPM 337 L/min	2500 PSI 170 bar	580 RPM	147 HP 110 KW
GP8160-1000	90 GPM 337 L/min	2500 PSI 170 bar	580 RPM	147 HP 110 KW
GP8160AGB-180	90.0 GPM 340 L/min	2500 PSI 170 bar	580 RPM	155 HP 116 KW
GP8160GB-180	90 GPM 340 L/min	2500 PSI 170 bar	580 RPM	155 HP 116 KW
GP8160GBHS	90 GPM 340 L/min	2500 PSI 170 bar	580 RPM	147 HP 110 KW
GP8160GBHS-1000	90 GPM 340 L/min	2500 PSI 170 bar	580 RPM	147 HP 110 KW
GP8165	105.6 GPM 400 L/min	2000 PSI 140 bar	580 RPM	142 HP 106 KW
GP8165-1000	105.6 GPM 400 L/min	2000 PSI 140 bar	580 RPM	142 HP 106 KW
GP8165AGB-180	105.7 GPM 400 L/min	2000 PSI 140 bar	580 RPM	153 HP 153 KW
GP8165GB-180	105.7 GPM 400 L/min	2000 PSI 140 bar	580 RPM	153 HP 114 KW
GP8165GBHS	106 GPM 400 L/min	2000 PSI 140 bar	580 RPM	142 HP 106 KW
GP8165GBHS-1000	106 GPM 400 L/min	2000 PSI 140 bar	580 RPM	142 HP 106 KW
GP8176	132 GPM 500 L/min	1500 PSI 100 bar	520 RPM	129.0 HP 96.0 KW
GP8265	127 GPM 480 L/min	1740 PSI 120 bar	700 RPM	147 HP 106 KW
