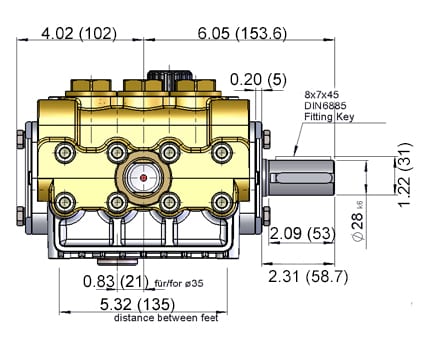

A German-made reciprocating triplex plunger pump.
Aluminum crankcase with sight glass and vented dipstick; forged, through-hardened, ground and polished crankshaft; bronze connecting rods; hardened stainless steel plunger bases; solid ceramic plungers; nitrile seals (with fabric reinforcing); stainless steel valves; and nickel plated forged brass manifold.
Gearbox and bell housings (to connect to gasoline, diesel, electric or hydraulic drive) and pulsator valve.
WARNING: This product might contain a chemical known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
22155A - Accumulators
22973C - Pressure-Actuated Unloaders
22973CR - Pressure Regulators
23940 - Electric Clutch
25000-04-2300 - Pressure Gauges
|Flow (Continuous)||15.7 GPM||59.5 L/min|
|Maximum Pressure (Continuous)||2030 PSI||140 bar|
|Speed (Continuous)||1450 RPM|
|Flow (Intermittent)||18.9 GPM||71.7 L/min|
|Maximum Pressure (Intermittent)||1000 PSI||69 bar|
|Speed (Intermittent)||1750 RPM|
|Maximum Inlet Pressure||145 PSI||10 bar|
|Maximum Temperature||160 °F||70 °C|
|Plunger Diameter||1.18″||30 mm|
|Crankshaft Rotation||Top of Pulley Towards Manifold|
|Crankshaft Mounting||Either Side|
|Inlet Ports||(1) 1″ BSP, (2) 3/4″ BSP|
|Discharge Ports||(2) 3/4″ BSP|
|Crankcase Capacity||27.1 fl. oz.||0.8 L|
|Weight||39.7 lbs.||18 kg|
|Key Component Material|
|Plungers||Solid Ceramic Oxide|
|Valves||High Grade Stainless Steel|
|Seals||Nitrile With Fabric Reinforcing|
|RPM||GPM||500 PSI||750 PSI||1000 PSI||1500 PSI||2030 PSI|
The ratings shown are the power requirements for the pump. Gas engine power outputs must be approximately twice the pump power requirements shown above.
We recommend a 1.15 service factor be specified when selecting an electric motor as the power source. To compute specific pump horsepower requirements use the following formulas:
Electric HP = (GPM X PSI)/1450
Gas HP = (GPM X PSI)/1100
*Engine power varies based on horizontal or vertical orientation, as well as by makes and models from each manufacturer.
|Plunger Packing Kit – Part #09565|
|Valve Assembly Kit – Part #09566|
|Oil Seal Kit – Part #09306|
Repair Kits Available
The repair kits listed to the right are available for this pump. If you need further information about these repair kits, or have questions about other specific parts for your pump, please contact you local Giant distributor or contact Giant customer service.
