P451

A German-made reciprocating triplex plunger pump.

Features:
Aluminum crankcase with sight glass and vented dipstick; forged, through-hardened, ground and polished crankshaft; bronze connecting rods; hardened stainless steel plunger bases; solid ceramic plungers; nitrile seals (with fabric reinforcing); stainless steel valves; and forged brass manifold.

Options:
Gearbox and bell housings (to connect to gasoline, diesel, electric or hydraulic drive) and pulsator valve.

  • P451 Exploded View
  • P451 Parts List
  • Giant Industries Limited Warranty
  • P451 Installation Instructions
  • P451 Repair Instructions
  • Troubleshooting Guide

SPECIFICATIONS

U.S. Metric
Flow 5.8 GPM 22.0 L/min
Maximum Discharge Pressure 5075 PSI 350 bar
Crankshaft Speed 1725 RPM
Maximum Inlet Pressure 90 PSI 6.2 bar
Maximum Temperature 160 °F 70 °C
Plunger Diameter 0.71″ 18 mm
Stroke 0.72″ 18.2 mm
Crankshaft Diameter 1.10″ 28 mm
Crankshaft Rotation Top of Pulley Towards Manifold
Key Width 0.32″ 8 mm
Crankshaft Mounting Either Side
Inlet Ports (2) 1/2″ BSP
Discharge Ports (2) 1/2″ BSP
Crankcase Oil Capacity 30 fl. oz. 0.89 L
Weight 36.7 lbs. 16.6 kg
NPSHR 28.5 ft.-head 8.7 mWs
Key Component Material
Manifold Forged Brass
Plungers Solid Ceramic Oxide
Valves High Grade Stainless Steel
Seals Nitrile With Fabric Reinforcing
Gear End Aluminum

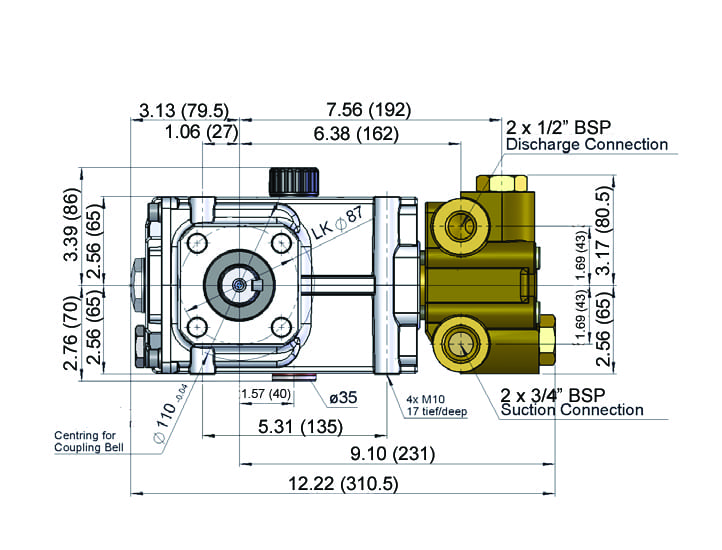

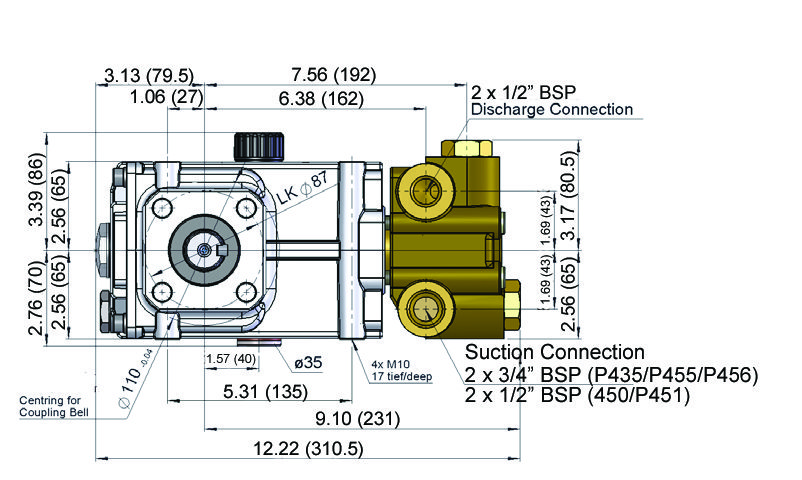

Click the image to enlarge


HORSEPOWER SPECIFICATIONS

RPM GPM 2000 PSI 3000 PSI 4000 PSI 5075 PSI
920 3.1 4.3 6.4 8.6 10.9
1050 3.5 4.8 7.2 9.7 12.3
1185 4.0 5.5 8.3 11.0 14.0
1315 4.4 6.1 9.1 12.1 15.4
1725 5.8 8.0 12.0 16.0 20.3

Horsepower Requirements

The ratings shown are the power requirements for the pump. Gas engine power outputs must be approximately twice the pump power requirements shown above.

We recommend a 1.15 service factor be specified when selecting an electric motor as the power source. To compute specific pump horsepower requirements use the following formulas:
Electric HP = (GPM X PSI)/1450
as HP = (GPM X PSI)/1100


*Engine power varies based on horizontal or vertical orientation, as well as by makes and models from each manufacturer.


REPAIR KITS

ITEM# PART# DESCRIPTION Qty.
Plunger Packing Kit – Part #09141
21 07266 O-Ring 3
23 08477 V-Sleeve 6
24 07929 Pressure Ring 3
Valve Assembly Kit – Part #09770
27A 05543 Valve Assembly, Complete 6
33 07489 O-Ring 6
Oil Seal Kit – Part #09641
19 05444 Oil Seal 3

Repair Kits Available

The repair kits listed to the right are available for this pump. If you need further information about these repair kits, or have questions about other specific parts for your pump, please contact you local Giant distributor or contact Giant customer service.

PUMP CATEGORIES:
Service & Repair

Giant provides service on each pump and accessory that we sell. Many basic repair procedures are covered in the Giant repair manual. For all other questions on service or repair needs please contact your local Giant distributor.
