P316
An American-made triplex plunger positive displacement pump with reciprocating plungers for direct or belt drive applications.
Features:
Aluminum crankcase with sight glass and vented dipstick; forged, through-hardened, ground and polished crankshaft; bronze connecting rods; hardened stainless steel plunger bases; solid ceramic plungers; nitrile seals (with fabric reinforcing); stainless steel valves and forged brass manifold.
Options:
Gearbox and bell housings (to connect to gasoline, diesel, electric or hydraulic drive), couplers (aluminum or Delrin), unloader/regulator, fixed or adjustable chemical injector, thermal relief valve and pulsator valve.
View Manual-
Share
Request Info
How to Order
WARNING: This product might contain a chemical known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
SPECIFICATIONS
| U.S. | Metric | |
|---|---|---|
| 1450 RPM | ||
| Flow | 4.0 GPM | 15.0 L/min |
| Nominal Pressure | 3045 PSI | 210 bar |
| Power Required (Nominal) | 8.4 hp | 6.3 kW |
| Intermittent Pressure | 3350 PSI | 190 bar |
| Power Required (Intermittent) | 9.2 hp | 6.9 kW |
| 1750 RPM | ||
| Max Flow | 4.7 GPM | 17.8 L/min |
| Nominal Pressure | 2500 PSI | 170 bar |
| Power Required (Nominal) | 8.1 hp | 6.0 kW |
| Intermittent Pressure | 2750 PSI | 190 bar |
| Power Required (Intermittent) | 8.9 hp | 6.6 kW |
| Common Specifications | ||
| Maximum Inlet Pressure | 145 PSI | 10 bar |
| Maximum Temperature | 160 °F | 70 °C |
| Plunger Diameter | 0.71″ | 18 mm |
| Stroke | 0.56″ | 14.1 mm |
| Crankshaft Diameter | 24 mm | |
| Crankshaft Rotation | Top of Pulley Towards Manifold | |
| Crankshaft Mounting | Either Side | |
| Inlet Ports | (2) 1/2″ BSP | |
| Discharge Ports | (2) 3/8″ BSP | |
| Crankcase Oil Capacity (short) | 14.2 fl. oz. | 0.42 L |
| Crankcase Oil Capacity (extended) | 17.0 fl. oz. | 0.5 L |
| Weight | 16 lbs. | 7.3 kg |
| NPSH Required | 19 Ft.-head | 5.8 kW |
| Key Component Material | ||
| Manifold | Forged Brass | |
| Plungers | Solid Ceramic Oxide | |
| Valves | High Grade Stainless Steel | |
| Seals | Nitrile With Fabric Reinforcing | |
| Gear End | Aluminum Die-Cast | |

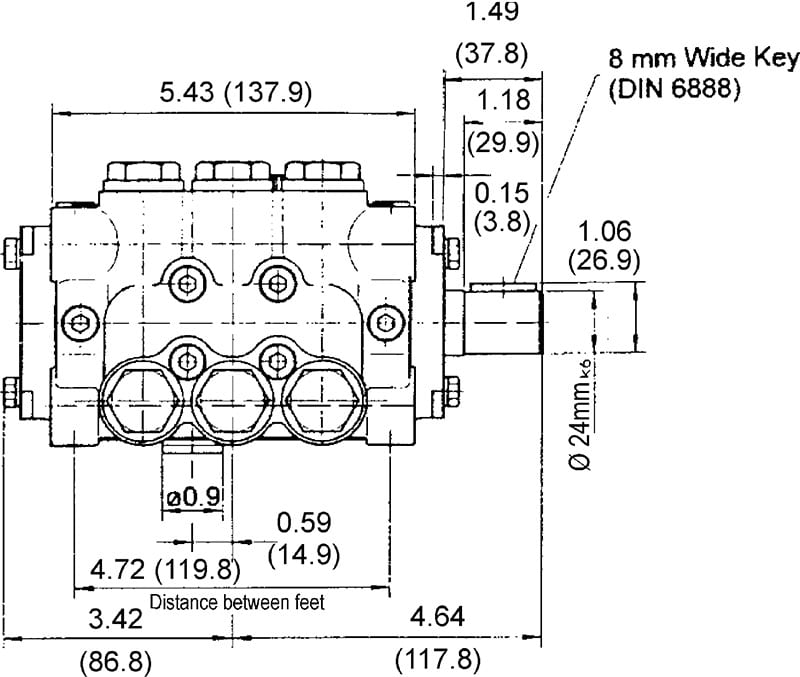

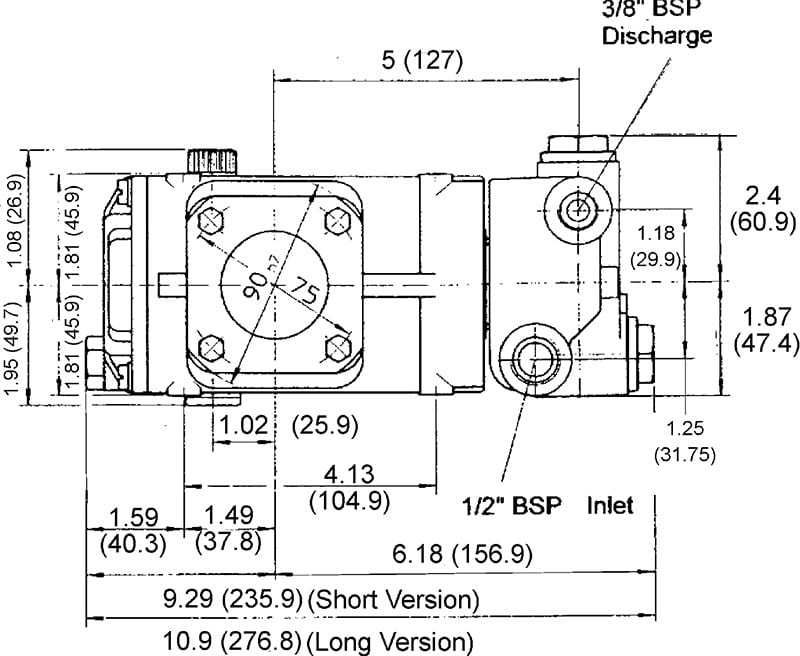

Click the image to enlarge
HORSEPOWER SPECIFICATIONS
| RPM | GPM | 1000 PSI | 1500 PSI | 2000 PSI | 2500 PSI | 3000 PSI | 3500 PSI* |
|---|---|---|---|---|---|---|---|
| 745 | 2.3 | 1.6 | 2.3 | 3.1 | 3.9 | 4.7 | 5.4 |
| 1025 | 3.1 | 2.1 | 3.2 | 4.36 | 5.4 | 6.4 | 7.5 |
| 1340 | 4.1 | 2.8 | 4.2 | 5.6 | 7.0 | 8.4 | 9.8 |
| 1450 | 4.4 | 3.0 | 4.5 | 6.1 | 7.6 | 9.1 | 10.6 |
| 1750 | 5.3 | 3.7 | 5.5 | 7.3 | 9.1 | 11.0 | 12.8 |
Horsepower Requirements
The ratings shown are the power requirements for the pump. Gas engine power outputs must be approximately twice the pump power requirements shown above.
We recommend a 1.15 service factor be specified when selecting an electric motor as the power source. To compute specific pump horsepower requirements use the following formulas:
Electric HP = (GPM X PSI)/1450
Gas HP = (GPM X PSI)/1100
*Engine power varies based on horizontal or vertical orientation, as well as by makes and models from each manufacturer.
REPAIR KITS
| ITEM# | PART# | DESCRIPTION | Qty. |
|---|---|---|---|
| Plunger Packing Kit – Part #09119 | |||
| 23 | 08477 | Grooved Seal, Black | 3 |
| 23A | 08087 | Grooved Seal, Brown | 3 |
| 24 | 07904 | Pressure Ring | 6 |
| Valve Assembly Kit – Part #09116 | |||
| 31 | 07853 | O-Ring | 6 |
| 32x | 07946A | Valve Assembly | 6 |
| 33 | 07913 | O-Ring | 6 |
| Oil Seal Kit – Part #09144 | |||
| 19 | 08356-0010 | Oil Seal | 3 |
| Optional Viton Packing Kit – Part #09456 | |||
| 18 | 07770-0001 | O-Ring, Viton | 3 |
| 21 | 07780-0001 | O-Ring, Viton | 3 |
| 22 | 12027-0001 | O-Ring, Viton | 3 |
| 23/23A | 07902-0010 | V-Sleeve, Viton | 6 |
| 24 | 07904 | Pressure Ring | 6 |
| 31 | 07853-0001 | O-Ring, Viton | 6 |
| 33 | 07913-0001 | O-Ring, Viton | 6 |
| Optional High-Temp Seal Kit – Part#09599 | |||
| 23/23A | 08477-0030 | High-Temp Seals | 6 |
| 24 | 07904 | Pressure Ring | 6 |
Repair Kits Available
The repair kits listed to the right are available for this pump. If you need further information about these repair kits, or have questions about other specific parts for your pump, please contact you local Giant distributor or contact Giant customer service.
