P219
An American-made triplex plunger positive displacement pump with reciprocating plungers for direct or belt drive applications.
Features:
Aluminum crankcase with sight glass and vented dipstick; forged, through-hardened, ground and polished crankshaft; bronze connecting rods; hardened stainless steel plunger bases; solid ceramic plungers; nitrile seals (with fabric reinforcing); stainless steel valves and forged brass manifold.
Options:
Gearbox and bell housings (to connect to gasoline, diesel, electric or hydraulic drive), couplers (aluminum or Delrin), unloader/regulator, fixed or adjustable chemical injector, thermal relief valve and pulsator valve.
WARNING: This product might contain a chemical known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
| Specification | US | Metric |
|---|---|---|
| Flow | 4.2 GPM | 15.9 L/min |
| Maximum Discharge Pressure | 2000 PSI | 140 bar |
| Crankshaft Speed | 1750 RPM | |
| Power | 5.8 HP | 4.3 KW |
| Intermittent Flow | 4.2 GPM | 15.9 L/min |
| Intermittent Discharge Pressure | 2500 PSI | 170 bar |
| Intermittent Crankshaft Speed | 1750 RPM | |
| Intermittent Power Consumption | 7.2 HP | 5.4 kW |
| Max Temperature | 160 °F | 70 °C |

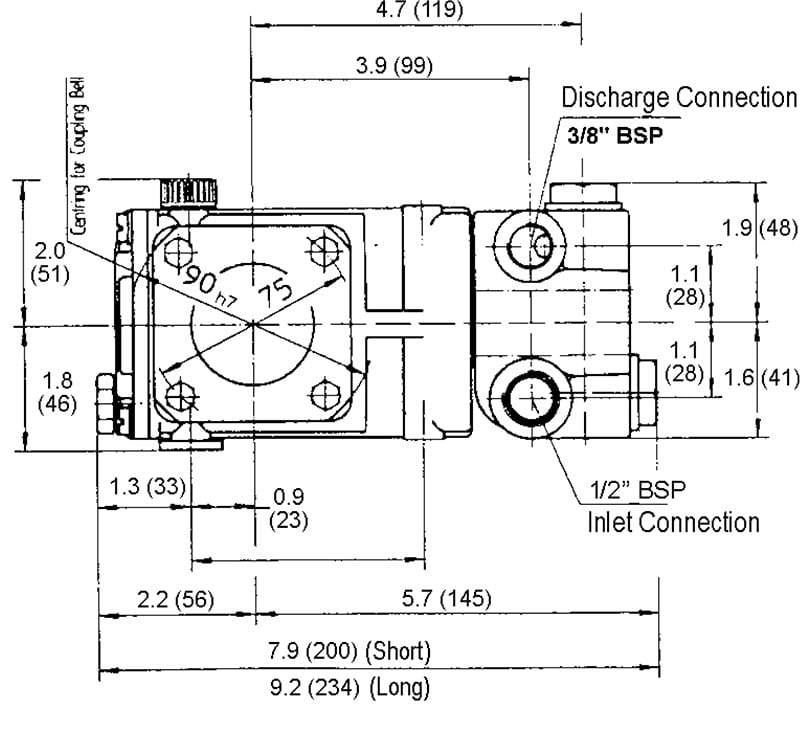

| Inlet Port Size | (2) 1/2" BSP | |
| Discharge Port Size | (2) 3/8" BSP | |
| Plunger Diameter | 0.71 in. | 18 mm |
| Stroke | 0.49 in. | 12.4 mm |
| Maximum Inlet Pressure | 145 PSI | 10 bar |

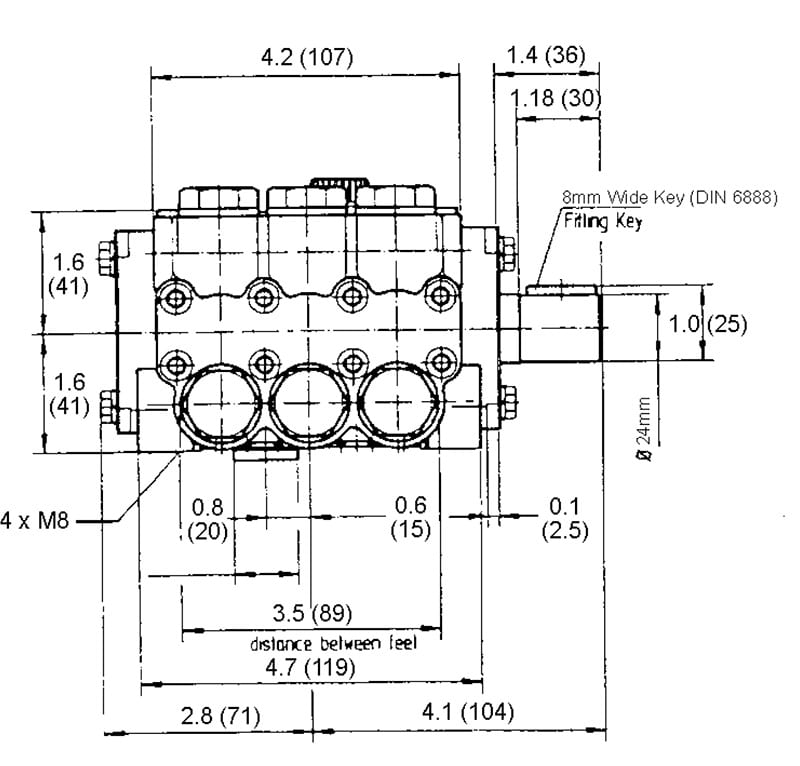

| Crankshaft Diameter | 0.98 in. | 24 mm |
| Crankshaft Rotation | Top of Pulley Towards Manifold | |
| Key Width | 0.31 in. | 8 mm |
| Crankshaft Mounting | Either Side | |
| Crankcase Oil Capacity US | 7.5 fl. oz. | 0.22 L |
| Extended Crankcase Oil Capacity | 9.0 fl. oz. | 0.27 L |
| Weight | 11.7 lbs. | 5.3 kg |
| Volumetric Efficiency | 0.87 | |
| Mechanical Efficiency | 0.86 | |
| Manifold Material | Special Brass | |
| Crankcase Material | Aluminum | |
| Plunger Material | Solid Ceramic Oxide | |
| Valve Material | High Grade Stainless Steel | |
| Seal Material | Nitrile with Fabric Reinforcing |

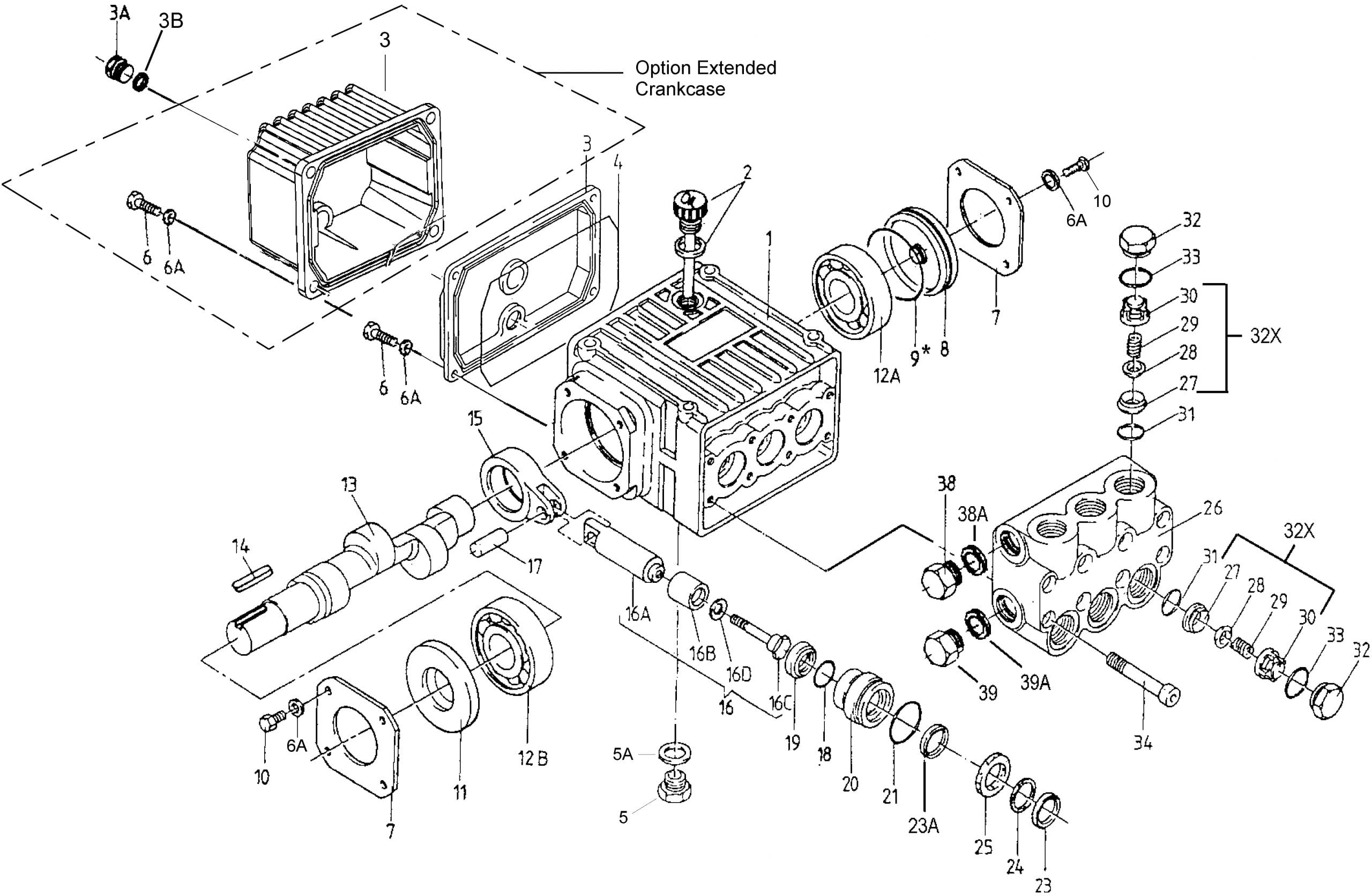

The repair kits listed below are available for this pump. If you need further information about these repair kits, or have questions about other specific parts for your pump, please contact you local Giant distributor or contact Giant customer service.
| ITEM# | PART# | DESCRIPTION | Qty. |
|---|---|---|---|
| Plunger Packing Kit – Part #09164 | |||
| 23 | 08477 | V-Sleeve, Weep | 3 |
| 23A | 08087 | V-Sleeve, Brown | 3 |
| 24 | 07904 | Pressure Ring | 3 |
| Valve Assembly Kit – Part #09116 | |||
| 32X | 07946A | Valve Assembly Complete | 6 |
| 31 | 07853 | O-Ring | 6 |
| 33 | 07913 | O-Ring | 6 |
| Oil Seal Kit – Part #09144 | |||
| 19 | 08356 | Oil Seal | 3 |
| Optional Teflon Packing Kit – Part #09164-0021 | |||
| 18 | 07770-0001 | O-Ring, Viton | 3 |
| 21 | 08443-0001 | O-Ring, Viton | 3 |
| 23/23A | 08087-0020 | Weep Seal, Teflon | 6 |
| 24 | 07904 | Pressure Ring | 3 |
| 31 | 07853-0001 | O-Ring, Viton | 6 |
| 33 | 07913-0001 | O-Ring Viton | 6 |
| Viton Seal Kit – Part #09164-0011 | |||
| 18 | 07770-0001 | O-Ring, Viton | 3 |
| 21 | 08443-0001 | O-Ring, Viton | 3 |
| 23 | 08087-0010 | V-Sleeve | 6 |
| 24 | 07904 | Pressure Ring | 3 |
| 31 | 07853-0001 | O-Ring, Viton | 6 |
| 33 | 07913-0001 | O-Ring, Viton | 6 |
| High Temperature Seal Kit – Part #09599 | |||
| 23/23A | 08477-0030 | High-Temp Seal | 6 |
| 24 | 07904 | Pressure Ring | 6+ |
| + Kit contains six (6) pressure rings. Only three (3) are required for the P200 Series Pumps. |
|||
Horsepower Specifications
| RPM | GPM | 1000 PSI | 1500 PSI | 2000 PSI | 2500 PSI* |
|---|---|---|---|---|---|
| 250 | 0.6 | 0.4 | 0.6 | 0.8 | 1.0 |
| 500 | 1.2 | 0.8 | 1.2 | 1.7 | 2.1 |
| 1000 | 2.4 | 1.7 | 2.5 | 3.3 | 4.1 |
| 1450 | 3.5 | 2.4 | 3.6 | 4.8 | 6.0 |
| 1750 | 4.2 | 2.9 | 4.3 | 5.8 | 7.2 |
*Intermittent duty only!
