LP121A-5100
A German-made triplex plunger positive displacement pump with reciprocating plungers for belt drive applications.
Features:
Spheroidal cast iron crankcase with sight glass and vented dipstick; forged, through-hardened, ground and polished crankshaft; bronze connecting rods; hardened stainless steel plunger bases; solid ceramic plungers; nitrile seals (with fabric reinforcing); stainless steel valves and 316 stainless steel manifold.
View Manual-
Share
Request Info
How to Order
WARNING: This product might contain a chemical known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
SPECIFICATIONS
| U.S. | Metric | |
|---|---|---|
| Flow | 32.5 GPM | 123.1 L/min |
| Maximum Discharge Pressure | 1740 PSI | 120 bar |
| Crankshaft Speed | 1000 RPM | |
| Maximum Inlet Pressure | 87 PSI | 6.0 bar |
| Maximum Temperature @ 1000 RPM | 140 °F | 60 °C |
| Maximum Temperature @ 500 RPM | 160 °F | 70°C |
| Plunger Diameter | 1.42″ | 36 mm |
| Stroke | 1.65″ | 42 mm |
| Crankshaft Diameter | 35 mm | |
| Crankshaft Rotation | Top of Pulley Towards Manifold | |
| Crankshaft Mounting | Either Side | |
| Inlet Ports | (3) 1-1/2″ BSP | |
| Discharge Ports | (3) 1″BSP | |
| Crankcase Capacity | 118 fl. oz. | 3.5 L |
| Weight | 119 lbs. | 54 kg |
| Key Component Material | ||
| Manifold | 316 Stainless Steel Manifold | |
| Plungers | Solid Ceramic Plungers | |
| Valves | Stainless Steel Valves | |
| Seals | Nitrile with Fabric Reinforcing | |
| Gear End | Spheroidal Cast Iron | |

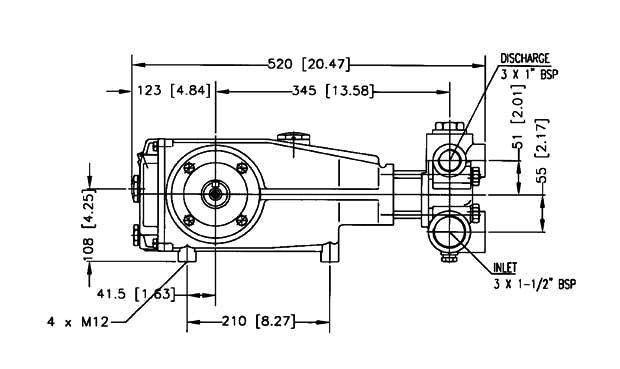

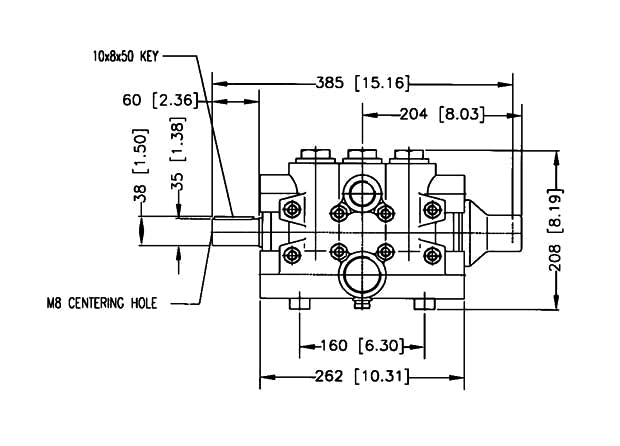

Click the image to enlarge
HORSEPOWER SPECIFICATIONS
| RPM | GPM | 500 PSI | 1000 PSI | 1500 PSI | 1740 PSI |
|---|---|---|---|---|---|
| 500 | 16.3 | 5.6 | 11.2 | 16.9 | 19.6 |
| 640 | 20.8 | 7.2 | 14.4 | 21.5 | 25.0 |
| 750 | 24.4 | 8.4 | 16.8 | 25.2 | 29.3 |
| 805 | 26.2 | 9.0 | 18.1 | 27.1 | 31.4 |
| 865 | 28.1 | 9.7 | 19.4 | 29.1 | 33.7 |
| 920 | 29.9 | 10.3 | 20.6 | 30.9 | 35.9 |
| 1000 | 32.5 | 11.2 | 22.4 | 33.9 | 39.0 |
Horsepower Requirements
The ratings shown are the power requirements for the pump. Gas engine power outputs must be approximately twice the pump power requirements shown above.
We recommend a 1.15 service factor be specified when selecting an electric motor as the power source. To compute specific pump horsepower requirements use the following formulas:
Electric HP = (GPM X PSI)/1450
Gas HP = (GPM X PSI)/1100
*Engine power varies based on horizontal or vertical orientation, as well as by makes and models from each manufacturer.

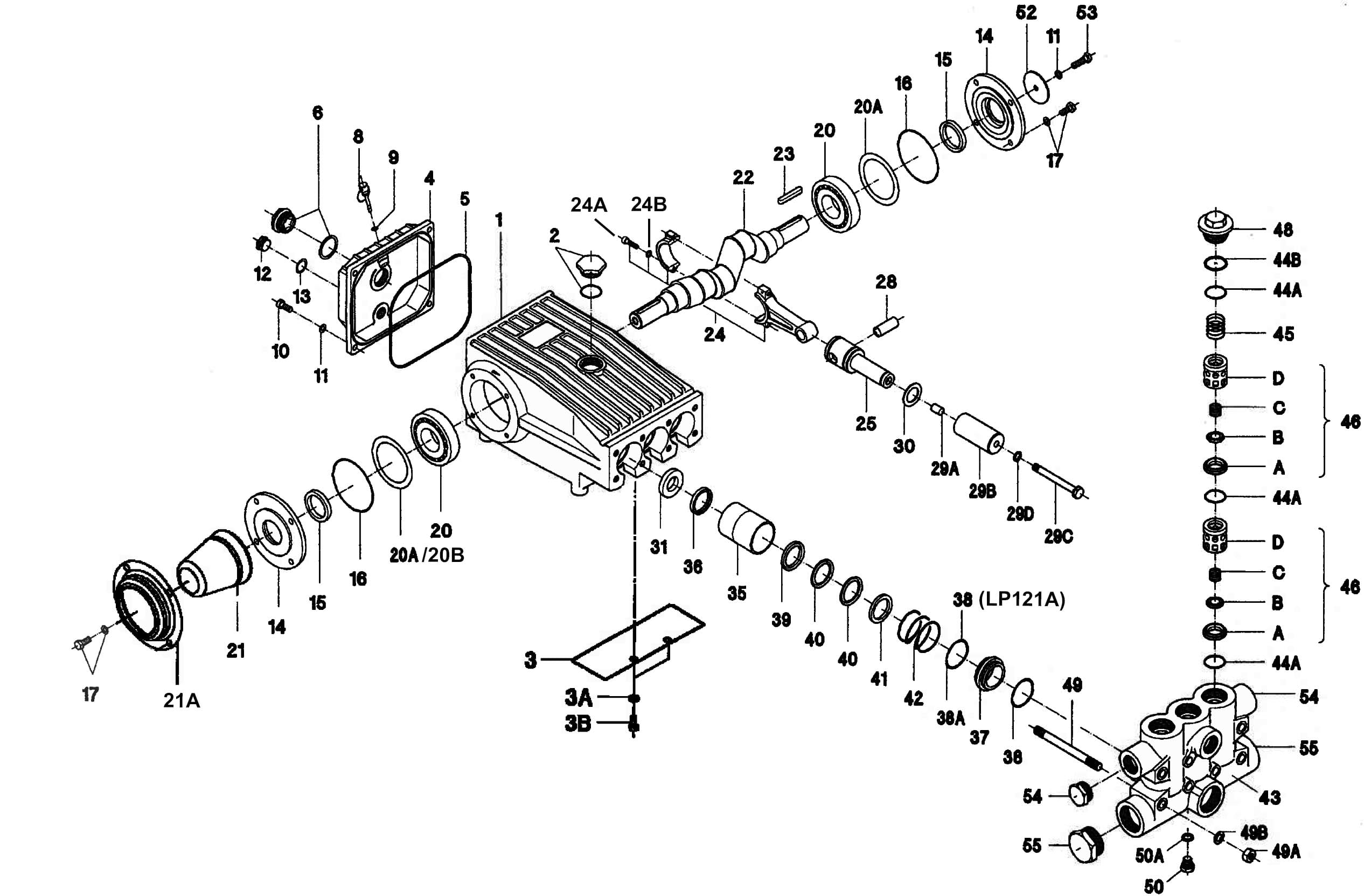

REPAIR KITS
| ITEM# | PART# | DESCRIPTION | Qty. |
|---|---|---|---|
| Plunger Packing Kit – Part #09720 | |||
| 36 | 13291 | Leakage Seal | 3 |
| 38 | 07140 | O-Ring | 6 |
| 40 | 07144 | V-Sleeve | 6 |
| Valve Assembly Kit – Part #09196-0100 | |||
| 44A | 07150 | O-Ring | 9 |
| 44B | 06266 | Support Ring | 3 |
| 46A | 07064-0100 | Valve Seat | 6 |
| 46B | 07063-0100 | Valve Plate | 6 |
| 46C | 07062-0100 | Valve Spring | 6 |
| Oil Seal Kit – Part #09577 | |||
| 31 | 07133 | Oil Seal | 3 |
Repair Kits Available
The repair kits listed to the right are available for this pump. If you need further information about these repair kits, or have questions about other specific parts for your pump, please contact you local Giant distributor or contact Giant customer service.
