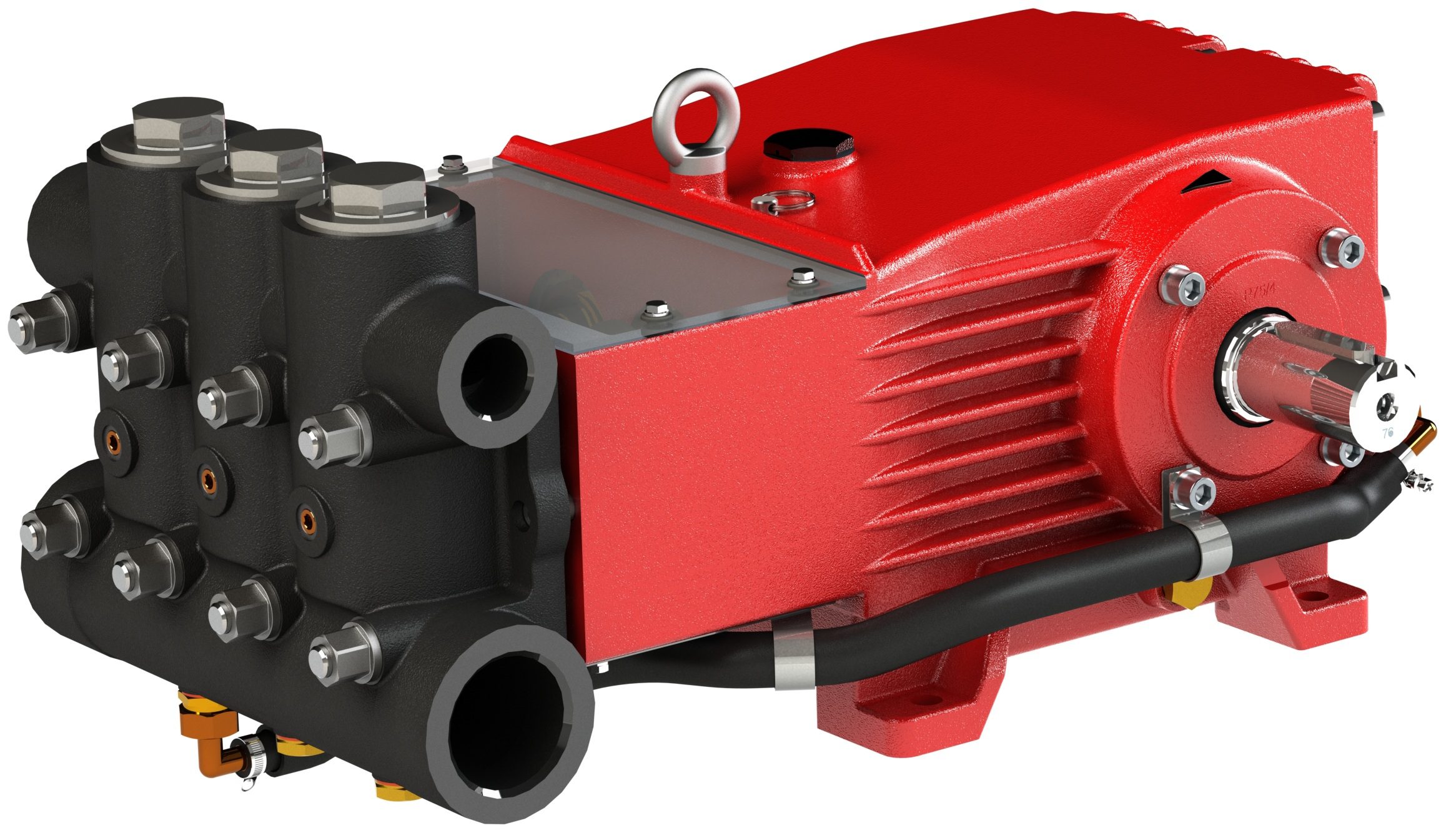

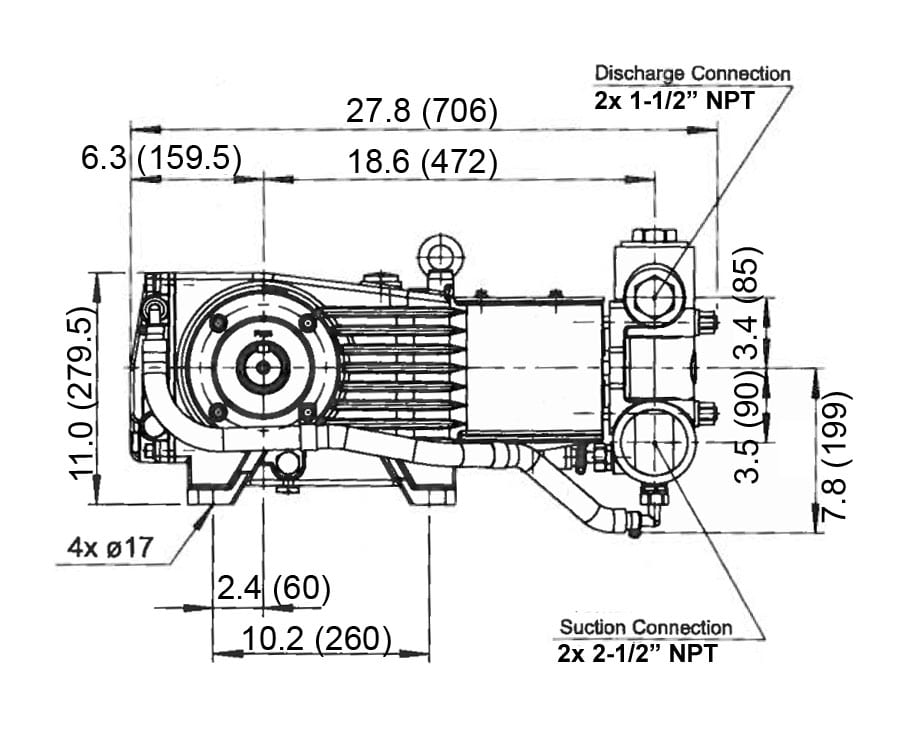

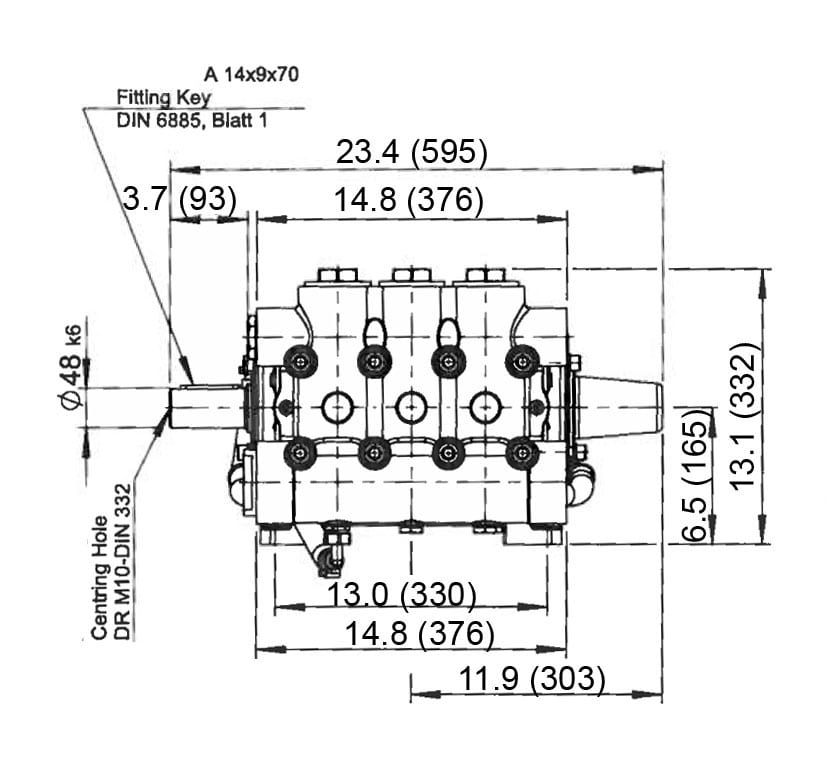

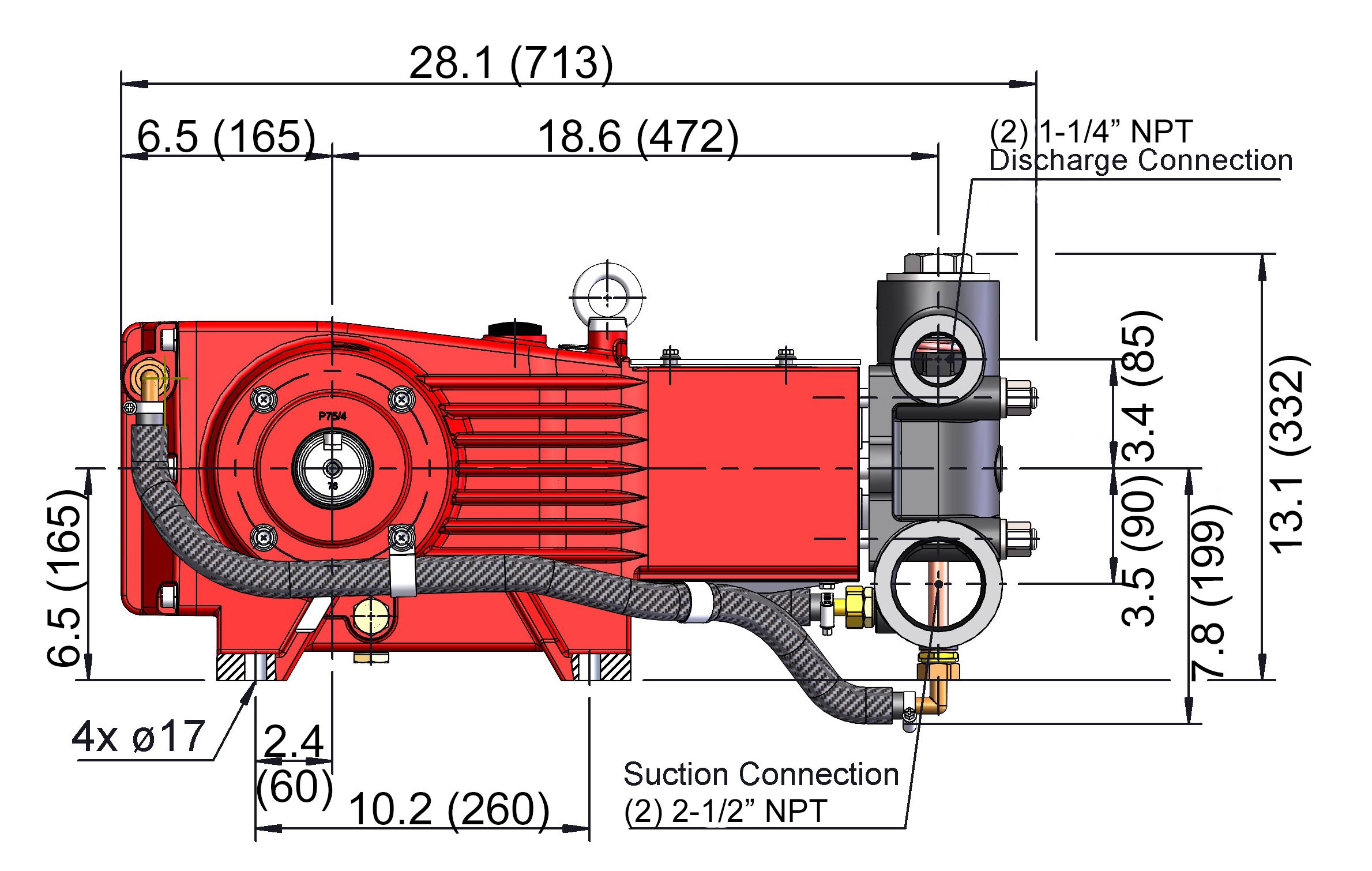

A German-made reciprocating triplex plunger pump.
Spheroidal cast iron crankcase with sight glass and vented dipstick; forged, through-hardened, ground and polished crankshaft; bronze connecting rods; hardened stainless steel plunger bases; solid ceramic plungers; nitrile seals with fabric reinforcing; stainless steel valves and nickel-plated Spheroidal cast iron manifold. Comes equipped with an integrated oil cooling system.
WARNING: This product might contain a chemical known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
|Flow||69.7 GPM||264 L/min|
|Maximum Discharge Pressure||2540 PSI||175 bar|
|Crankshaft Speed||800 RPM|
|Maximum Temperature||86 ºF||30 ºC|
|Plunger Diameter||1.97″||50 mm|
|Crankshaft Diameter||48 mm|
|Crankshaft Rotation||Top of Pulley Towards Manifold|
|Key Width||0.6″||14 mm|
|Crankshaft Mounting||Either Side|
|Inlet Ports||(2) 2-1/2″ NPT|
|Discharge Ports||(2) 1-1/4″ NPT|
|Crankcase Oil Capacity||1.6 gal||6.0 L|
|Weight||408 lbs.||185 kg|
|NPSHR Required||30.5 ft.-Head||9.3 mWs|
|Key Component Material|
|Manifold||Nickel-Plated Spheroidal Cast Iron|
|Plungers||Solid Ceramic Oxide|
|Valves||High Grade Stainless Steel|
|Seals||Nitrile With Fabric Reinforcing|
|Gear End||Spheroidal Cast Iron|
|RPM||GPM||1000 PSI||1500 PSI||2000 PSI||2540 PSI|
The ratings shown are the power requirements for the pump. Gas engine power outputs must be approximately twice the pump power requirements shown above.
We recommend a 1.15 service factor be specified when selecting an electric motor as the power source. To compute specific pump horsepower requirements use the following formulas:
Electric HP = (GPM X PSI)/1450
Gas HP = (GPM X PSI)/1100
*Engine power varies based on horizontal or vertical orientation, as well as by makes and models from each manufacturer.
|Plunger Packing Kit – Part #09526|
|Oil Seal Kit – Part #09221|
|32||07624||Radial Shaft Seal||3|
|Inlet Valve Assembly Kit – Part #09659|
|51||05594||Inlet Valve Assembly||1|
|Large Discharge Valve Assembly Kit – Part #09660|
|52||05600||Discharge Valve Assembly||1|
|Small Discharge Valve Kit* – Part #09661|
|*The discharge valve seat (item 52E) can be flipped over and used. If it is damaged on both sides, order kit #09660|
Repair Kits Available
The repair kits listed to the right are available for this pump. If you need further information about these repair kits, or have questions about other specific parts for your pump, please contact you local Giant distributor or contact Giant customer service.
