GP7170-4000

A German-made reciprocating triplex plunger pump.

Features:
Spheroidal cast iron crankcase with sight glass and vented dipstick; forged, through-hardened, ground and polished crankshaft; bronze connecting rods; hardened stainless steel plunger bases; solid ceramic plungers; nitrile seals with fabric reinforcing; stainless steel valves and machined stainless steel manifold.

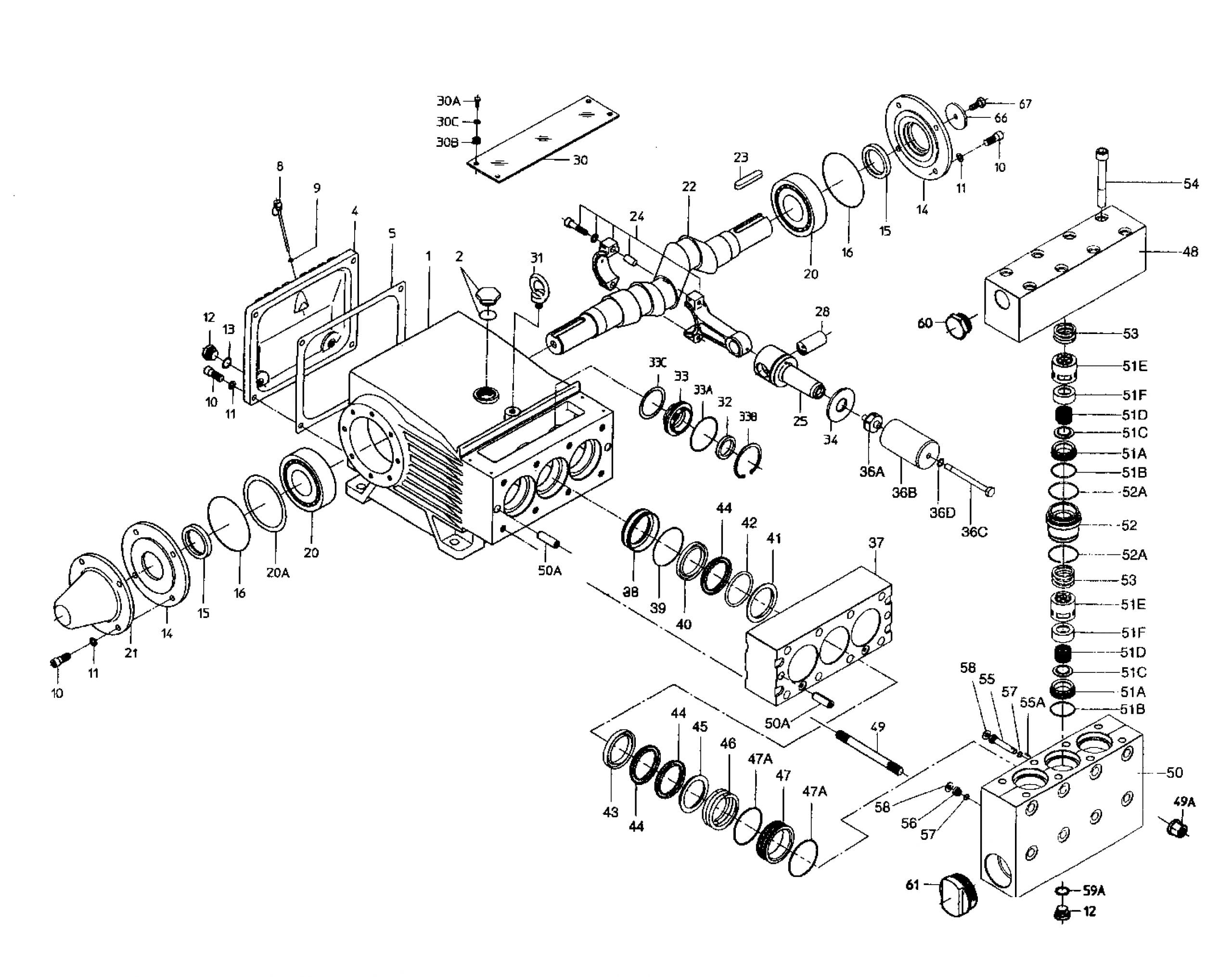

  • GP7170-4000 Exploded View
  • GP7170-4000 Parts List
  • GP7170-4000 Torque Specifications
  • Giant Industries Limited Warranty
  • GP7170-4000 Installation Instructions
  • GP7170-4000 Repair Instructions
  • Troubleshooting Guide

SPECIFICATIONS

U.S. Metric
Flow 84.5 GPM 320 L/min
Maximum Discharge Pressure 1450 PSI 100 bar
Crankshaft Speed 700 RPM
Maximum Inlet Pressure 90 PSI 10 bar
Maximum Temperature 140 ºF 60 ºC
Plunger Diameter 2.48″ 63 mm
Stroke 2.05″ 52 mm
Crankshaft Diameter 52 mm
Crankshaft Rotation Top of Pulley Towards Manifold
Key Width 0.55″ 14 mm
Crankshaft Mounting Either Side
Inlet Ports (2) 1-1/4″ NPT
Discharge Ports (2) 3/4″ NPT
Crankshaft Oil Capacity 1.6 gal. 6.0 L
Weight 374 lbs. 170 kg
Key Component Material
Manifold Stainless Steel
Plungers Solid Ceramic Oxide
Valves Stainless Steel
Seals Nitrile With Fabric Reinforcing
Gear End Spheroidal Cast Iron

Click the image to enlarge


HORSEPOWER SPECIFICATIONS

RPM GPM 500 PSI 750 PSI 1000 PSI 1500 PSI
300 36.0 12.9 19.3 25.7 38.6
400 49.0 17.5 26.3 35.0 52.5
500 60.0 21.4 32.1 42.9 64.3
700 84.5 30.2 45.3 60.4 90.5

Horsepower Requirements

The ratings shown are the power requirements for the pump. Gas engine power outputs must be approximately twice the pump power requirements shown above.

We recommend a 1.15 service factor be specified when selecting an electric motor as the power source. To compute specific pump horsepower requirements use the following formulas:

Electric HP = (GPM X PSI)/1450

Gas HP = (GPM X PSI)/1100

*Engine power varies based on horizontal or vertical orientation, as well as by makes and models from each manufacturer.


REPAIR KITS

ITEM# PART# DESCRIPTION Qty.
Plunger Packing Kit – Part #09610
39 05235 O-Ring, Seal Retainer 3
42 05238 O-RIng 3
44 05240 V-Sleeve 9
47A 05242 O-Ring 6
Oil Seal Kit – Part #09612
32 07624 Radial Shaft Seal 3
33A 07627 O-Ring 3
Valve Assembly Kit – Part #09611
51A 05246 Valve Seat 1
51B 07653 O-Ring, Valve Seat 1
51C 05247 Inlet Valve Seat 1
51D 07732-0100 Valve Spring 1
51F 05248 Valve Spring Guide 1
52A 7658 O-Ring 2

Repair Kits Available

The repair kits listed to the right are available for this pump. If you need further information about these repair kits, or have questions about other specific parts for your pump, please contact you local Giant distributor or contact Giant customer service.
