Featured Image for CLP121A

A German-made reciprocating triplex plunger pump for liquid CO2 applications.

Features:
Spheroidal cast iron crankcase with sight glass and vented dipstick; forged, through-hardened, ground and polished crankshaft; bronze connecting rods; hardened stainless steel plunger bases; solid ceramic plungers; Rope packing/Teflon seals with EPDM O-rings; stainless steel valves and cast aluminum bronze manifold.

WARNING: This product might contain a chemical known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Specification US Metric
Flow15.9 GPM60 L/min
Maximum Discharge Pressure1740 PSI120 bar
Crankshaft Speed500 RPM
Power19.1 HP14.2 KW
Inlet Port Size(3) 1-1/2" BSP
Discharge Port Size(3) 1" BSP
Plunger Diameter1.42 in.36 mm
Stroke1.65 in.42 mm
Maximum Inlet Pressure870 PSI60 bar
Crankshaft Diameter35 mm
Crankshaft RotationTop of Pulley Towards Manifold
Crankshaft MountingEither Side
Crankcase Oil Capacity US101 fl.oz. 3.0 L
Weight119 lbs.54 kg
Manifold Material Aluminum Bronze
Crankcase Material Spheroidal Cast Iron
Plunger Material Solid Ceramic Oxide
Valve Material High Grade Stainless Steel
Seal Material Rope Packing/Teflon with EPDM O-Rings
The repair kits listed to the right are available for this pump. If you need further information about these repair kits, or have questions about other specific parts for your pump, please contact you local Giant distributor or contact Giant customer service.
ITEM# PART# DESCRIPTION Qty.
Plunger Packing Kit – Part #CP09716
36 CP13291-0020 Leakage Seal 3
38 CP07140-0003 O-Ring, EPDM 3
40 CP06917 V-Sleeve 9
40A CP06916 V-Sleeve, Teflon 6
Valve Assembly Kit – Part #CP09608
44A CP07150-0003 O-Ring, EPDM 9
46A CP07064 Valve Seat 6
46B CP07063 Valve Plate 6
46C CP07062-0100 Valve Spring 6
46D CP07066 Spacer Pipe 6
Oil Seal Kit – Part #CP09577
31 CP07133 Oil Seal 3

Horsepower Specifications

RPM GPM 500 PSI 1000 PSI 1500 PSI 1740 PSI
200 6.36 2.2 4.4 6.6 7.6
300 9.54 3.3 6.6 9.9 11.5
400 12.7 4.4 8.8 13.1 15.2
500 15.9 5.5 11.0 16.5 19.1

Images Open in new Window/Tab

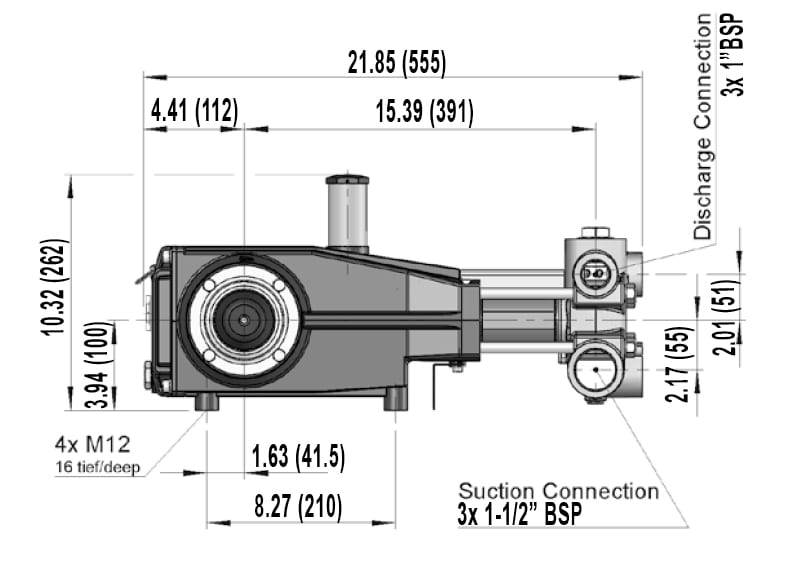

  • Dimensional Drawing (Side) Open

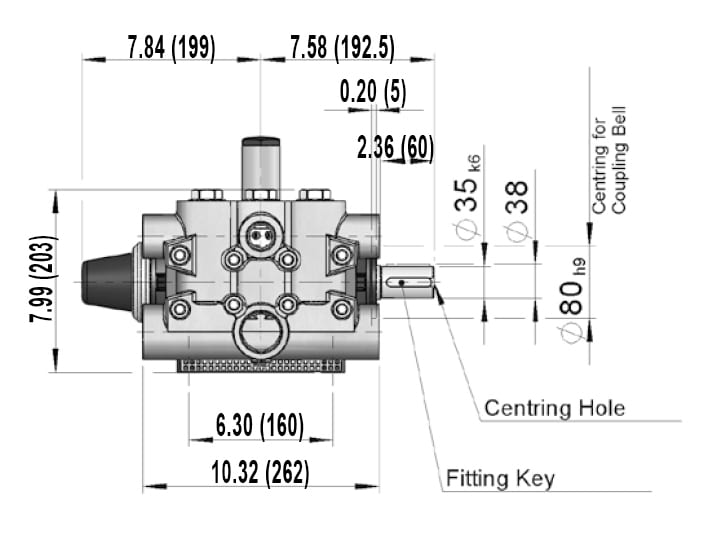

  • Dimensional Drawing (Front) Open

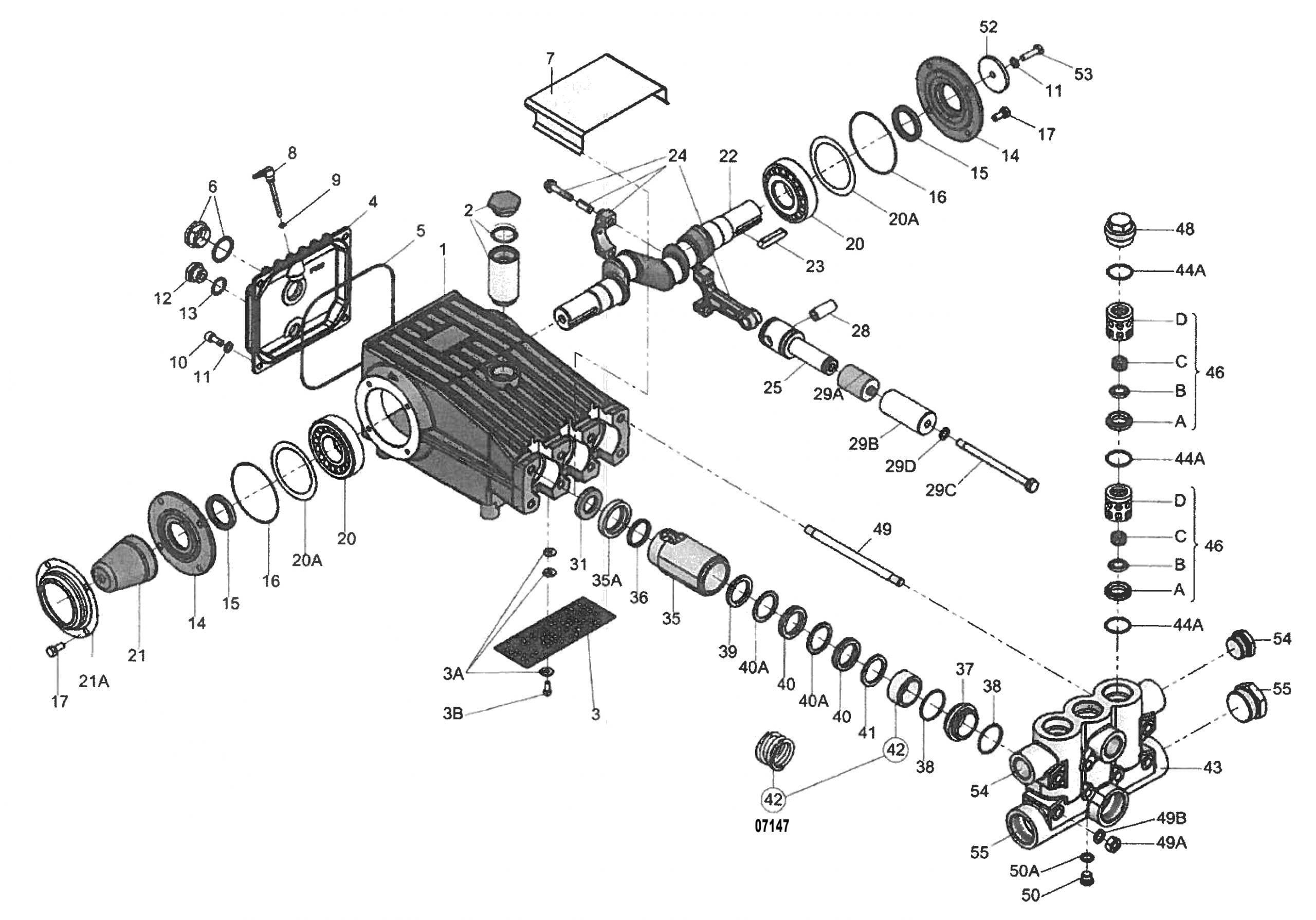

  • CLP121A Exploded View
  • CLP121A Parts List
  • CLP121A Torque Specifications

Literature

Documents open in new window/tab.

  • Pump Assembly Instructions
  • Giant Industries Limited Warranty
  • CLP121A Installation Instructions
  • CLP121A Repair Instructions
  • Troubleshooting Guide
