Pumping liquid CO₂ requires unique challenges to high pressure pumps. CO₂ has a tendency to go to a gaseous state, so strict control of the temperature and pressure on the inlet and discharge of the system will help maintain the CO₂ in a liquid state. Typical applications can be industrial laundry cleaning, CO₂ re-fill stations and cleaning of parts with CO₂. These pumps have a flow range up to 52 GPM (196 L/min).

  Pump Model Maximum Flow Maximum Pressure Speed Power Consumption

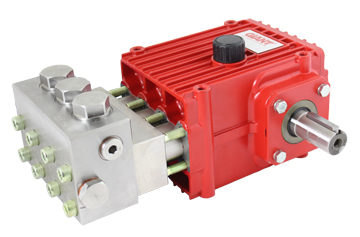

CP460 2.0 GPM
7.5 L/min 		6000 PSI
580 bar 		750 RPM 8.3 BHP
6.2 KW
CP218-NPT 1.4 GPM
5.3 L/min 		2000 PSI
140 bar 		750 RPM 2.0 BHP
1.5 KW
CP220-NPT 1.9 GPM
7.3 L/min 		2000 PSI
140 bar 		750 RPM 2.7 BHP
2.0 KW
CP218-5123 1.4 GPM
5.3 L/min 		2000 PSI
140 bar 		750 RPM 2.0 BHP
1.5 KW
CP230-NPT 0.45 GPM
1.7 L/min 		2000 PSI
140 bar 		750 RPM 0.7 BHP
0.5 KW
CLP124 Null GPM
Null L/min 		PSI
Null bar 		RPM BHP
KW
CP425-5123 5.5 GPM
21.0 L/min 		2030 PSI
140 bar 		750 RPM 7.8 BHP
5.8 KW
CGP7163 59.3 GPM
224.4 L/min 		1160 PSI
80 bar 		480 RPM BHP
KW
CP420-5123 6.4 GPM
24.3 L/min 		1740 PSI
120 bar 		750 RPM 7.7 BHP
5.7 KW
CP217-NPT Null GPM
Null L/min 		PSI
Null bar 		RPM BHP
KW
CP217-5123 0.73 GPM
2.7 L/min 		2000 PSI
140 bar 		750 RPM 1.0 BHP
0.75 KW
CP220-5123 1.9 GPM
7.3 L/min 		2000 PSI
140 bar 		750 RPM 2.7 BHP
2.0 KW
CP230-5123 0.45 GPM
1.7 L/min 		2000 PSI
140 bar 		750 RPM 0.62 BHP
0.46 KW

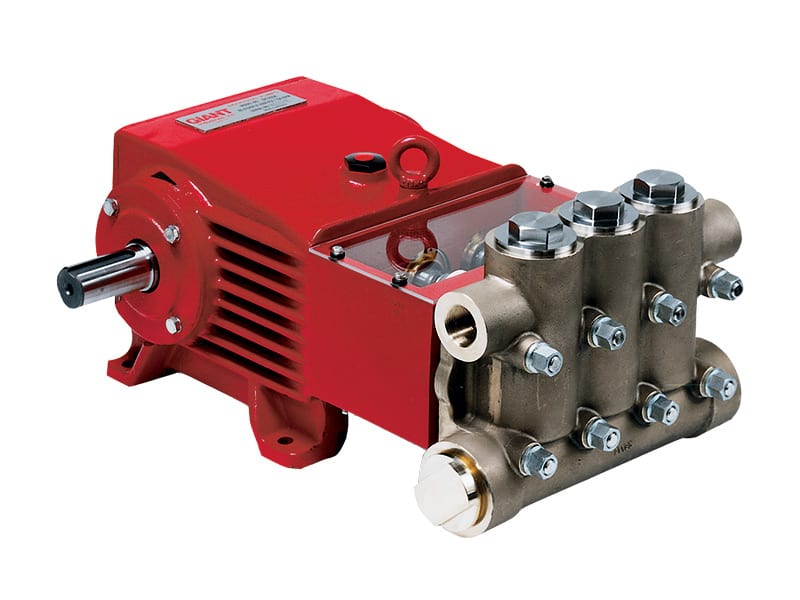

CGP7255A 51.7 GPM
196 L/min 		1450 PSI
100 bar 		550 RPM 55.2 BHP
41.2 KW
CP218 1.4 GPM
5.3 L/min 		2000 PSI
140 bar 		750 RPM 2.0 BHP
1.5 KW
CP220 1.9 GPM
7.3 L/min 		2000 PSI
140 bar 		750 RPM 2.7 BHP
2.0 KW
CP230 0.45 GPM
1.7 L/min 		2000 PSI
140 bar 		750 RPM 0.7 BHP
0.5 KW

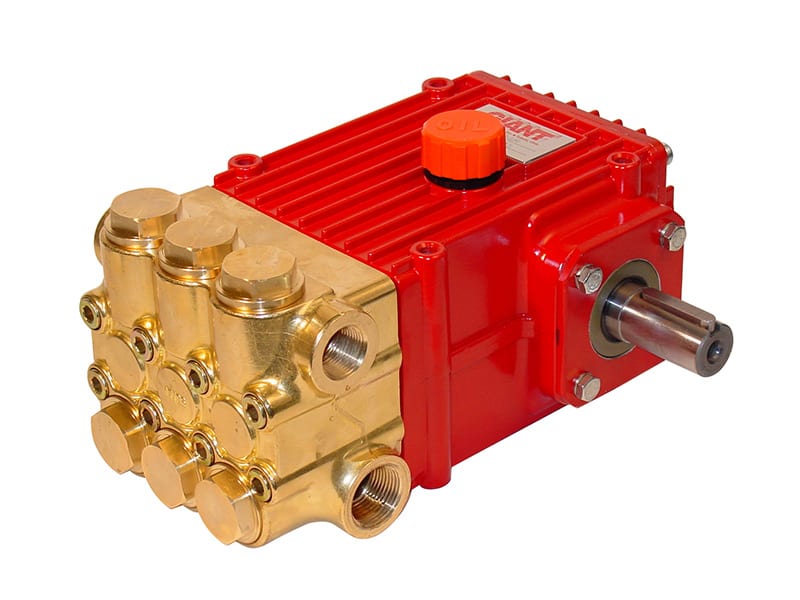

CP420 6.4 GPM
24.3 L/min 		1740 PSI
120 bar 		750 RPM 7.7 BHP
5.7 KW
CP425 5.5 GPM
21.0 L/min 		2030 PSI
140 bar 		750 RPM 7.8 BHP
5.8 KW
CP470 9.25 GPM
35.0 L/min 		1740 PSI
120 bar 		750 RPM 11.1 BHP
8.3 KW

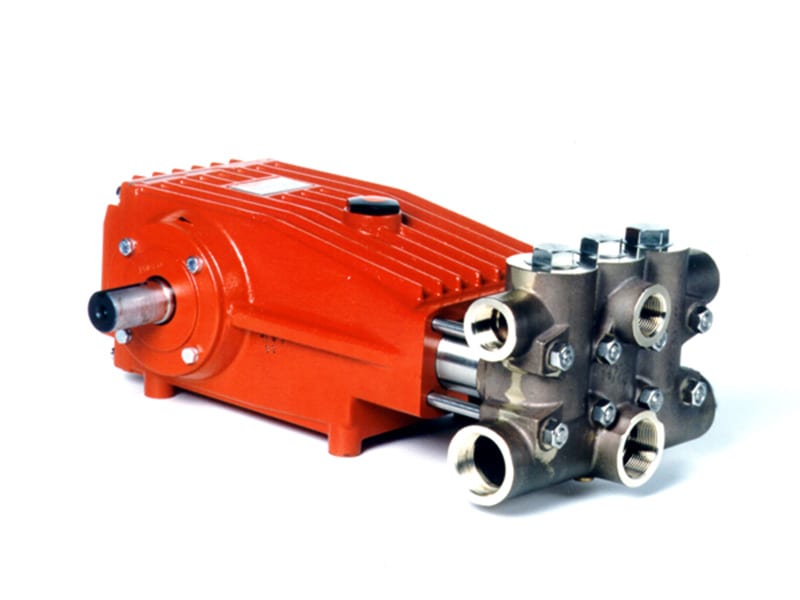

CLP121A 16.3 GPM
61.6 L/min 		1740 PSI
120 bar 		500 RPM 15.6 BHP
11.6 KW
CLP121A-4000 16.3 GPM
61.6 L/min 		1740 PSI
120 bar 		500 RPM 15.6 BHP
11.6 KW
PUMP CATEGORIES:
Service & Repair

Giant provides service on each pump and accessory that we sell. Many basic repair procedures are covered in the Giant repair manual. For all other questions on service or repair needs please contact your local Giant distributor.
