SP100HT

A German-made reciprocating triplex plunger pump for high temperature applications.

Features:
Aluminum crankcase with sight glass and vented dipstick; forged, through-hardened, ground and polished crankshaft; bronze connecting rods; hardened stainless steel plunger bases; solid ceramic plungers; high temperature nitrile seals (with fabric reinforcing); stainless steel valves and forged brass manifold.

  • SP100HT Exploded View
  • SP100HT Parts List
  • Giant Industries Limited Warranty
  • SP100HT Installation Instructions
  • SP100HT Repair Instructions
  • Troubleshooting Guide

SPECIFICATIONS

U.S. Metric
900 RPM
Flow 6.1 GPM 23 L/min
Pressure 900 PSI 60 bar
750 RPM
Flow 5.1 GPM 19.1 L/min
Pressure 900 PSI 60 bar
Plunger Diameter 1.02″ 26 mm
Stroke 0.79″ 20 mm
Max. Temperature of Pumped Fluids @ 900 RPM 194 ºF 90 ºC
Max. Temperature of Pumped Fluids @ 750 RPM 221 ºF 105 ºC
Inlet Ports (2) 3/4″ BSP
Discharge Ports (2) 1/2″ BSP
Shaft Rotation Top of Pulley Towards Manifold
Shaft Mounting Either Side
Weight 41.9 lbs. 19 kg

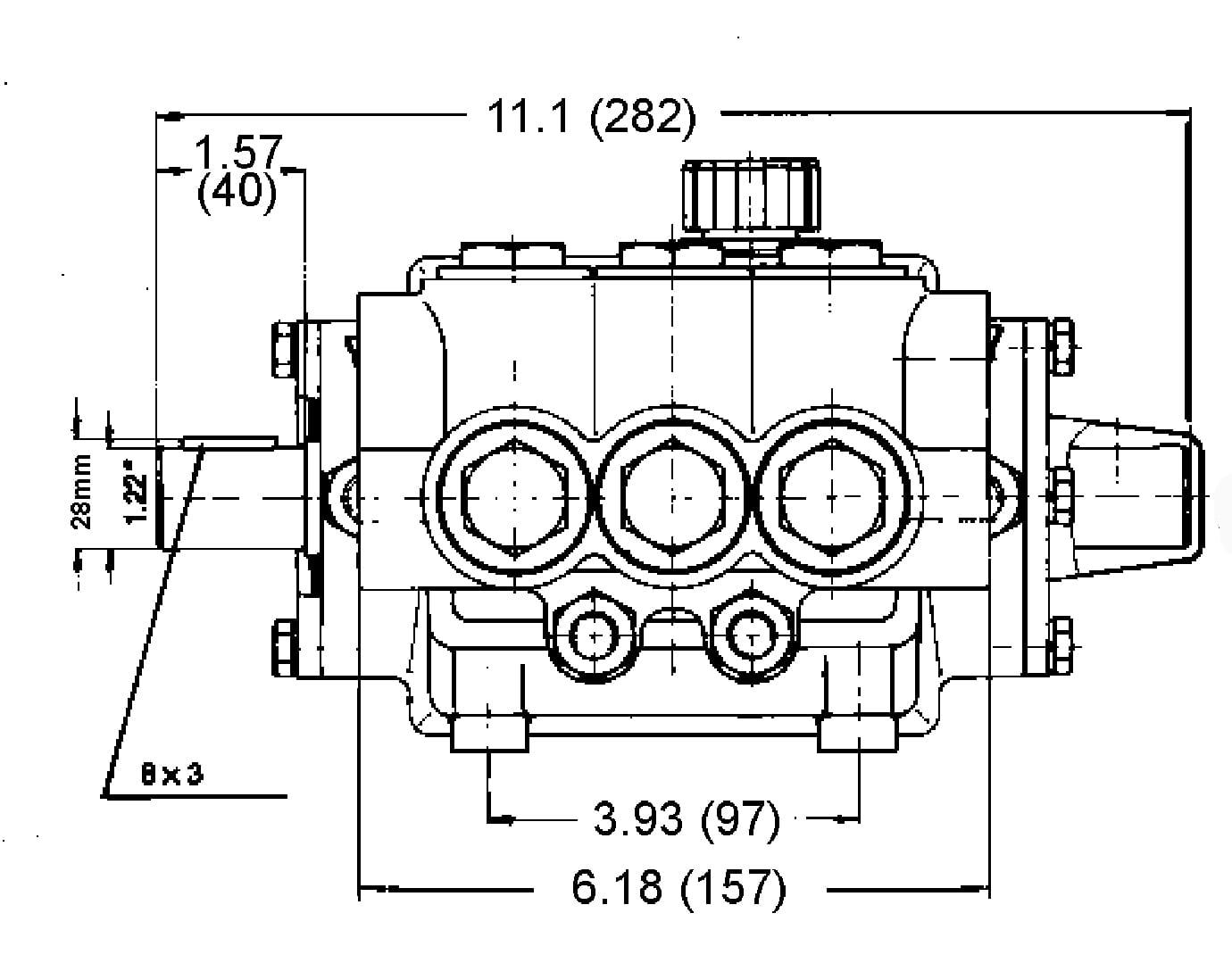

Click the image to enlarge


HORSEPOWER SPECIFICATIONS

RPM GPM GPH 200 PSI 400 PSI 600 PSI 900 PSI
250 1.69 101.67 0.23 0.47 0.70 1.05
500 3.39 203.33 0.47 0.93 1.40 2.10
750 5.08 305.00 0.70 1.40 2.10 3.16
900 6.10 366.00 0.84 1.68 2.52 3.79

Horsepower Requirements

The ratings shown are the power requirements for the pump. Gas engine power outputs must be approximately twice the pump power requirements shown above.

We recommend a 1.15 service factor be specified when selecting an electric motor as the power source. To compute specific pump horsepower requirements use the following formulas:
Electric HP = (GPM X PSI)/1450
Gas HP = (GPM X PSI)/1100


*Engine power varies based on horizontal or vertical orientation, as well as by makes and models from each manufacturer.


REPAIR KITS

ITEM# PART# DESCRIPTION Qty.
Plunger Packing Kit – Part #09591
38 06015 O-Ring 3
40 03036 O-Ring 3
42 07332 O-Ring 3
49 07344 O-Ring 1
50 11503 Sleeve 6
50A 11503 Sleeve 3
51A 11506 O-Ring 3
Valve Assembly Kit – Part #09592
34 05593 Discharge Spring Retainer 3
34A 07326-0100 Inlet Spring Retainer 3
35 07312-0100 Valve Spring 6
36 07327 Valve Plate 6
37 06014 Valve Seat 6
38 06015 O-Ring, Valve Seat 6
40 03036 O-Ring, Inlet Valve Retainer 3
42 07332 O-Ring, Inlet Plug 3
44 07214 O-Ring, Discharge Plug 3

Repair Kits Available

The repair kits listed to the right are available for this pump. If you need further information about these repair kits, or have questions about other specific parts for your pump, please contact you local Giant distributor or contact Giant customer service.

PUMP CATEGORIES:
Service & Repair

Giant provides service on each pump and accessory that we sell. Many basic repair procedures are covered in the Giant repair manual. For all other questions on service or repair needs please contact your local Giant distributor.
