Featured Image for P470

A German-made reciprocating triplex plunger pump.

Features:
Aluminum crankcase with sight glass and vented dipstick; forged, through-hardened, ground and polished crankshaft; bronze connecting rods; hardened stainless steel plunger bases; solid ceramic plungers; nitrile seals (with fabric reinforcing); stainless steel valves; and forged brass manifold.

Options:
Gearbox and bell housings (to connect to gasoline, diesel, electric or hydraulic drive) and pulsator valve.

WARNING: This product might contain a chemical known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Specification US Metric
Flow18.4 GPM69.7 L/min
Maximum Discharge Pressure2000 PSI140 bar
Crankshaft Speed1450 RPM
Power25.8 HP19.2 KW
Max Temperature160 °F70 °C
Inlet Port Size(1) 1" BSP, (2) 3/4" BSP
Discharge Port Size(2) 3/4" BSP
Plunger Diameter1.18 in.30 mm
Stroke0.94 in.24 mm
Maximum Inlet Pressure145 PSI10 bar
Crankshaft RotationTop of Pulley Towards Manifold
Crankshaft MountingEither Side
Crankcase Oil Capacity US27.1 fl. oz. 0.8 L
Weight39.7 lbs.18 kg
Manifold Material Forged Brass
Crankcase Material Aluminum
Plunger Material Solid Ceramic Oxide
Valve Material High Grade Stainless Steel
Seal Material Nitrile with Fabric Reinforcing
The repair kits listed to the right are available for this pump. If you need further information about these repair kits, or have questions about other specific parts for your pump, please contact you local Giant distributor or contact Giant customer service.
ITEM# PART# DESCRIPTION Qty.
Plunger Packing Kit – Part #09565
20A 08059 O-Ring 3
21A 07150 O-Ring 6
23 06931 Grooved Seal 6
24 06932 Support Ring 3
25B 02009 O-Ring 2
Valve Assembly Kit – Part #09566
27A 04365 Valve Assembly 6
31 07212 O-Ring 6
33 07214 O-Ring 3
Oil Seal Kit – Part #09306
19 08366 Oil Seal 3

Horsepower Specifications

RPM GPM 500 PSI 750 PSI 1000 PSI 1500 PSI 2000 PSI
1000 12.7 4.4 6.6 8.8 13.1 17.5
1100 14.0 4.8 7.2 9.7 14.5 19.3
1200 15.2 5.2 7.9 10.5 15.7 21.0
1300 16.5 5.7 8.5 11.4 17.1 22.8
1450 18.4 6.3 9.5 12.7 19.0 25.4

Images Open in new Window/Tab

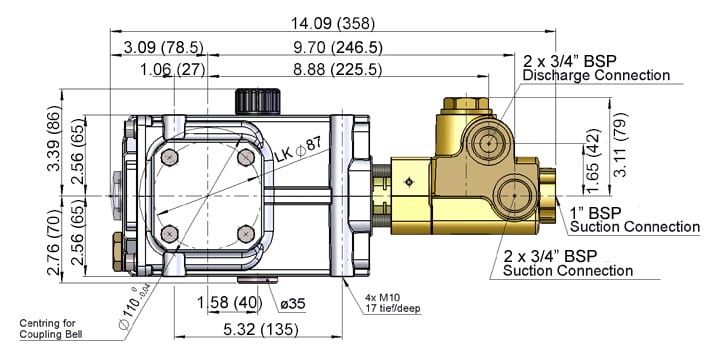

  • Dimensional Drawing (Side) Open

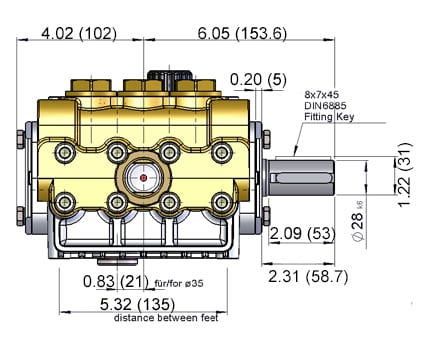

  • Dimensional Drawing (Front) Open

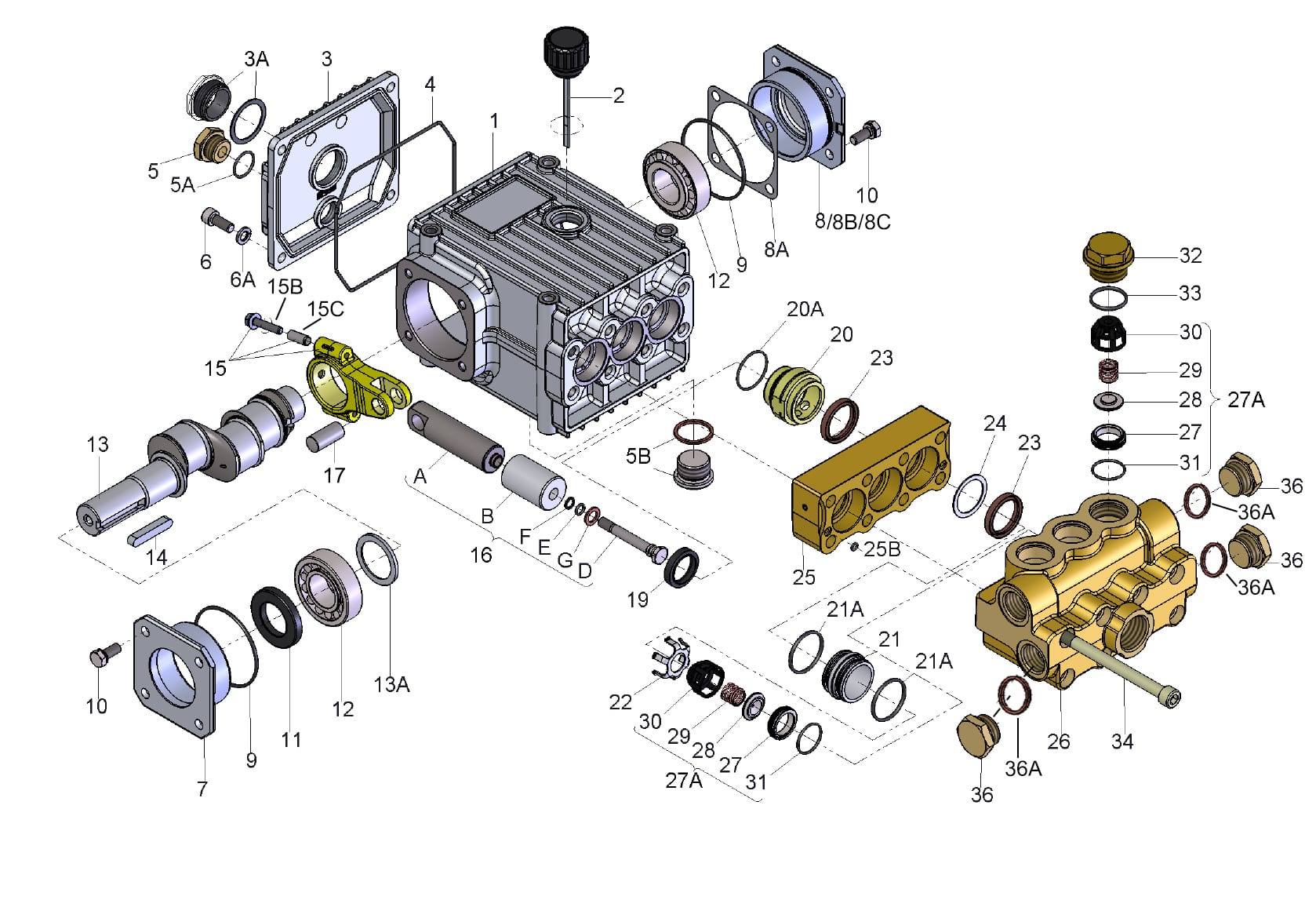

  • P470 Exploded View
  • P470 Parts List
  • P470 Torque Specifications

Literature

Documents open in new window/tab.

  • Pump Assembly Instructions
  • Giant Industries Limited Warranty
  • P470 Installation Instructions
  • P470 Repair Instructions
  • Troubleshooting Guide
