A German-made triplex plunger positive displacement pump with reciprocating plungers for direct or belt drive applications.
Anodized aluminum crankcase with sight glass and vented dipstick; forged, through-hardened, ground and polished crankshaft; bronze connecting rods; hardened stainless steel plunger bases; solid ceramic plungers; nitrile seals (with fabric reinforcing); stainless steel valves; and 316 stainless steel manifold.
Gearbox and bell housings (to connect to gasoline, diesel, electric or hydraulic drive), couplers (aluminum or Delrin).
22050A-5100 - Accumulators
22097-5000 - Pressure-Actuated Unloaders
22098-5000 - Pressure Regulators
22107-51 - Safety Valves
22531A-5100 - Pop-Off Valves
23910 - Electric Clutch
25000-04-1000SS - Pressure Gauges
|Flow||4.7 GPM||17.6 L/min|
|Discharge Pressure||2000 PSI||140 bar|
|Crankshaft Speed||1750 RPM|
|Power Required||6.5 hp||4.9 kW|
|Maximum Inlet Pressure||90 PSI||6.2 bar|
|Maximum Temperature||160 °F||70 °C|
|Plunger Diameter||0.71″||18 mm|
|Crankshaft Diameter||0.94″||24 mm|
|Crankshaft Rotation||Top of Pulley Towards Manifold|
|Key Width||0.31″||8 mm|
|Crankshaft Mounting||Either Side|
|Inlet Ports||(2) 1/2″ BSP|
|Discharge Ports||(2) 3/8″ BSP|
|Crankcase Oil Capacity||8.1 fl. oz.||0.24 L|
|Weight||13.25 lbs.||6.0 kg|
|Key Component Material|
|Manifold||316 Stainless Steel|
|Valves||316TI Stainless Steel|
|Seals||Nitrile With Fabric Reinforcing|
|RPM||GPM||800 PSI||1200 PSI||1500 PSI||1700 PSI||2000 PSI|
The ratings shown are the power requirements for the pump. Gas engine power outputs must be approximately twice the pump power requirements shown above.
We recommend a 1.15 service factor be specified when selecting an electric motor as the power source. To compute specific pump horsepower requirements use the following formulas:
Electric HP = (GPM X PSI)/1450
Gas HP = (GPM X PSI)/1100
*Engine power varies based on horizontal or vertical orientation, as well as by makes and models from each manufacturer.

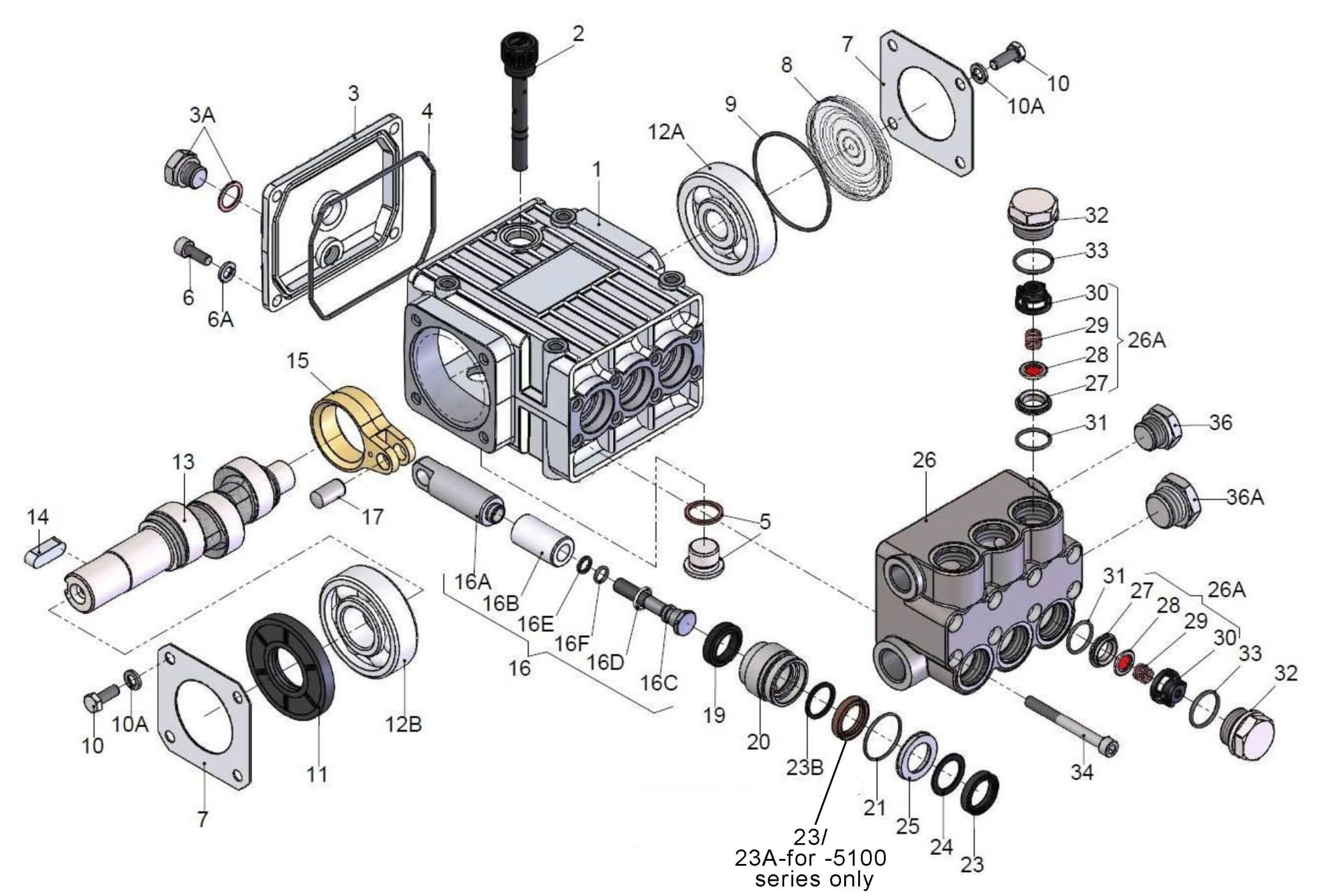

|Plunger Packing Kit – Part #09602-0011|
|23||08087-0010||Grooved Seal, Viton||6|
|Valve Assembly Kit – Part #09139-0011|
|Oil Seal Kit – Part #09144|
Repair Kits Available
The repair kits listed to the right are available for this pump. If you need further information about these repair kits, or have questions about other specific parts for your pump, please contact you local Giant distributor or contact Giant customer service.
