P207-5125
WARNING: This product might contain a chemical known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
| Specification | US | Metric |
|---|---|---|
| Flow | 0.9 GPM | 3.4 L/min |
| Maximum Discharge Pressure | 2500 PSI | 170 bar |
| Crankshaft Speed | 1750 RPM | |
| Power | 1.5 HP | 1.1 KW |
| Max Temperature | 160 °F | 70 °C |
| Inlet Port Size | (2) 1/2" BSP | |
| Discharge Port Size | (2) 3/8" BSP | |
| Plunger Diameter | 0.47 in. | 12 mm |
| Stroke | 0.25 in. | 6.3 mm |
| Maximum Inlet Pressure | 29 PSI | 2 bar |
| Crankshaft Diameter | 24 mm | |
| Crankshaft Rotation | Top of Pulley Towards Manifold | |
| Crankshaft Mounting | Either Side | |
| Crankcase Oil Capacity US | 8.1 fl. oz. | 0.24 l |
| Weight | 13.3 lbs. | 6.0 kg |
| Manifold Material | AISI 316 | |
| Plunger Material | Ceramic | |
| Valve Material | High-Grade Stainless Steel | |
| Seal Material | Teflon seals and Parofluor o-rings |
The repair kits listed to the right are available for this pump. If you need further information about these repair kits, or have questions about other specific parts for your pump, please contact you local Giant distributor or contact Giant customer service.

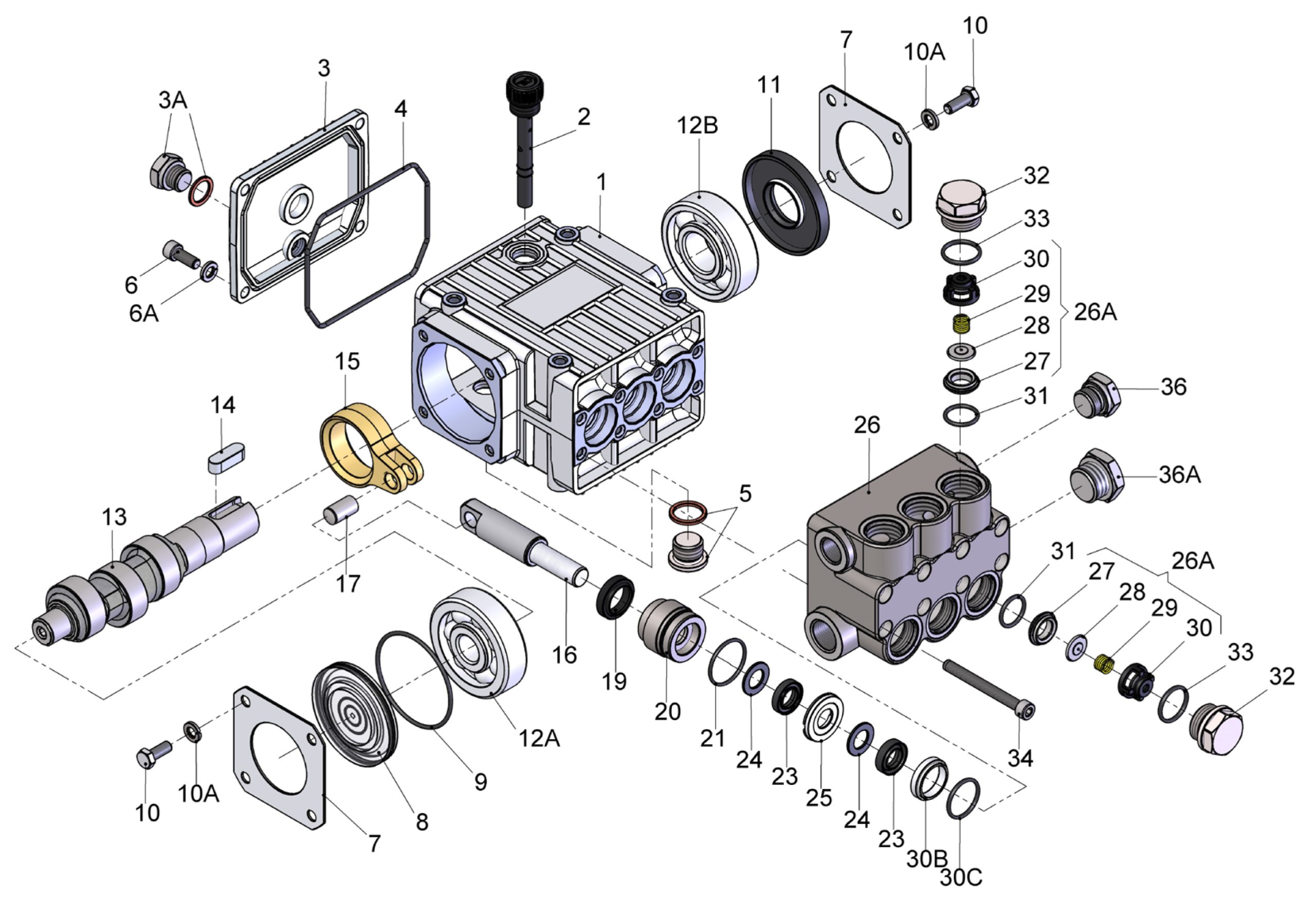

| ITEM# | PART# | DESCRIPTION | Qty. |
|---|---|---|---|
| Plunger Packing Kit – Part #09656-0025 | |||
| 21 | 08443-0005 | O-Ring | 3 |
| 23 | 07391-0020 | V-Sleeve | 6 |
| 24 | 07392 | Support Ring | 6 |
| Valve Assembly Kit – Part #09775 | |||
| 26A | 04273 | Valve Assembly | 6 |
| 31 | 07853-0005 | O-Ring | 6 |
| 33 | 07913-0005 | O-Ring | 6 |
| Oil Seal Kit – Part #09144 | |||
| 31 | 08356 | Oil Seal | 3 |
