MP4130-3100
A German-made triplex plunger positive displacement pump with reciprocating plungers for belt drive applications.
Features:
Spheroidal cast iron crankcase with sight glass and vented dipstick; forged, through-hardened, ground and polished crankshaft; bronze connecting rods; hardened stainless steel plunger bases; solid ceramic plungers; nitrile seals (with fabric reinforcing); stainless steel valves and nickel-aluminum-bronze manifold.
View Manual-
Share
Request Info
How to Order
WARNING: This product might contain a chemical known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
SPECIFICATIONS
| U.S. | Metric | |
|---|---|---|
| Flow | 15.4 GPM | 58.2 L/min |
| Maximum Discharge Pressure | 1600 PSI | 110 bar |
| Crankshaft Speed | 1100 RPM | |
| Power Consumption | 17.0 BHP | 12.7 kW |
| Maximum Inlet Pressure | 90 PSI | 6.2 bar |
| Maximum Temperature | 158 °F | 70 °C |
| Plunger Diameter | 1.2″ | 30 mm |
| Stroke | 1.0″ | 26 mm |
| Crankshaft Diameter | 28 mm | |
| Crankshaft Rotation | Top of Pulley Towards Manifold | |
| Crankshaft Mounting | Either Side | |
| Inlet Ports | (2) 1″ NPT | |
| Discharge Ports | (2) 3/4″ NPT | |
| Crankcase Oil Capacity | 33.8 fl. oz. | 1.0 L |
| Weight | 66 lbs. | 30 kg |
| Key Component Material | ||
| Manifold | Nickel-Aluminum Bronze | |
| Plungers | Solid Ceramic Oxide | |
| Valves | High Grade Stainless Steel | |
| Seals | Nitrile With Fabric Reinforcing | |
| Gear End | Spheroidal Cast Iron | |

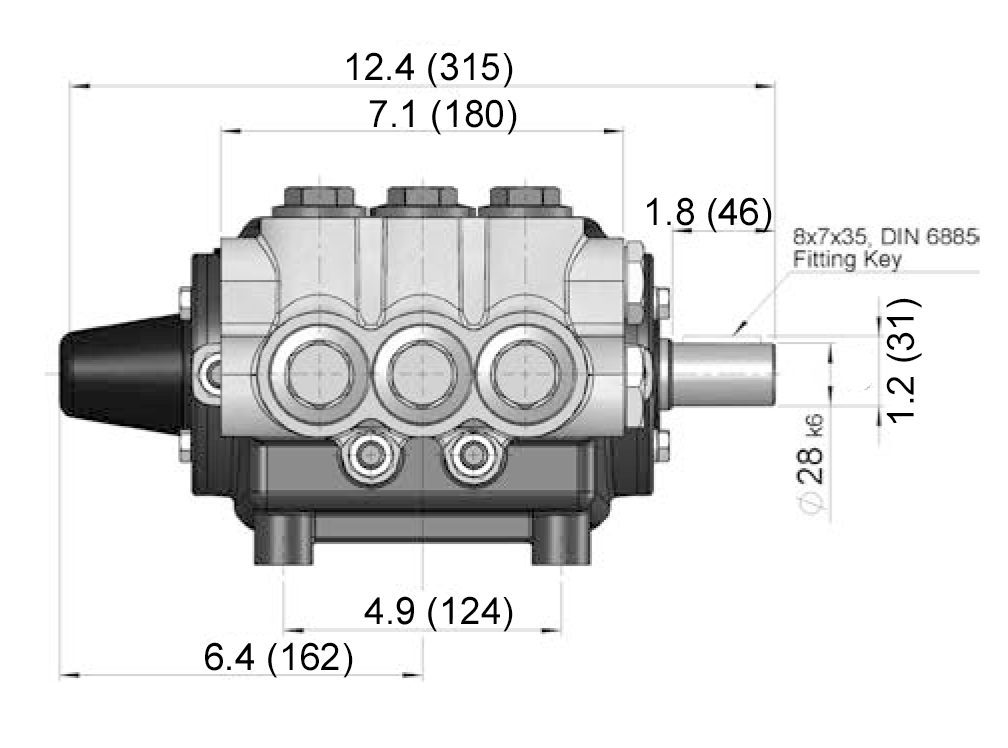

Click the image to enlarge
HORSEPOWER SPECIFICATIONS
| RPM | GPM | 500 PSI | 1000 PSI | 1300 PSI | 1600 PSI |
|---|---|---|---|---|---|
| 700 | 9.8 | 3.4 | 6.8 | 8.8 | 10.8 |
| 800 | 11.2 | 3.9 | 7.7 | 10.0 | 12.4 |
| 900 | 12.6 | 4.3 | 8.7 | 11.3 | 13.9 |
| 1000 | 14.0 | 4.8 | 9.7 | 12.6 | 15.4 |
| 1100 | 15.4 | 5.3 | 10.6 | 13.8 | 17.0 |
Horsepower Requirements
The ratings shown are the power requirements for the pump. Gas engine power outputs must be approximately twice the pump power requirements shown above.
We recommend a 1.15 service factor be specified when selecting an electric motor as the power source. To compute specific pump horsepower requirements use the following formulas:
Electric HP = (GPM X PSI)/1450
Gas HP = (GPM X PSI)/1100
*Engine power varies based on horizontal or vertical orientation, as well as by makes and models from each manufacturer.
REPAIR KITS
| ITEM# | PART# | DESCRIPTION | Qty. |
|---|---|---|---|
| Seal Kit – Part # 09580 | |||
| 40 | 07272 | V-Sleeve | 9 |
| 42B | 06736 | O-Ring | 3 |
| 53 | 06965 | O-Ring | 3 |
| Valve Assembly Kit – Part #09581 | |||
| 44 | 07280-0100 | Valve Seat | 6 |
| 44A | 06003-0001 | O-ring | 6 |
| 45 | 07282 | Valve Plate | 6 |
| 46 | 07283 | Valve Spring | 6 |
| 47 | 04153 | Spring Tension Cap | 3 |
| 48A | 06965 | O-Ring, Plug | 3 |
| 53 | 06965 | O-Ring | 3 |
| 54 | 04154 | Spring Tension Disc | 3 |
Repair Kits Available
The repair kits listed to the right are available for this pump. If you need further information about these repair kits, or have questions about other specific parts for your pump, please contact you local Giant distributor or contact Giant customer service.
