MP4126HTC

WARNING: This product might contain a chemical known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

  • MP4126HTC Exploded View
  • MP4126HTC Parts

Sorry, there are no accessories associated with this product.

  • Giant Industries Limited Warranty
  • MP4126HTC Installation Instructions
  • MP4126HTC Repair Instructions
  • Troubleshooting Guide

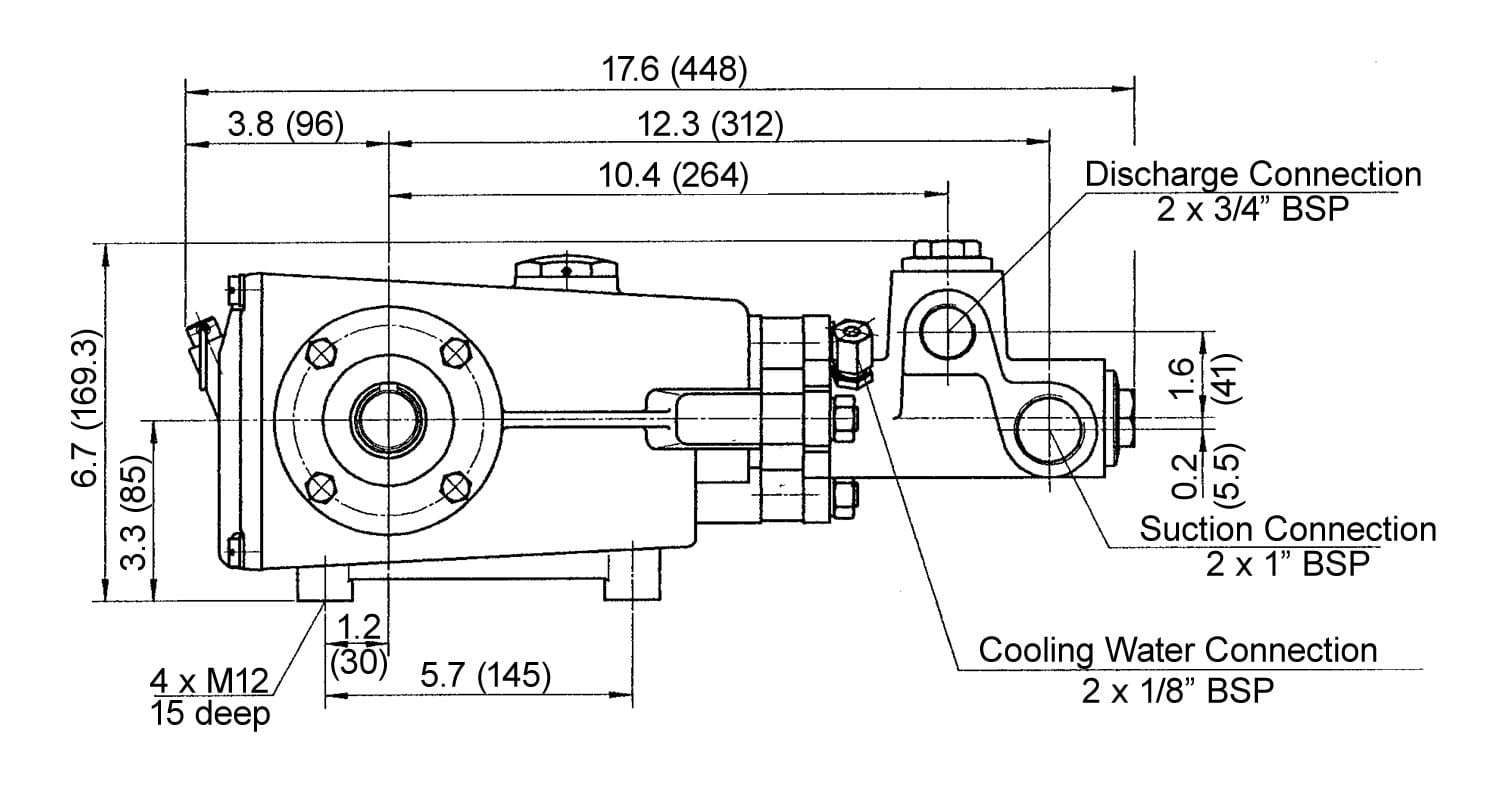

SPECIFICATIONS

U.S. Metric
750 RPM
Flow 12.2 GPM 46.2 L/min
Maximum Pressure 1160 PSI 80 bar
Plunger Diameter 1.18″ 30 mm
Stroke 1.18″ 30 mm
Max. Temperature of Pumped Fluids 221 ºF 105 ºC
Inlet Ports 1″ BSP
Discharge Ports 3/4″ BSP
Shaft Rotation Top of Pulley Towards Manifold
Crankshaft Diameter 28 mm
Shaft Mounting Either Side
Weight 66  lbs. 33 kg
Crankcase Oil Capacity 33.8 fl. oz. 1.0 L
Key Component Material
Manifold Special Brass
Plungers Solid Ceramic Oxide
Valves High Grade Stainless Steel
Seals Nitrile With Fabric Reinforcing
Gear End

Click the image to enlarge


HORSEPOWER SPECIFICATIONS

RPM GPM 290 PSI 580 PSI 725 PSI 870 PSI 1015 PSI 1160 PSI
400 6.5 1.3 2.6 3.3 3.9 4.6 5.2
500 8.1 1.6 3.2 4.1 4.9 5.7 6.5
600 9.8 2.0 3.9 4.9 5.9 6.9 7.8
700 11.4 2.3 4.6 5.7 6.8 8.0 9.1
750 12.2 2.4 4.9 6.1 7.3 8.5 9.8

Horsepower Requirements

The ratings shown are the power requirements for the pump. Gas engine power outputs must be approximately twice the pump power requirements shown above.

We recommend a 1.15 service factor be specified when selecting an electric motor as the power source. To compute specific pump horsepower requirements use the following formulas:
Electric HP = (GPM X PSI)/1450
Gas HP = (GPM X PSI)/1100


*Engine power varies based on horizontal or vertical orientation, as well as by makes and models from each manufacturer.


REPAIR KITS

ITEM# PART# DESCRIPTION Qty.
Plunger Packing Kit – Part #09532
40 06137 V-Sleeve 9
42B 07354 O-Ring 3
53 07332 O-Ring 3
Valve Assembly Kit – Part #09533
42B 07354 O-Ring 3
44 07280 Valve Seat 6
44A 07281 O-Ring 6
45 06791-0100 Vale Plate 6
46 07283 Valve Spring 6
47 07284 Spring Retainer, Discharge 3
48A 07332 O-Ring 3
53 07332 O-Ring 3
54 06115 Spring Retainer 3

Repair Kits Available

The repair kits listed to the right are available for this pump. If you need further information about these repair kits, or have questions about other specific parts for your pump, please contact you local Giant distributor or contact Giant customer service.

PUMP CATEGORIES:
Service & Repair

Giant provides service on each pump and accessory that we sell. Many basic repair procedures are covered in the Giant repair manual. For all other questions on service or repair needs please contact your local Giant distributor.
