GP8155-180

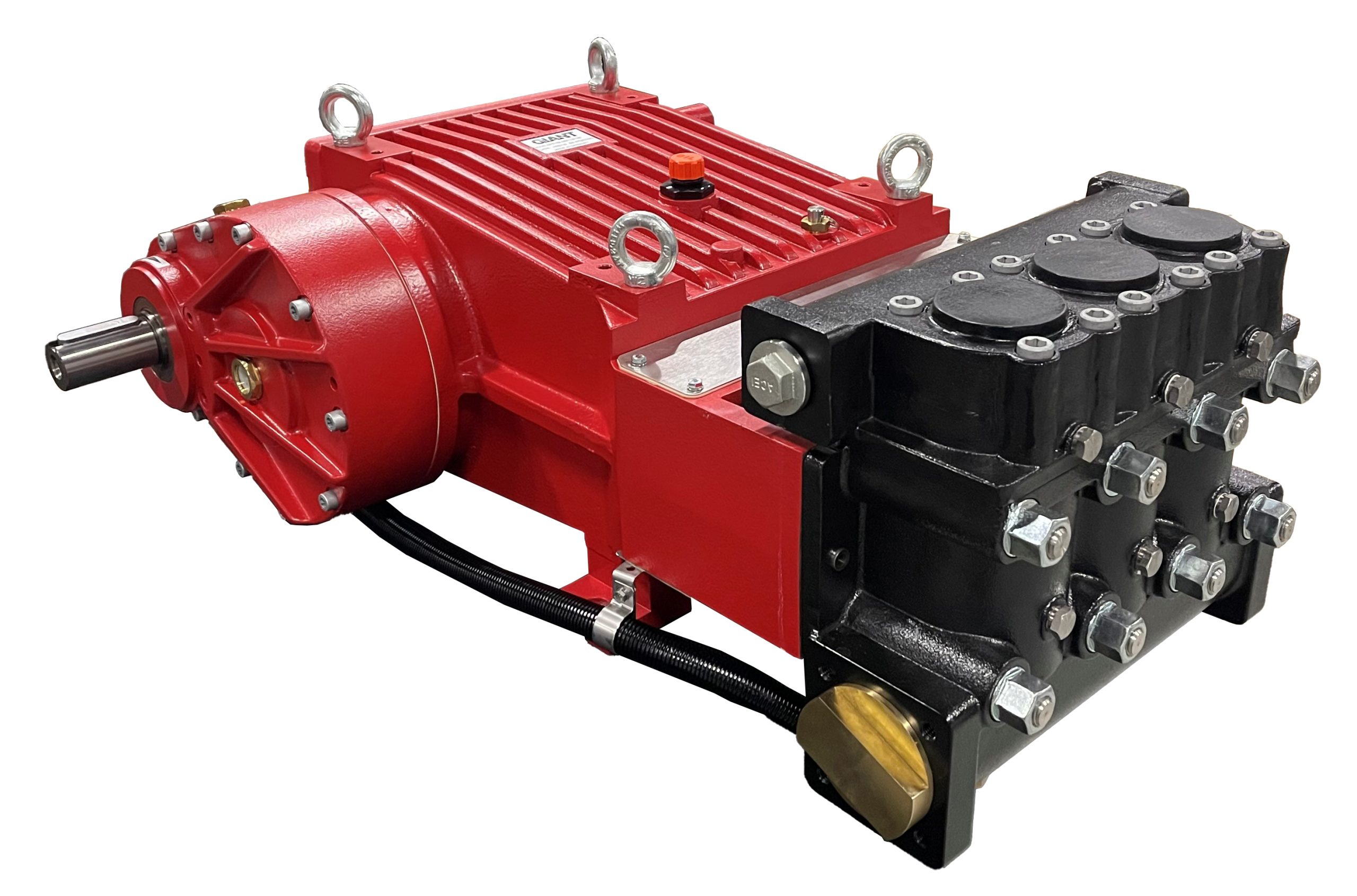

A German-made reciprocating triplex plunger pump.
Features:
Attached gearbox; spheroidal cast iron crankcase with vented dipstick; forged, through-hardened, ground and polished crankshaft; bronze connecting rods; hardened stainless steel plunger bases; solid ceramic plungers; nitrile seals with fabric reinforcing; stainless steel valves and nickel-plated Spheroidal cast iron manifold. Comes equipped with an integrated oil cooling system.
View Manual-
Share
Request Info
How to Order
SPECIFICATIONS
| U.S. | Metric | |
|---|---|---|
| 580 PSI | ||
| Max Flow (Continuous) | 75.5 GPM | 285 L/min |
| Max Discharge Pressure (Continuous) | 3000 PSI | 200 bar |
| Inlet Pressure | 29 PSI | 2 bar |
| Plunger Diameter | 2.17″ | 55 mm |
| Stroke | 2.83″ | 72 mm |
| Max Temp @ 1000 RPM | 86 °F | 30 °C |
| Crankshaft Diameter | 70 mm | |
| Crankcase Capacity | 4.2 gal | 16.0 L |
| Weight | 794 lbs. | 360 kg |
| Inlet Ports | (2) 3″ BSP | |
| Discharge Ports | (2) 1-1/4″ BSP | |
| Shaft Rotation | Top of Pulley Towards Manifold | |
| Shaft Mounting | Either Side | |
| Key Components | ||
| Manifold | Nickle-Plated Spheroidal Cast Iron | |

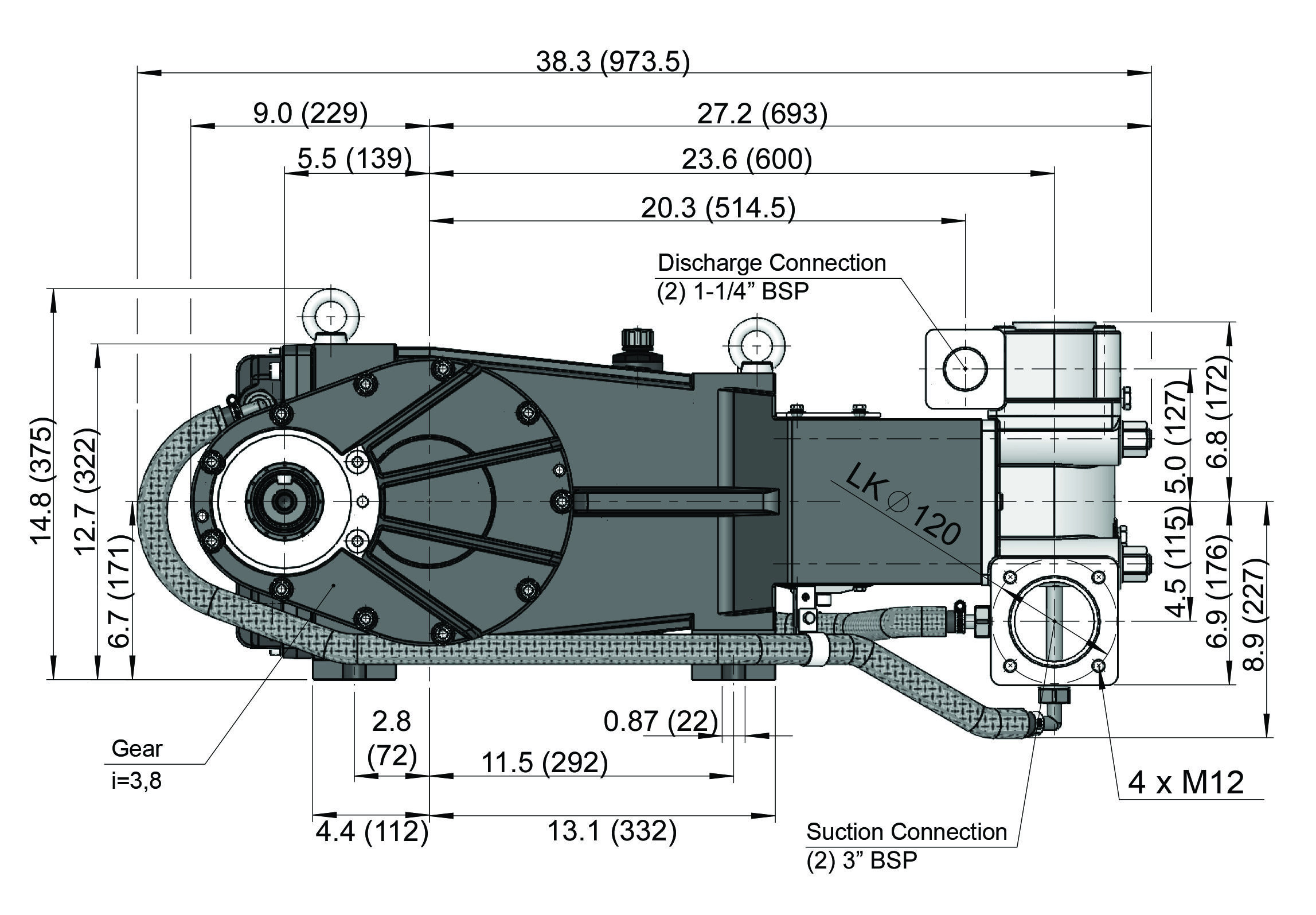

Click the image to enlarge
HORSEPOWER SPECIFICATIONS
| RPM | GPM | 500 PSI | 1000 PSI | 2000 PSI | 3000 PSI |
|---|---|---|---|---|---|
| 300 | 39 | 13.9 | 27.9 | 55.7 | 83.6 |
| 400 | 52 | 18.6 | 37.1 | 74.3 | 111.4 |
| 500 | 65 | 23.2 | 46.4 | 92.9 | 139.3 |
| 580 | 75.5 | 27.0 | 53.9 | 107.9 | 161.8 |
Horsepower Requirements
The ratings shown are the power requirements for the pump. Gas engine power outputs must be approximately twice the pump power requirements shown above.
We recommend a 1.15 service factor be specified when selecting an electric motor as the power source. To compute specific pump horsepower requirements use the following formulas:
Electric HP = (GPM X PSI)/1450
Gas HP = (GPM X PSI)/1100
*Engine power varies based on horizontal or vertical orientation, as well as by makes and models from each manufacturer.
REPAIR KITS
| ITEM# | PART# | DESCRIPTION | Qty. |
|---|---|---|---|
| Plunger Packing Kit – Part #09616 | |||
| 38A | 13286 | O-Ring | 6 |
| 38B | 05281 | Support Ring | 6 |
| 39A | 05066 | O-Ring | 3 |
| 40 | 07723 | Seal Ring | 3 |
| 42 | 05277 | Sleeve | 9 |
| Inlet Valve Assembly Kit – Part #09587 | |||
| 51B | 05078 | Inlet Valve Seat | 1 |
| 51C | 05079 | Valve Plate | 1 |
| 51D | 07658 | O-Ring | 1 |
| 51E | 05080 | Valve Spring | 1 |
| 51F | 05081 | Valve Spring Guide | 1 |
| 56A | 06258 | O-Ring | 1 |
| Discharge Valve Kit – Part #09588 | |||
| 52B | 05084 | Discharge Valve Seat | 1 |
| 52C | 05079 | Valve Plate | 1 |
| 52D | 06258 | O-Ring | 2 |
| 52E | 05080 | Valve Spring | 1 |
| 52F | 05081 | Valve Spring Guide | 1 |
| 56A | 06258 | O-Ring | 1 |
| Oil Seal Kit – Part #09584A (From 06/19) | |||
| 32 | 05058 | Radial Shaft Seal | 3 |
| 32A | 03118 | Oil Scraper | 3 |
| 33A | 05056 | O-Ring | 3 |
| Oil Seal Kit – Part #09584 (Prior to 06/19) | |||
| 32 | 05058 | Radial Shaft Seal | 3 |
| 33A | 05056 | O-Ring | 3 |
| Oil Seat Kit – Part #09584-R (Retrofit Oil Seal Kit) | |||
| 32 | 05058 | Radial Shaft Seal | 3 |
| 32A | 03118 | Oil Scraper | 3 |
| 33 | 03119 | Seal Retainer | 3 |
| 33A | 05056 | O-Ring | 3 |
Repair Kits Available
The repair kits listed to the right are available for this pump. If you need further information about these repair kits, or have questions about other specific parts for your pump, please contact you local Giant distributor or contact Giant customer service.
