GP7255A-5000

A German-made reciprocating triplex plunger pump.

Features:
Spheroidal cast iron crankcase with sight glass and vented dipstick; forged, through-hardened, ground and polished crankshaft; bronze connecting rods; hardened stainless steel plunger bases; solid ceramic plungers; nitrile seals with fabric reinforcing; stainless steel valves and nickel-plated Spheroidal cast iron manifold.

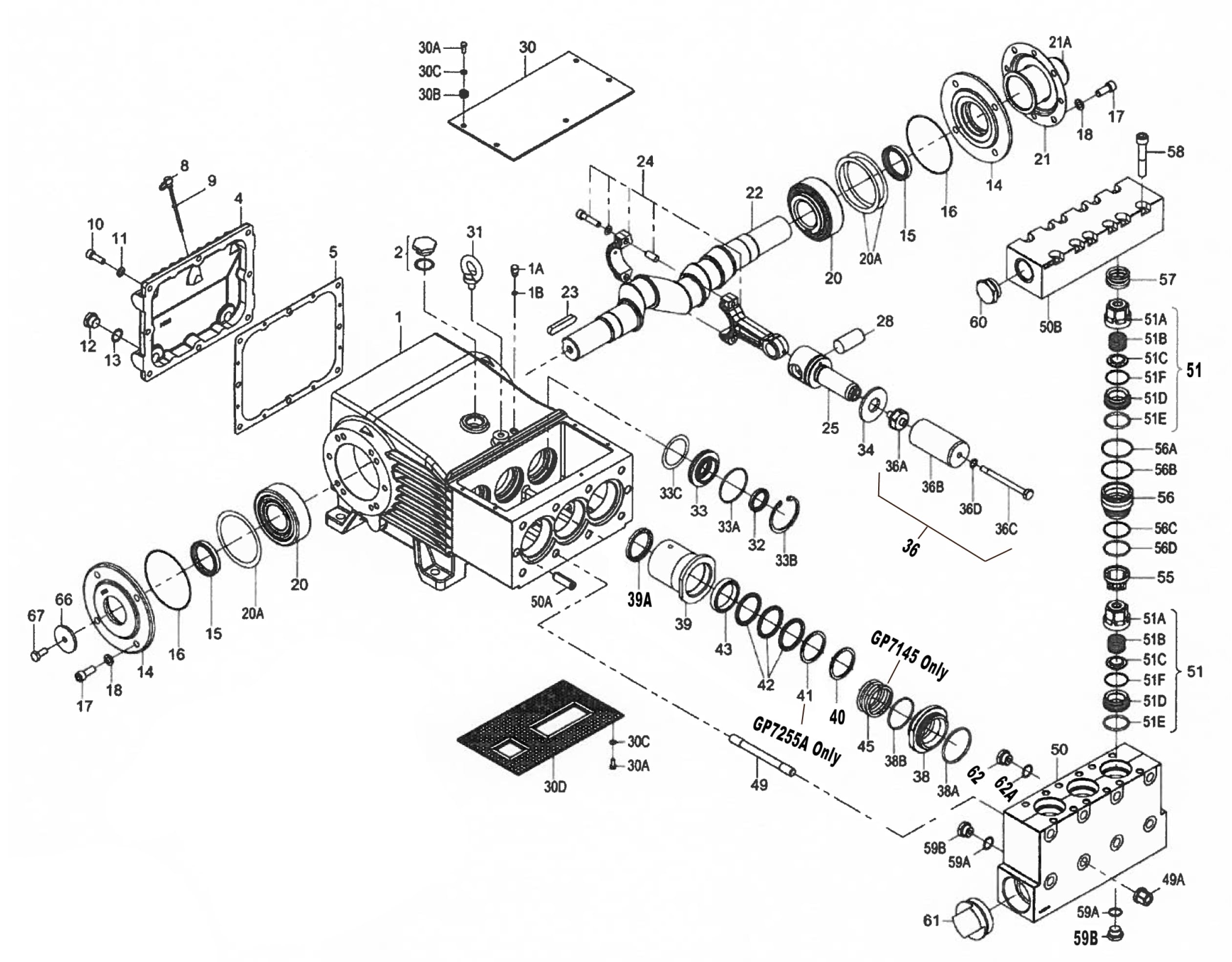

  • GP7255A-5000 Exploded View
  • GP7255A-5000 Parts List

Sorry, there are no accessories associated with this product.

  • Giant Industries Limited Warranty
  • GP7255A-5000 Installation Instructions
  • GP7255A-5000 Repair Instructions
  • Troubleshooting Guide

SPECIFICATIONS

U.S. Metric
Max Flow 65.8 GPM 250 L/min
Max Discharge Pressure 1500 PSI 100 bar
Max Speed 700 RPM
Inlet Pressure 145 PSI 10 bar
Plunger Diameter 2.17″ 55 mm
Stroke 2.05″ 52 mm
Max Temp @ 1000 RPM 140 °F 60 °C
Crankshaft Diameter 48 mm
Crankcase Capacity 1.9 gal 7.3 L
Weight 474 lbs. 215 kg
Inlet Ports (2) 2-1/2″ BSP
Discharge Ports (2) 1-1/4″ BSP
Shaft Rotation Top of Pulley Towards Manifold
Shaft Mounting Either Side
Key Component Material
Manifold Spheroidal Cast Iron
Plungers Solid Ceramic Oxide
Valves Stainless Steel
Seals Nitrile with Fabric Reinforcing
Gear End Spheroidal Cast Iron

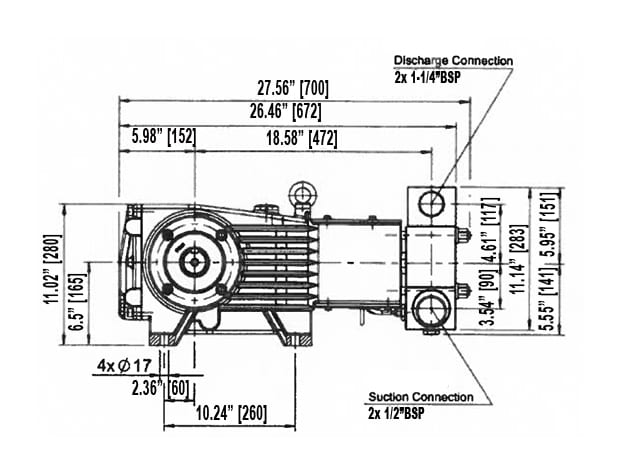

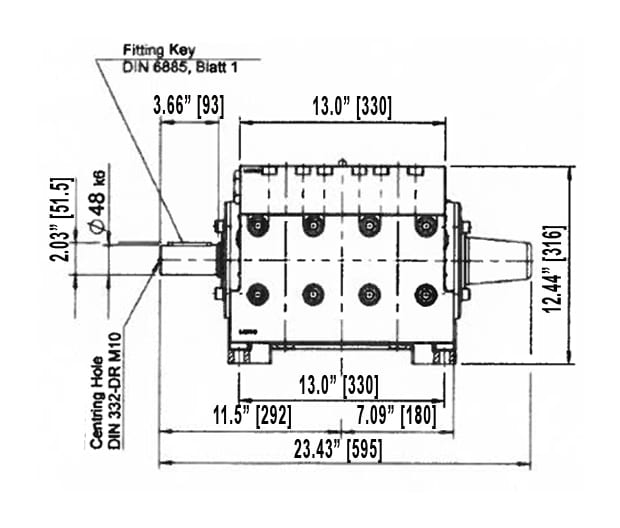

Click the image to enlarge


HORSEPOWER SPECIFICATIONS

RPM GPM 800 PSI 1000 PSI 1300 PSI 1500 PSI 2000 PSI*
479 45.0 24.8 31.0 40.3 46.6 62.1*
531 49.9 27.5 34.4 44.7 51.6 68.8*
585 55.0 30.3 37.9 49.3 56.9 75.9*
638 60.0 33.1 41.4 53.8 62.1 82.8*
700 65.8 36.3 45.4 59.0 68.1 90.8*
851* 80.0* 44.1* 55.2* 71.7* 82.8* 110.3*

Horsepower Requirements

The ratings shown are the power requirements for the pump. Gas engine power outputs must be approximately twice the pump power requirements shown above.

We recommend a 1.15 service factor be specified when selecting an electric motor as the power source. To compute specific pump horsepower requirements use the following formulas:
Electric HP = (GPM X PSI)/1450
as HP = (GPM X PSI)/1100


*Engine power varies based on horizontal or vertical orientation, as well as by makes and models from each manufacturer.


REPAIR KITS

ITEM# PART# DESCRIPTION Qty.
Seal Repair Kit – Part #09220
38A 13156 O-Ring 3
38B 07721 O-Ring 3
39A 07723 Grooved Ring 3
41 13158 Support Ring 3
42 07711 V-Sleeve 6
Valve Assembly Kit – Part #09659
51 05594 Inlet Valve Assembly 1
56A 07658 O-Ring 1
56B 07635 Support Ring 1
Oil Seal Kit – Part #09221
32 07624 Radial Shaft Seal 3
33A 07627 O-Ring 3

Repair Kits Available

The repair kits listed to the right are available for this pump. If you need further information about these repair kits, or have questions about other specific parts for your pump, please contact you local Giant distributor or contact Giant customer service.

PUMP CATEGORIES:
Service & Repair

Giant provides service on each pump and accessory that we sell. Many basic repair procedures are covered in the Giant repair manual. For all other questions on service or repair needs please contact your local Giant distributor.
