GP7150A

A German-made reciprocating triplex plunger pump.

Features
Spheroidal cast iron crankcase with sight glass and vented dipstick; forged, through-hardened, ground and polished crankshaft; bronze connecting rods; hardened stainless steel plunger bases; solid ceramic plungers; nitrile seals with fabric reinforcing; stainless steel valves and cast aluminum bronze manifold.

  • GP7150A Exploded View
  • GP7150A Parts List
  • Giant Industries Limited Warranty
  • GP7150A Installation Instructions
  • GP7150A Repair Instructions
  • Troubleshooting Guide

SPECIFICATIONS

U.S. Metric
700 RPM
Max Flow (Continuous) 54.5 GPM 206 L/min
Max Discharge Pressure (Continuous) 1900 PSI 131 bar
Inlet Pressure 145 PSI 10 bar
Plunger Diameter 1.97″ 50 mm
Stroke 1.89″ 48 mm
Max Temp @ 1000 RPM 140 °F 60 °C
Crankshaft Diameter 48 mm
Crankcase Capacity 1.6 gal 6.0 L
Weight 455 lbs. 206 kg
Inlet Ports (2) 2-1/2″ NPT
Discharge Ports (2) 1-1/4″ NPT
Shaft Rotation Top of Pulley Towards Manifold
Shaft Mounting Either Side
Key Components
Manifold Aluminum Bronze
Plungers Solid Ceramic Oxide
Valve Duplex Steel
Seals Nitril fabric reinforcing
Gear End Spheroidal Cast Iron

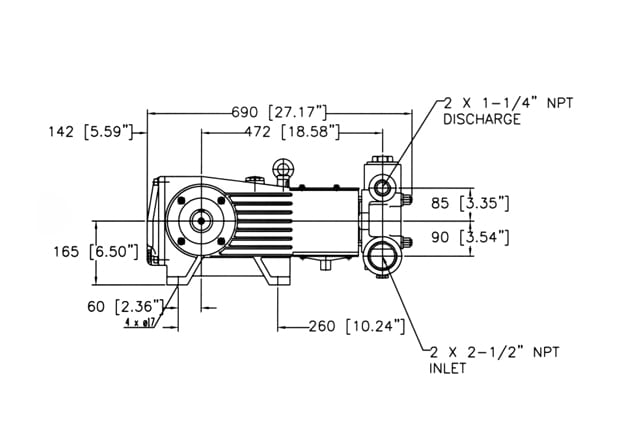

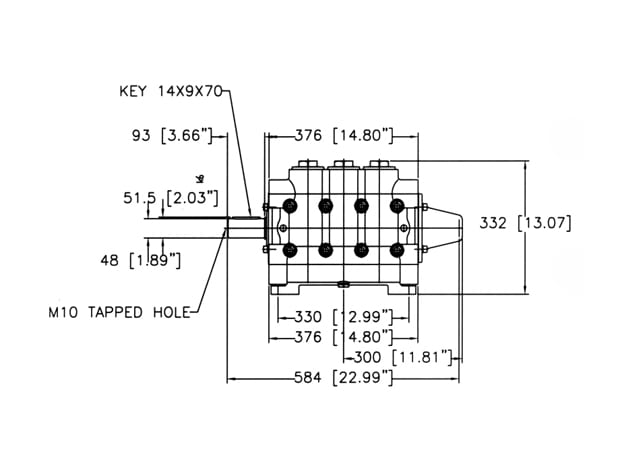

Click the image to enlarge


HORSEPOWER SPECIFICATIONS

RPM GPM 800 PSI 1000 PSI 1300 PSI 1500 PSI 1900 PSI
300  23.4  13.4  16.7  21.7  25.1  31.8
400  31.2 17.8 22.3 29.0 33.4 42.3
500 38.9 22.2 27.8 36.1 41.7 52.8
600 46.7 26.7 33.4 43.4 50.0 63.4
700 54.5 31.1 38.9 50.6 58.4 74.0

Horsepower Requirements

The ratings shown are the power requirements for the pump. Gas engine power outputs must be approximately twice the pump power requirements shown above.

We recommend a 1.15 service factor be specified when selecting an electric motor as the power source. To compute specific pump horsepower requirements use the following formulas:

Electric HP = (GPM X PSI)/1450

as HP = (GPM X PSI)/1100

*Engine power varies based on horizontal or vertical orientation, as well as by makes and models from each manufacturer.


REPAIR KITS

ITEM# PART# DESCRIPTION Qty.
Plunger Packing Kit – Part #9526
38A 13156 O-Ring 3
38B 06258 O-Ring 3
38C 07635 Support Ring 3
39A 07796 Grooved Seal 3
42 07638 V-Sleeve 6
Valve Assembly Kit – Part #09614
51B 08282 Valve Spring Guide 1
51C 07732-0100 Valve Spring 1
51D 13164 Valve Plate 1
51E 08283 Valve Seat 1
51F/56D 07653 O-Ring 2
51G/56C 13166 Support Ring 2
51H 07266 O-Ring 1
56A 07658 O-Ring 2
56B 07635 Support Ring 2
Oil Seal Kit – Part #09221
32 07624 Radial Shaft Seal 3
33A 07627 O-Ring 3

Repair Kits Available

The repair kits listed to the right are available for this pump. If you need further information about these repair kits, or have questions about other specific parts for your pump, please contact you local Giant distributor or contact Giant customer service.

PUMP CATEGORIES:
Service & Repair

Giant provides service on each pump and accessory that we sell. Many basic repair procedures are covered in the Giant repair manual. For all other questions on service or repair needs please contact your local Giant distributor.
