CP460

<p>A German-made triplex plunger positive displacement pump with reciprocating plungers for belt drive applications.</p><p>Features:<br /> Aluminum crankcase with sight glass and vented dipstick; forged, through-hardened, ground and polished crankshaft; bronze connecting rods; hardened stainless steel plunger bases; solid ceramic plungers; Teflon nitrile seals with EPDM O-Rings; stainless steel valves and stainless steel manifold.</p>

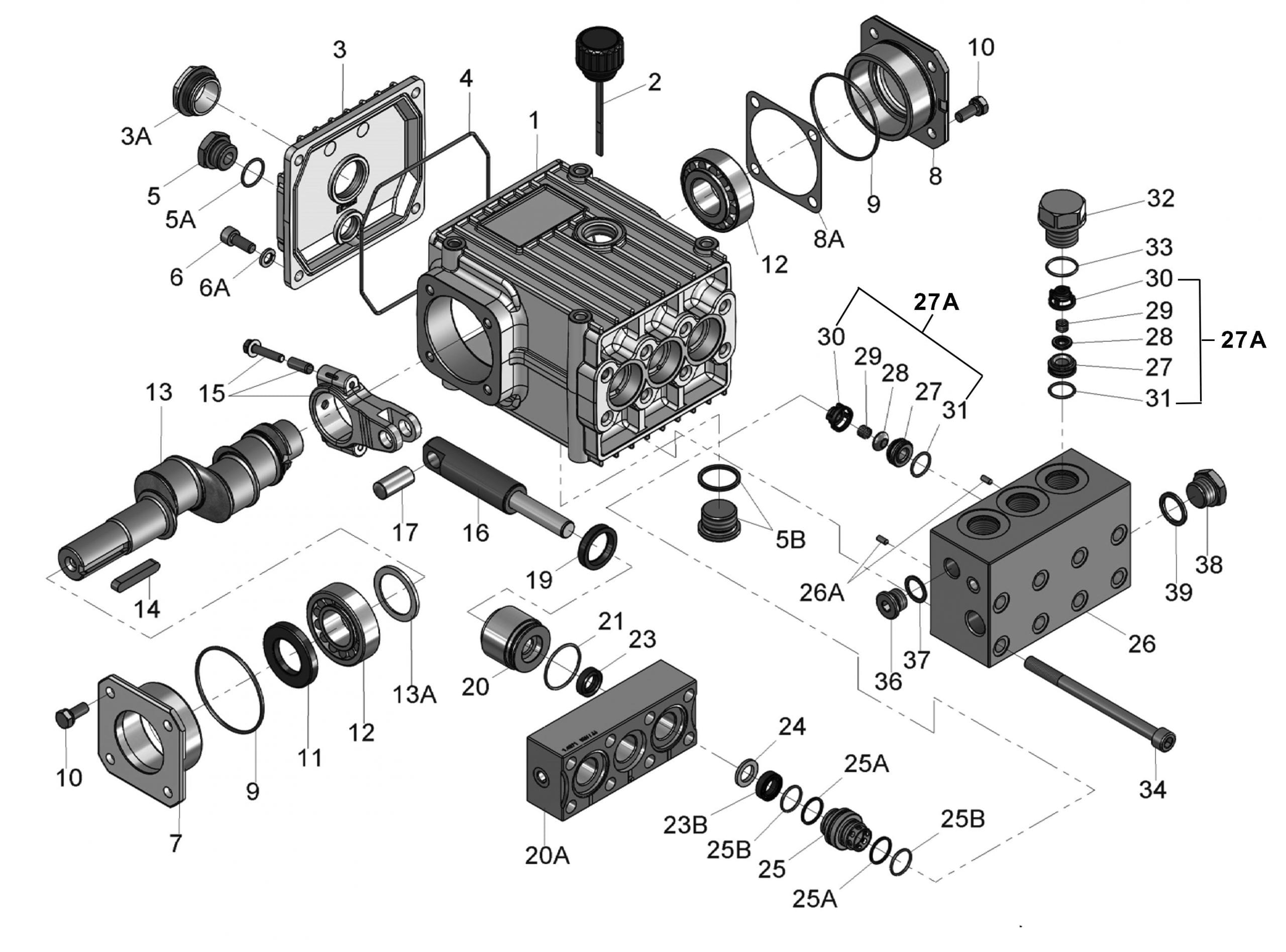

  • CP460 Exploded View
  • CP460 Parts List
  • CP460 Torque Specifications

Sorry, there are no accessories associated with this product.

  • Limited Warranty
  • CP460 Installation Instructions
  • CP460 Repair Instructions
  • Troubleshooting Guide

SPECIFICATIONS

U.S. Metric
Flow 2.0 GPM 7.5 L/min
Maximum Discharge Pressure 6000 PSI 580 bar
Crankshaft Speed 750 RPM
Inlet Pressure 14-870 PSI 1-60 bar
Temperature -40 to 160 °F -40 to 70 °C
Plunger Diameter 0.55″ 14 mm
Stroke 0.98″ 24 mm
Crankshaft Diameter 28 mm
Crankshaft Rotation Top of Pulley Towards Manifold
Key Width 0.31″ 8 mm
Crankshaft Mounting Either Side
Inlet Ports (2) 1/2″ BSP
Discharge Ports (2) 3/8″ BSP
Crankcase Oil Capacity 27 fl. oz. 0.8 L
Weight 42 lbs. 21 kg
Key Component Material
Manifold High Grade Stainless Steel
Plungers Solid Ceramic Oxide
Valves High Grade Stainless Steel
Seals Nitrile With Fabric Reinforcing
Gear End Aluminum

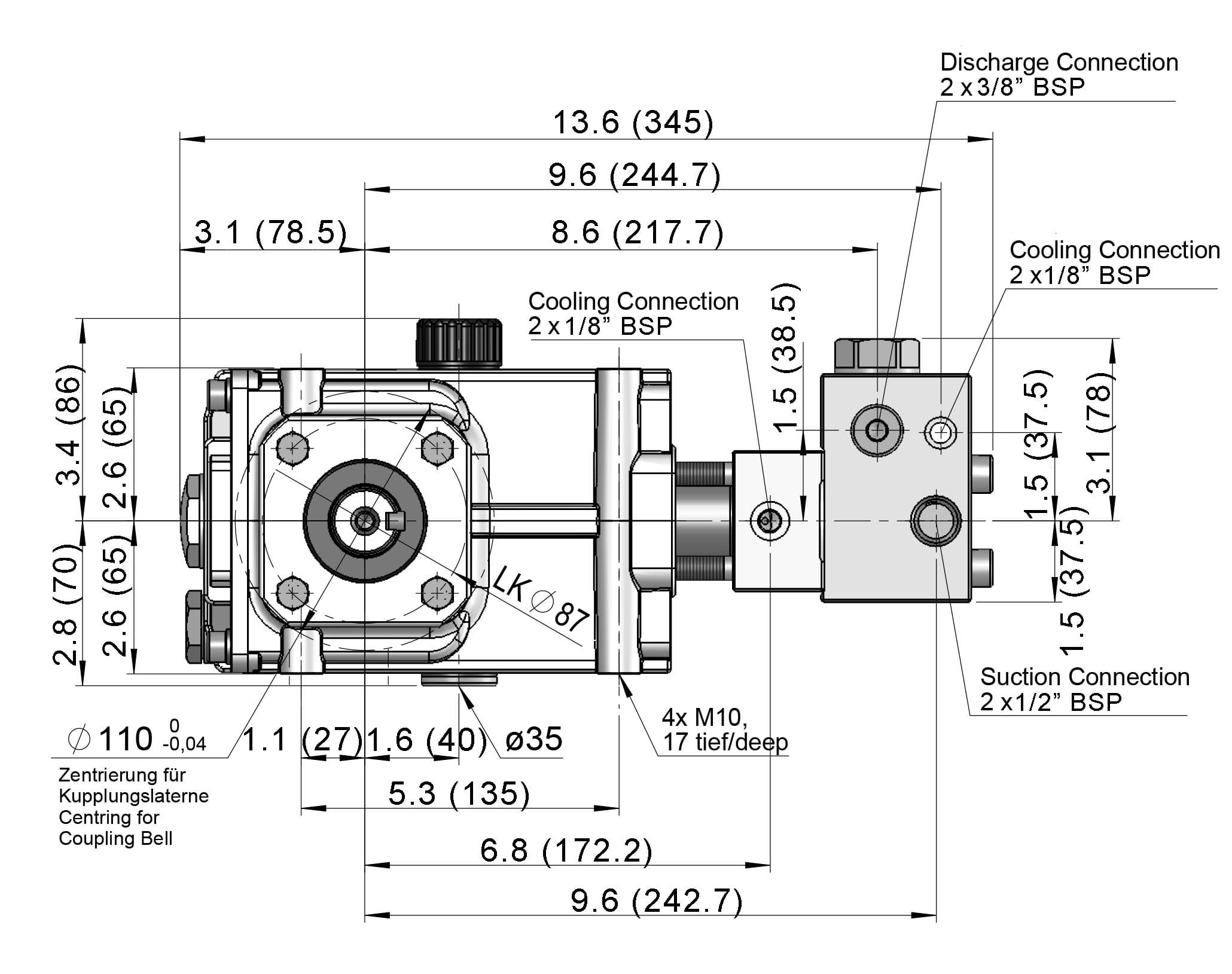

Click the image to enlarge


HORSEPOWER SPECIFICATIONS

RPM GPM 3000 PSI 4000 PSI 5000 PSI 6000 PSI
150 0.40 0.8 1.1 1.4 1.7
250 0.67 1.4 1.9 2.3 2.8
350 0.93 1.9 2.6 3.2 3.9
450 1.2 2.5 3.3 4.1 5.0
550 1.5 3.1 4.1 5.2 6.2
650 1.7 3.5 4.7 5.9 7.0
750 2.0 4.1 5.5 6.9 8.3

Horsepower Requirements

The ratings shown are the power requirements for the pump. Gas engine power outputs must be approximately twice the pump power requirements shown above.

We recommend a 1.15 service factor be specified when selecting an electric motor as the power source. To compute specific pump horsepower requirements use the following formulas:
Electric HP = (GPM X PSI)/1450
as HP = (GPM X PSI)/1100


*Engine power varies based on horizontal or vertical orientation, as well as by makes and models from each manufacturer.


REPAIR KITS

ITEM# PART# DESCRIPTION Qty.
Plunger Packing Kit – Part #CP09499-0023
21 CP07266-0003 O-Ring 3
23 CP04762 Grooved Seal Packing 3
23B CP06483-0020 Grooved Seal, Teflon 3
24 CP04582 Pressure Ring 3
25A CP04764 Support Ring 6
25B CP06818 O-Ring 6
Valve Assembly Kit – Part #CP09498-0003
27A CP05543 Valve Assembly 6
33 CP05545-0003 O-Ring 3
Oil Seal Kit – Part #09641
19 CP05444 Oil Seal 3

Repair Kits Available

The repair kits listed to the right are available for this pump. If you need further information about these repair kits, or have questions about other specific parts for your pump, please contact you local Giant distributor or contact Giant customer service.
