P59

A German-made reciprocating triplex plunger pump.

Features:
Aluminum crankcase with sight glass and vented dipstick; forged, through-hardened, ground and polished crankshaft; bronze connecting rods; hardened stainless steel plunger bases; solid ceramic plungers; nitrile seals (with fabric reinforcing); stainless steel valves and forged brass manifold.

Options:
Gearbox and bell housings (to connect to gasoline, diesel, electric or hydraulic drive) and pulsator valve.

SPECIFICATIONS

U.S. Metric
1450 RPM
Max Flow (Continuous) 7.5 GPM 28.3 L/min
Max Discharge Pressure (Continuous) 1900 PSI 130 bar
1750 RPM
Flow (Intermittent) 9.0 GPM 32.8 L/min
Max Discharge Pressure (Intermittent) 1000 PSI 70 bar
Max Inlet Pressure 145 PSI 10 bar
Plunger Diameter 0.87″ 22 mm
Stroke 0.71″ 18.1 mm
Max Temp 140 °F 60 °C
Crankshaft Diameter 0.94″ 24 mm
Crankcase Capacity 12.5 fl. oz. 0.37 L
Weight 19.4 lbs. 8.8 kg
Inlet Ports (2) 1/2″ BSP, (1) 3/4″ BSP
Discharge Ports (2) 1/2″ BSP
Shaft Rotation Top of Pulley Towards Manifold
Shaft Mounting Either Side
Volumetric Efficiency @ 1420 RPM 0.95 0.95
Mechanical Efficiency @ 1420 RPM 0.8 0.8
Key Component Material
Manifold Forged Brass
Plungers Solid Ceramic Oxide
Valves High Grade Stainless Steel
Seals Nitrile With Fabric Reinforcing
Gear End Aluminum

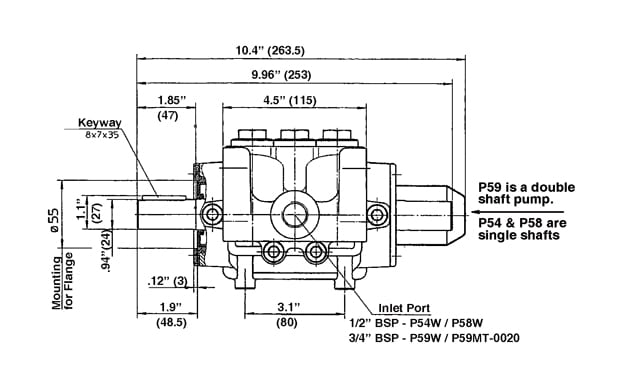

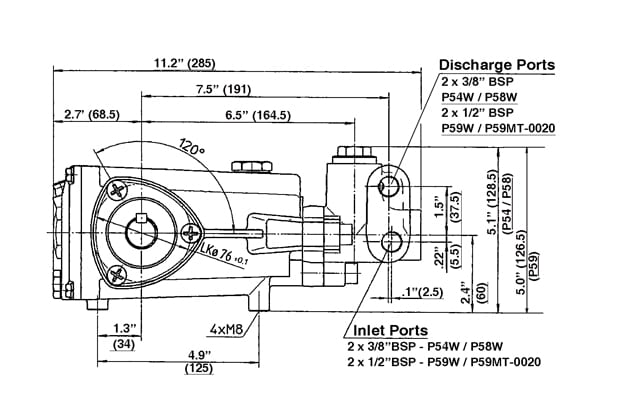

Click the image to enlarge


HORSEPOWER SPECIFICATIONS

RPM GPM 500 PSI 1000 PSI 1500 PSI 1900 PSI
910 4.7 1.6 3.2 4.8 6.1
1025 5.3 1.8 3.6 5.4 6.9
1190 6.1 2.1 4.2 6.3 7.9
1305 7.0 2.4 4.8 7.2 9.1
1450 7.5 2.6 5.1 7.7 9.8
1750* 9.0 3.1 6.2

*Intermittent duty only!

Horsepower Requirements

The ratings shown are the power requirements for the pump. Gas engine power outputs must be approximately twice the pump power requirements shown above.

We recommend a 1.15 service factor be specified when selecting an electric motor as the power source. To compute specific pump horsepower requirements use the following formulas:
Electric HP = (GPM X PSI)/1450
Gas HP = (GPM X PSI)/1100


*Engine power varies based on horizontal or vertical orientation, as well as by makes and models from each manufacturer.


REPAIR KITS

ITEM# PART# DESCRIPTION Qty.
Plunger Packing Kit – Part #09317
31 06250 Automatic Seal Ring 3
32 06253 Support Ring 3
40 07234 O-Ring 6
49 01009 O-Ring 1
50 13390 Grooved Seal 3
Valve Assembly Kit – Part #09318
34 07326-0100 Tension Cap 3
35 07312-0100 Valve Spring 3
36 07327 Valve Plate 3
37 06014 Valve Seat 3
38 06015 O-Ring 3
Oil Seal Kit – Part #09202
26 07206 Radial Shaft Seal 3

Repair Kits Available

The repair kits listed to the right are available for this pump. If you need further information about these repair kits, or have questions about other specific parts for your pump, please contact you local Giant distributor or contact Giant customer service.

PUMP CATEGORIES:
Service & Repair

Giant provides service on each pump and accessory that we sell. Many basic repair procedures are covered in the Giant repair manual. For all other questions on service or repair needs please contact your local Giant distributor.
