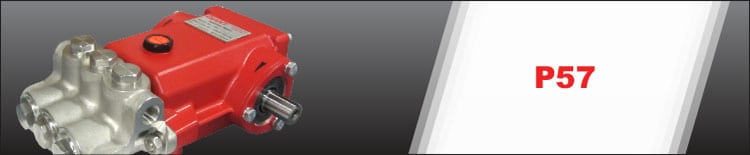

P57

A German-made reciprocating triplex plunger pump.

Features:
Aluminum crankcase with sight glass and vented dipstick; forged, through-hardened, ground and polished crankshaft; bronze connecting rods; hardened stainless steel plunger bases; solid ceramic plungers; nitrile seals (with fabric reinforcing); stainless steel valves and manifold.

Options:
Gearbox and bell housings (to connect to gasoline, diesel, electric or hydraulic drive).

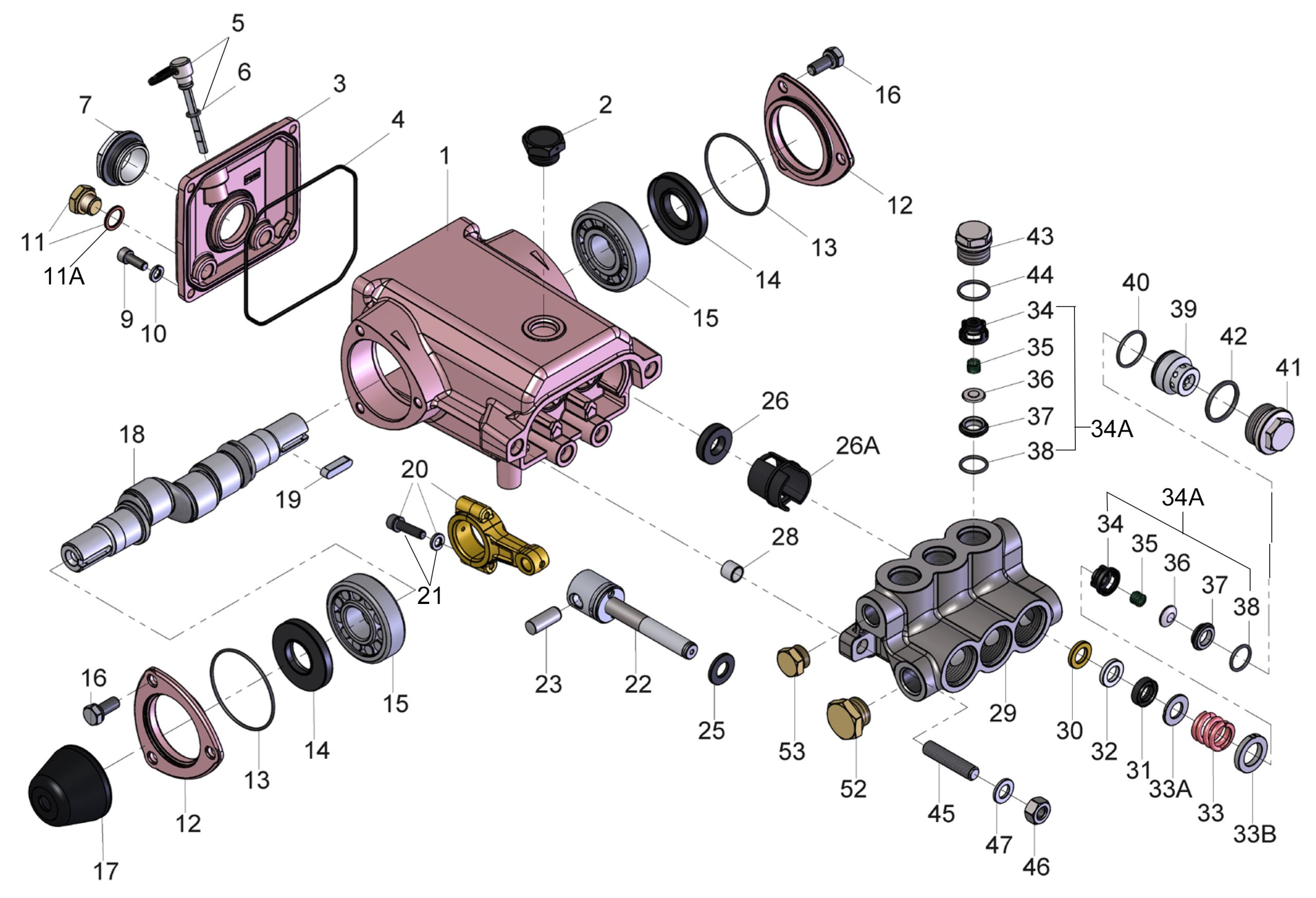

  • P57 Exploded View
  • P57 Parts List
  • Giant Industries Limited Warranty
  • P57 Installation Instructions
  • P57 Repair Instructions
  • Troubleshooting Guide

SPECIFICATIONS

U.S. Metric
Max Flow (Continuous) 1.3 GPM 5.1 L/min
Max Discharge Pressure (Continuous) 5000 PSI 350 bar
Max Discharge Pressure (Intermittent) 6525 PSI 450 bar
Max Speed 1420 RPM
Inlet Pressure 145 PSI 10 bar
Plunger Diameter 0.47″ 12 mm
Stroke 0.56″ 18.1 mm
Max Temp 160 ° F 70 ° C
Crankshaft Diameter 0.87″ 22 mm
Crankcase Capacity 15.2 fl. oz. 0.45 L
Weight 17.2 lbs. 7.8 kg
Inlet Ports (2) 1/2″ BSP
Discharge Ports (2) 3/8″ BSP
Shaft Rotation Top of Pulley Towards Manifold
Shaft Mounting Either Side
Key Component Material
Manifold High Grade Stainless Steel
Plungers Solid Ceramic Oxide
Valves High Grade Stainless Steel
Seals Nitrile With Fabric Reinforcing
Gear End Aluminum

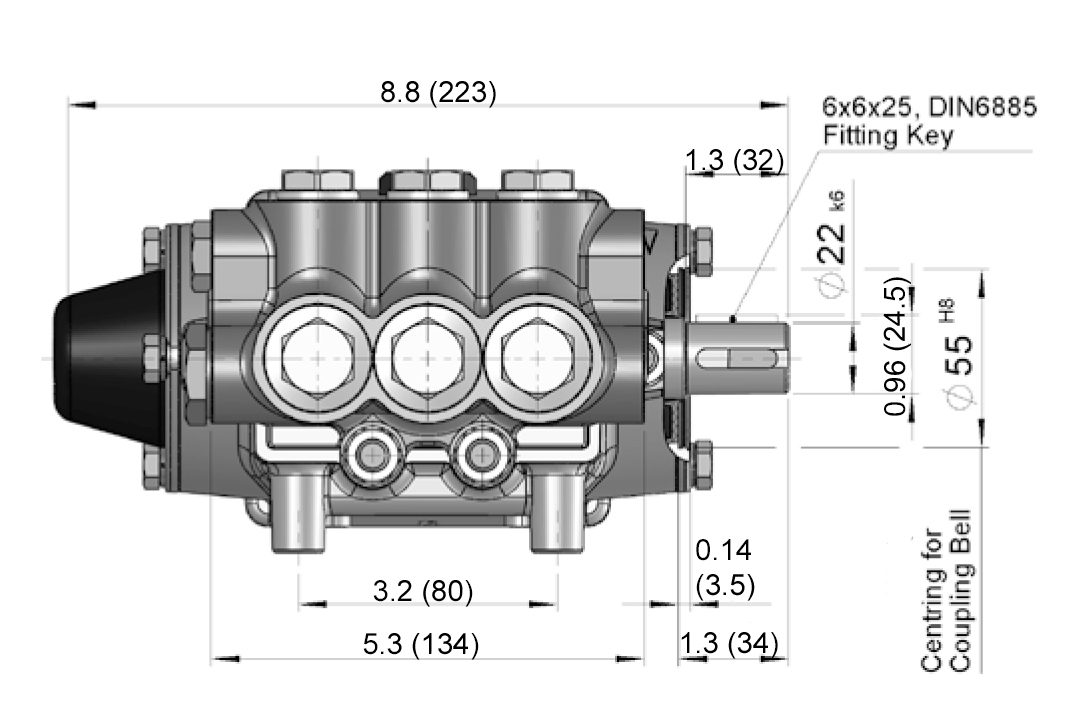

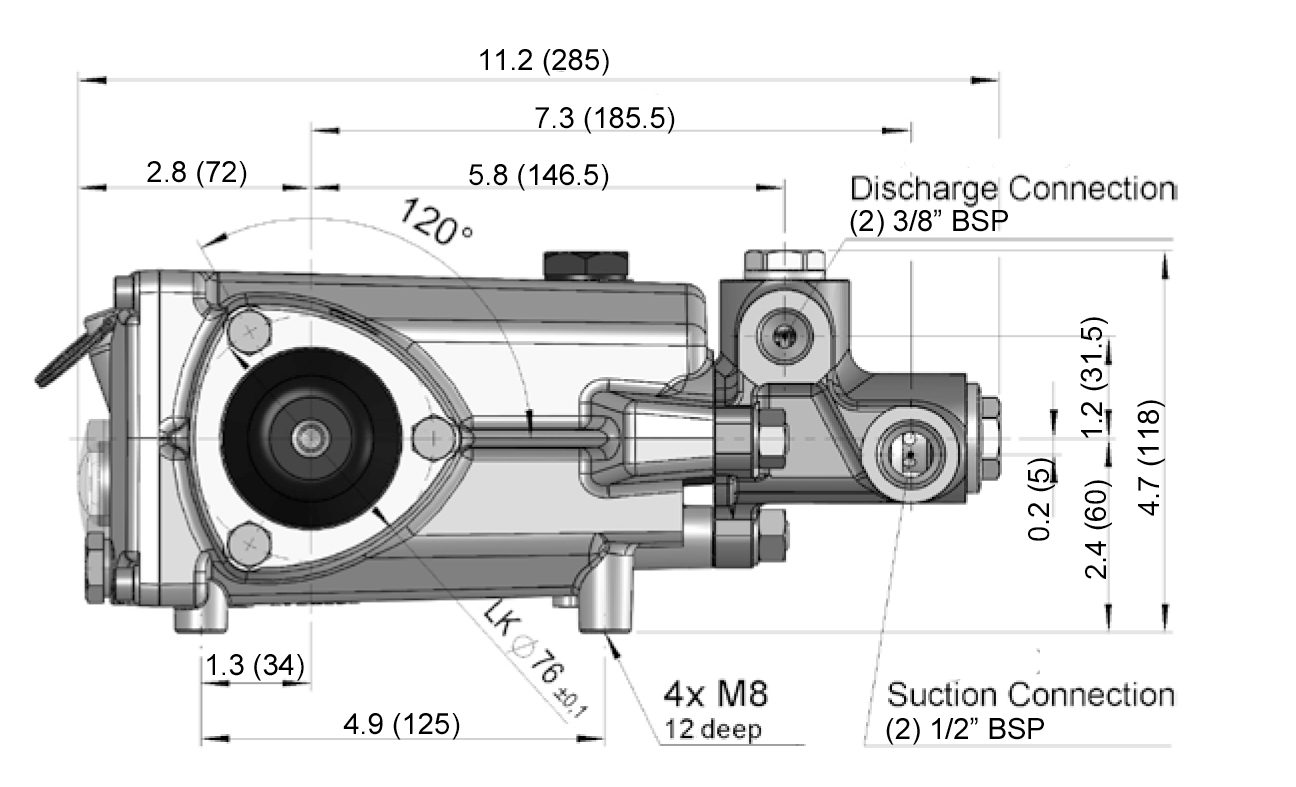

Click the image to enlarge


HORSEPOWER SPECIFICATIONS

RPM GPM 3000 PSI 4000 PSI 5000 PSI 6525 PSI*
500 0.5 1.0 1.4 1.7 2.3
750 0.7 1.4 1.9 2.4 3.2
1000 0.9 1.9 2.5 3.1 4.1
1250 1.1 2.3 3.0 3.8 5.0
1420 1.3 2.7 3.6 4.5 5.9

Horsepower Requirements

The ratings shown are the power requirements for the pump. Gas engine power outputs must be approximately twice the pump power requirements shown above.

We recommend a 1.15 service factor be specified when selecting an electric motor as the power source. To compute specific pump horsepower requirements use the following formulas:
Electric HP = (GPM X PSI)/1450
Gas HP = (GPM X PSI)/1100


*Engine power varies based on horizontal or vertical orientation, as well as by makes and models from each manufacturer.


REPAIR KITS

ITEM# PART# DESCRIPTION Qty.
Plunger Packing Kit – Part #09313
31 08354 Grooved Seal 3
32 07941 Support Ring 3
40 07212 O-Ring 3
42 07214 O-Ring 3
Valve Assembly Kit – Part #09315
34 07907 Spring Tension Disc 6
35 07906-0010 Valve Spring 6
36 07491 Valve Plate 6
37 07849 Valve Seat 6
38 07853 O-Ring 6
40 07202 O-Ring 3
42 07214 O-Ring 3
44 07913 O-Ring 3
Oil Seal Kit – Part #09314
25 13403 Flinger 3
26 08026 Radial Shaft Seal 3



Repair Kits Available

The repair kits listed to the right are available for this pump. If you need further information about these repair kits, or have questions about other specific parts for your pump, please contact you local Giant distributor or contact Giant customer service.
