Featured Image for P219MT-0020

A German-made triplex plunger positive displacement pump with reciprocating plungers for direct or belt drive applications.

Features:

Aluminum crankcase with sight glass and vented dipstick; forged, through-hardened, ground and polished crankshaft; bronze connecting rods; hardened stainless steel plunger bases; solid ceramic plungers; Teflon seals; stainless steel valves and forged brass manifold with external weep system.

WARNING: This product might contain a chemical known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Specification US Metric
Flow4.2 GPM15.9 L/min
Maximum Discharge Pressure2000 PSI140 bar
Crankshaft Speed1750 RPM
Power2.5 HP1.9 KW
Max Temperature160 °F70 °C
Inlet Port Size(2) 1/2" BSP
Discharge Port Size(2) 3/8" BSP
Plunger Diameter0.71 in.18 mm
Stroke0.49 in.12.4 mm
Crankshaft RotationTop of Pulley Towards Manifold
Crankshaft MountingEither Side
Weight11.7 lbs.5.3 kg
The repair kits listed to the right are available for this pump. If you need further information about these repair kits, or have questions about other specific parts for your pump, please contact you local Giant distributor or contact Giant customer service.
ITEM# PART# DESCRIPTION Qty.
Plunger Packing Kit – Part #09152
21 08443 O-Ring 3
23 07391 V-Sleeve, Weep 3
23A 08598 V-Sleeve 3
24 07392 Support Ring 3
Valve Assembly Kit – Part #09116
32x 07946A Valve Assembly Complete 6
31 07853 O-Ring 6
33 07913 O-Ring 6
Oil Seal Kit – Part #09144
19 08356-00010 Oil Seal 3
Optional Teflon Packing Kit – Part #09527-0021
21 08443-0001 O-Ring 3
23/23A 07391-0020 V-Sleeve, Teflon 6
24 07392 Support Ring 3
31 07853-0001 O-Ring, Viton 6
33 07913-0001 O-Ring, Viton 6

Horsepower Specifications

RPM GPM 1000PSI 1500PSI 2000PSI 2500PSI
500 0.13 0.1 0.1 0.2 0.2
1000 0.26 0.2 0.3 0.4 0.4
1750 0.46 0.3 0.5 0.6 0.8
3000 0.78 0.5 0.8 1.1 1.3
3200 0.83 0.5 0.9 1.1 1.4
3450 0.9 0.6 0.9 1.2 1.6

Images Open in new Window/Tab

  • Dimensional Drawing (Side) Open

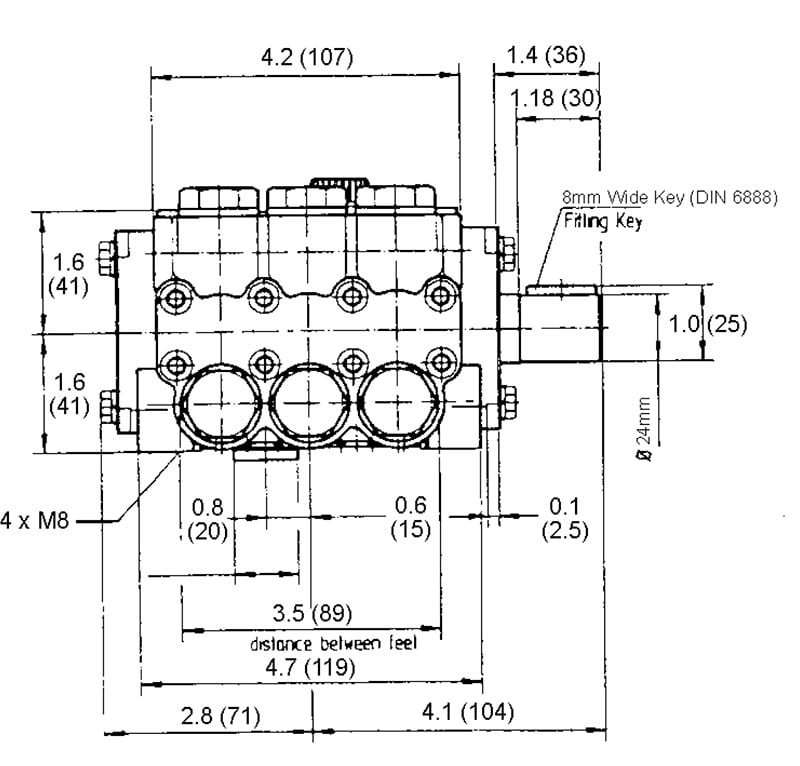

  • Dimensional Drawing (Front) Open

Literature

Documents open in new window/tab.

  • Giant Industries Limited Warranty
