LP250-5100

A German-made triplex plunger positive displacement pump with reciprocating plungers for belt drive applications.

Features:
Spheroidal cast iron crankcase with sight glass and vented dipstick; forged, through-hardened, ground and polished crankshaft; bronze connecting rods; hardened stainless steel plunger bases; solid ceramic plungers; nitrile seals (with fabric reinforcing); stainless steel valves and 316 stainless steel manifold.

WARNING: This product might contain a chemical known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

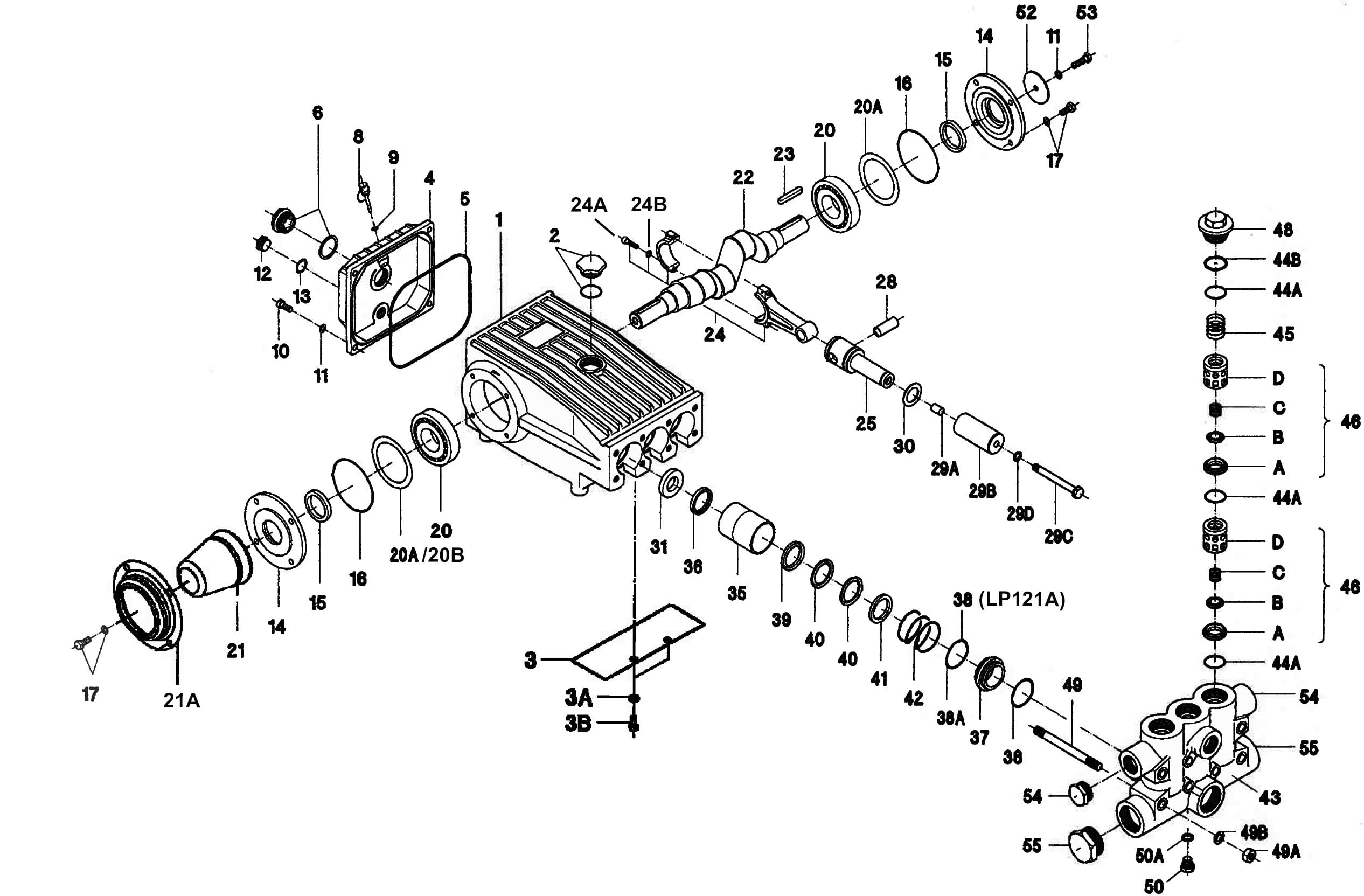

  • LP250-5100 Exploded View
  • LP250-5100 Parts List
  • LP250-5100 Torque Specifications
  • Giant Industries Limited Warranty
  • LP250-5100 Installation Instructions
  • LP250-5100 Repair Instructions
  • Troubleshooting Guide

SPECIFICATIONS

U.S. Metric
Flow 26.0 GPM 98.3 L/min
Maximum Discharge Pressure 2200 PSI 150 bar
Crankshaft Speed 1000 RPM
Maximum Inlet Pressure 87 PSI 6.0 bar
Maximum Temperature 140 °F 60 °C
Plunger Diameter 1.26″ 32 mm
Stroke 1.65″ 42 mm
Crankshaft Diameter 35 mm
Crankshaft Rotation Top of Pulley Towards Manifold
Crankshaft Mounting Either Side
Inlet Ports (3) 1-1/2″ BSP
Discharge Ports (3) 1″ BSP
Crankcase Oil Capacity 118 fl. oz. 3.5 L
Weight 119 lbs. 54 kg
Key Component Material
Manifold 316 Stainless Steel
Plungers Solid Ceramic
Valves Stainless Steel
Seals Nitrile with Fabric Reinforcing
Gear End Spheroidal Cast Iron

Click the image to enlarge


HORSEPOWER SPECIFICATIONS

RPM GPM 1000 PSI 1500 PSI 2000 PSI 2200 PSI
500 13.0 9.0 13.5 18.0 19.8
640 16.6 11.5 17.3 23.1 25.4
750 19.5 13.5 20.3 27.1 29.8
805 20.9 14.5 21.8 29.0 31.9
865 22.5 15.6 23.4 31.2 34.3
920 23.9 16.6 24.9 33.2 36.5
1000 26.0 18.0 27.1 36.1 39.7

Horsepower Requirements

The ratings shown are the power requirements for the pump. Gas engine power outputs must be approximately twice the pump power requirements shown above.

We recommend a 1.15 service factor be specified when selecting an electric motor as the power source. To compute specific pump horsepower requirements use the following formulas:

Electric HP = (GPM X PSI)/1450

Gas HP = (GPM X PSI)/1100

*Engine power varies based on horizontal or vertical orientation, as well as by makes and models from each manufacturer.


REPAIR KITS

ITEM# PART# DESCRIPTION Qty.
Plunger Packing Kit – Part #09308
36 13360 Grooved Ring 3
38 07140 O-Ring 3
38A 12055 O-Ring 3
40 13027 V-Sleeve 6
Valve Assembly Kit – Part #09196-0100
44A 07150 O-Ring 9
44B 06266 Support Ring 3
46A 07064-0100 Valve Seat 6
46B 07063-0100 Valve Plate 6
46C 07062-0100 Valve Spring 6
Oil Seal Kit – Part #09577
31 07133 Oil Seal Kit 3

Repair Kits Available

The repair kits listed to the right are available for this pump. If you need further information about these repair kits, or have questions about other specific parts for your pump, please contact you local Giant distributor or contact Giant customer service.

PUMP CATEGORIES:
Service & Repair

Giant provides service on each pump and accessory that we sell. Many basic repair procedures are covered in the Giant repair manual. For all other questions on service or repair needs please contact your local Giant distributor.
