A German-made reciprocating triplex plunger pump.
Attached gearbox; spheroidal cast iron crankcase with vented dipstick; forged, through-hardened, ground and polished crankshaft; bronze connecting rods; hardened stainless steel plunger bases; solid ceramic plungers; nitrile seals with fabric reinforcing; stainless steel valves and nickel-plated Spheroidal cast iron manifold. Comes equipped with an integrated oil cooling system.
WARNING: This product might contain a chemical known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
|Max Flow||84.5 GPM||320 L/min|
|Max Discharge Pressure||2030 PSI||140 bar|
|Inlet Pressure||90 PSI||6 bar|
|Plunger Diameter||2.17″||55 mm|
|Max Temp w/cooling system||86 °F||30 °C|
|Pinion Shaft Diameter||1.38″||35 mm|
|Crankcase Capacity||2.1 gal||8.0 L|
|Weight||469 lbs.||213 kg|
|Inlet Ports||(2) 2-1/4″ NPT|
|Discharge Ports||(2) 1-1/4″ NPT|
|Shaft Rotation||Pinion Shaft Towards Back of Pump|
|Shaft Mounting||Either Side|
|Manifold||Nickel-Plated Spheroidal Cast Iron|
|Plungers||Solid Ceramic Oxide|
|Valves||Duplex Stainless Steel|
|Seal||Nitrile with Fabric Reinforcing|
|Gear End||Spheroidal Cast Iron|
The ratings shown are the power requirements for the pump. Gas engine power outputs must be approximately twice the pump power requirements shown above.
We recommend a 1.15 service factor be specified when selecting an electric motor as the power source. To compute specific pump horsepower requirements use the following formulas:
Electric HP = (GPM X PSI)/1450
Gas HP = (GPM X PSI)/1100
*Engine power varies based on horizontal or vertical orientation, as well as by makes and models from each manufacturer.

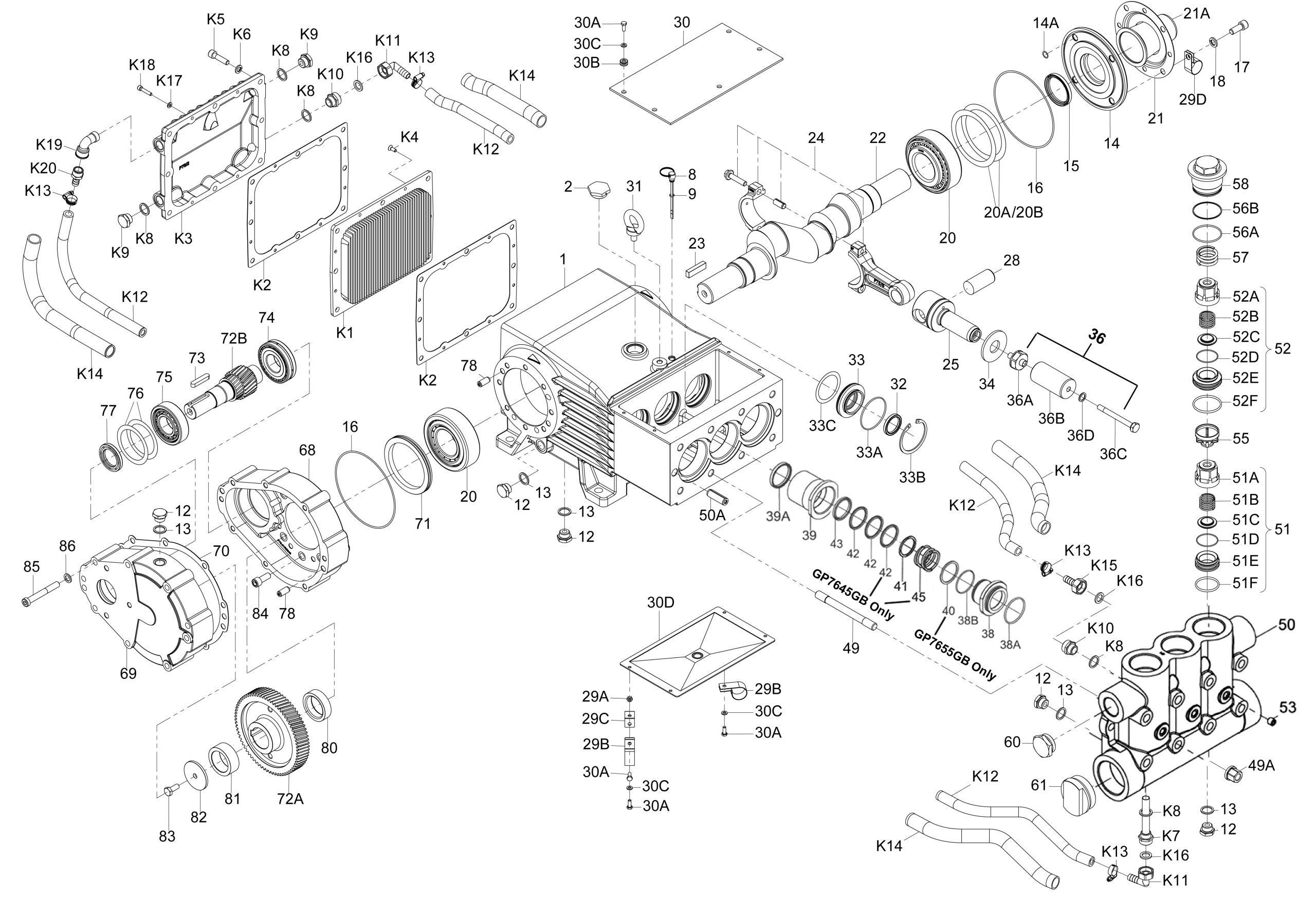

|Plunger Packing Kit – Part #09603|
|Inlet Valve Assembly Kit – Part #09659|
|51||05594||Inlet Valve Assembly||1|
|Large Discharge Valve Kit – Part # 09660|
|52||05600||Discharge Valve Assembly||1|
|Small Discharge Valve Kit – Part # 09661|
|Oil Seal Kit – Part #09221|
|32||07624||Radial Shaft Seal||3|
Repair Kits Available
The repair kits listed to the right are available for this pump. If you need further information about these repair kits, or have questions about other specific parts for your pump, please contact you local Giant distributor or contact Giant customer service.
