Featured Image for BP8076

A German-made reciprocating triplex plunger pump for bentonite applications.

Features:
Spheroidal cast iron crankcase with vented dipstick; forged, through-hardened, ground and polished crankshaft; bronze connecting rods; hardened stainless steel plunger bases; solid ceramic plungers; special seals with fabric reinforcing; stainless steel valves and nickel-plated spheroidal cast iron manifold. Comes equipped with an integrated oil cooling system.

WARNING: This product might contain a chemical known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Specification US Metric
Flow132 GPM500 L/min
Maximum Discharge Pressure1500 PSI100 bar
Crankshaft Speed520 RPM
Power129.0 HP96 KW
Max Temperature104 °F40 °C
Inlet Port Size(2) 3" BSP
Discharge Port Size(2) 1-1/2" BSP
Plunger Diameter2.99 in.76 mm
Stroke2.83 in.72 mm
Maximum Inlet Pressure145 PSI10 bar
Crankshaft Diameter70 mm
Crankshaft RotationTop of Pulley Towards Manifold
Crankshaft MountingEither Side
Crankcase Oil Capacity US4.6 gal 17.5 L
Weight738 lbs.335 kg
Manifold Material Spheroidal Cast Iron
Crankcase Material Spheroidal Cast Iron
Plunger Material Solid Ceramic Oxide
Valve Material Stainless Steel
Seal Material Nitrile with Fabric Reinforcing
The repair kits listed to the right are available for this pump. If you need further information about these repair kits, or have questions about other specific parts for your pump, please contact you local Giant distributor or contact Giant customer service.
ITEM# PART# DESCRIPTION Qty.
Plunger Packing Kit – Part #09863
38A 03564 O-Ring 6
39A 05066 O-Ring 3
40 03566 Support Ring 3
41 03599 Guide Ring 3
42 03568 Spiral Ring 6
Valve Assembly Kit – Part #09864
51 03613 Valve Assembly 6
56A 04955 O-Ring 3
56B 13156 O-Ring 3
Oil Seal Kit – Part #09584A
32 05058 Radial Shaft Seal 3
32A 03118 Scraper 3
33A 05056 O-Ring 3

Horsepower Specifications

RPM GPM 500 PSI 750 PSI 1000 PSI 1500 PSI
260 66.0 22.8 34.1 45.5 68.3
300 76.2 26.3 39.4 52.6 78.8
400 101.5 35.0 52.5 70.0 105.0
500 132.0 45.5 68.3 91.0 136.6

Images Open in new Window/Tab

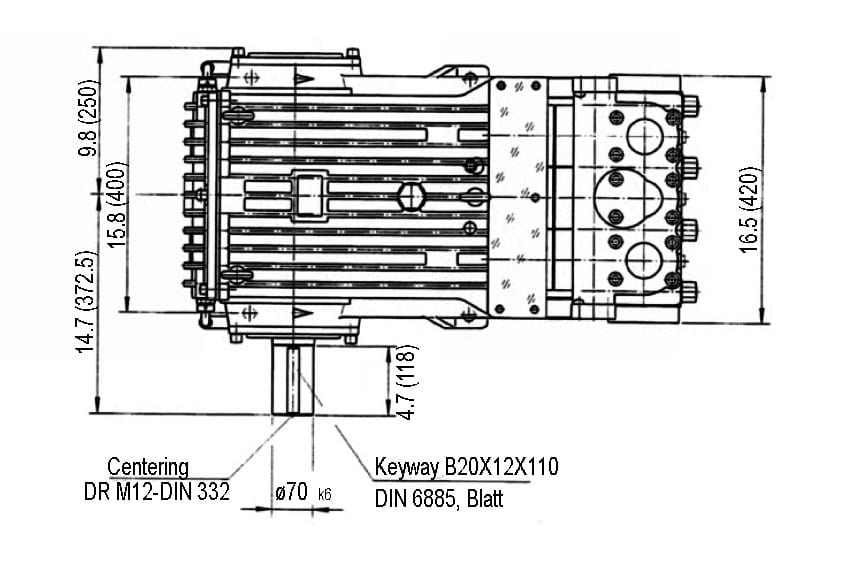

  • Dimensional Drawing (Side) Open
  • Dimensional Drawing (Front) Open
  • BP8076 Exploded View
  • BP8076 Parts List
  • BP8076 Torque Specifications

Literature

Documents open in new window/tab.

  • Pump Assembly Instructions
  • Giant Industries Limited Warranty
  • BP8076 Installation Instructions
  • BP8076 Repair Instructions
  • Troubleshooting Guide
