P500 Series Pumps

Select Category

GPM LPM

PSI Bar

Designed and manufactured in Germany, these medium duty pumps are meant for continuous duty applications. With a power range up to 37 Hp (27 kW), these pumps are used in a variety of applications including car wash, pressure washing, sewer cleaning, humidification, hydro excavating, oil field, and other industrial applications. The flow ranges is up to 26.4 GPM (100 l/min) and the pressure range is up to 1740 PSI (120 Bar). Temperature range is up to 104 °F (40 °C).

Order by:

Order:

Model No.	Maximum Flow	Maximum Pressure	Speed	Power Consumption
P533	22.7 GPM 86 L/min	2175 PSI 150 bar	1450 RPM	34.1 HP 25.4 KW
P532	24.4 GPM 92.5 L/min	2175 PSI 150 bar	1450 RPM	36.6 HP 27.3 KW

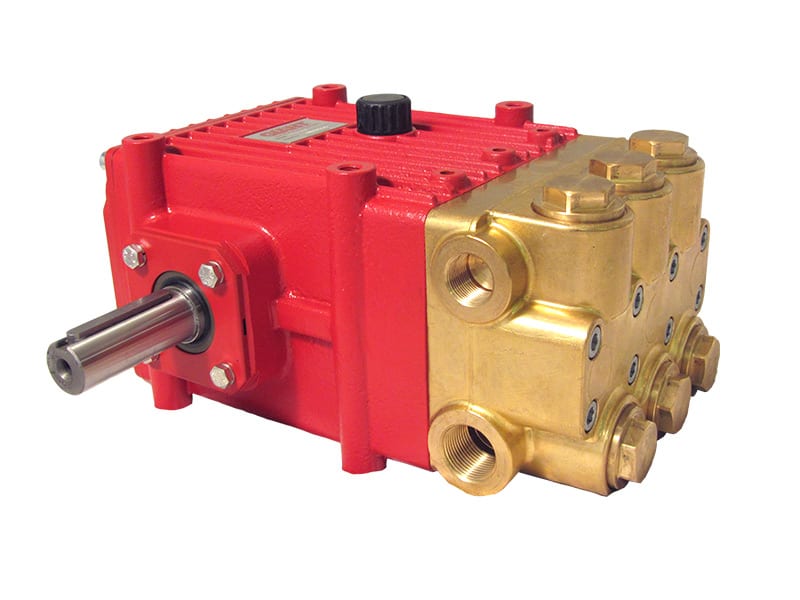

P536	26.4 GPM 100 L/min	1740 PSI 120 bar	1450 RPM	31.6 HP 23.6 KW
P540	35.4 GPM 134 L/min	1450 PSI 100 bar	1450 RPM	35.3 HP 26.3 KW
P541	35.4 GPM 134 L/min	1450 PSI 100 bar	1450 RPM	35.3 HP 26.3 KW

Our Company

For 50 years, Giant Pumps has offered the most dependable positive displacement high-pressure triplex pumps available. Designed and built to the highest quality standards, customers count on Giant Pumps products to keep their equipment running. Every design detail of Giant Pumps products is optimized for long-life and reliable performance, making Giant Pumps the most trusted name in high-pressure pumps and systems.
