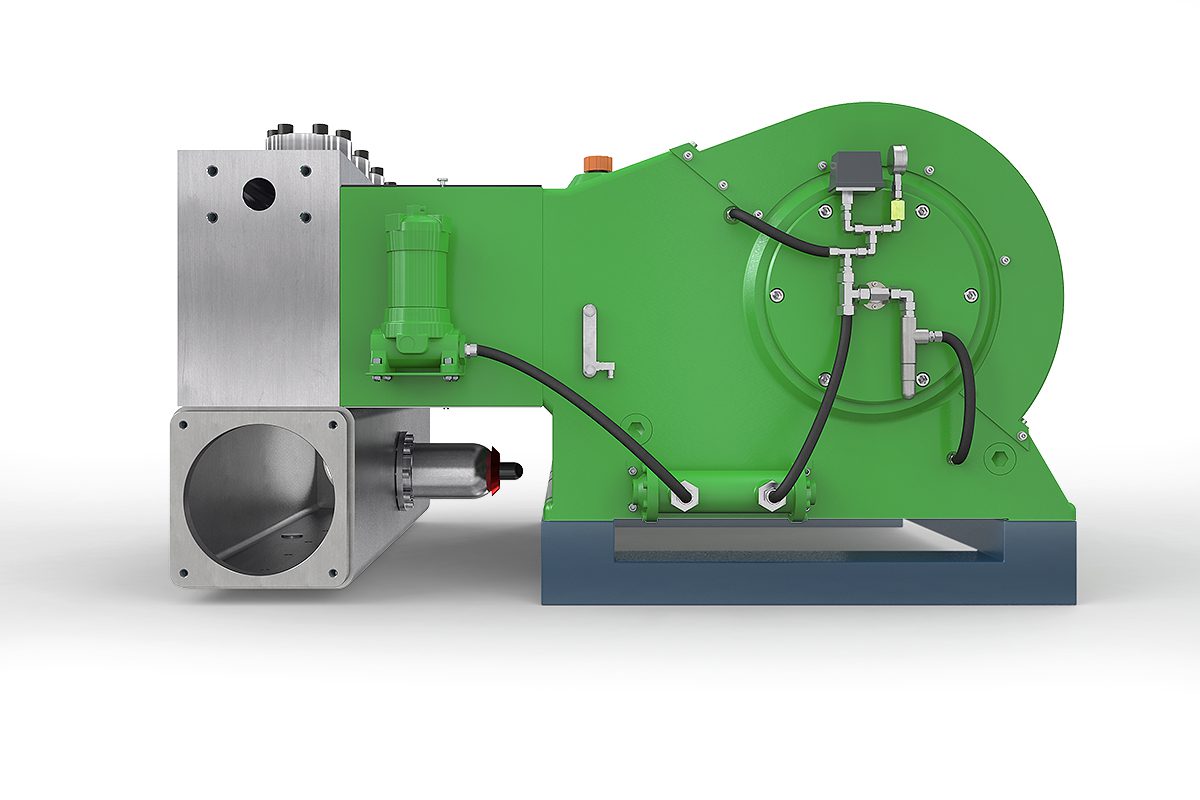

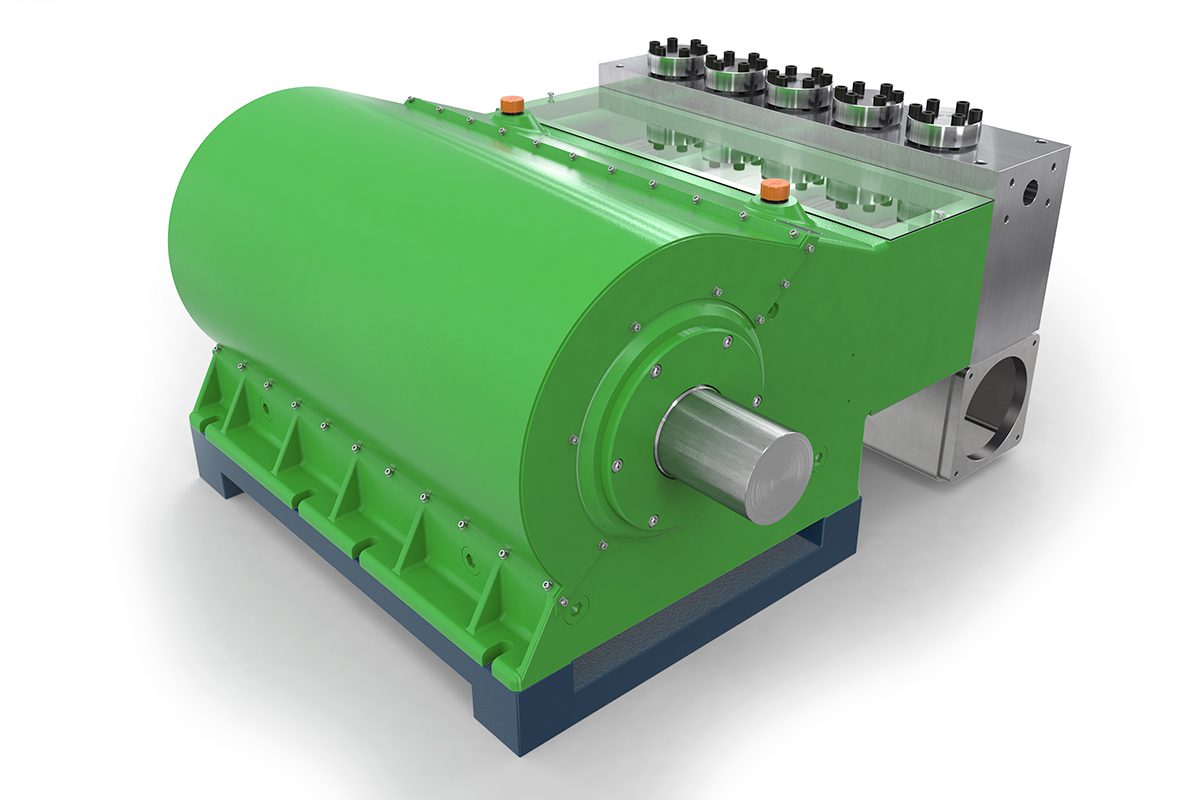

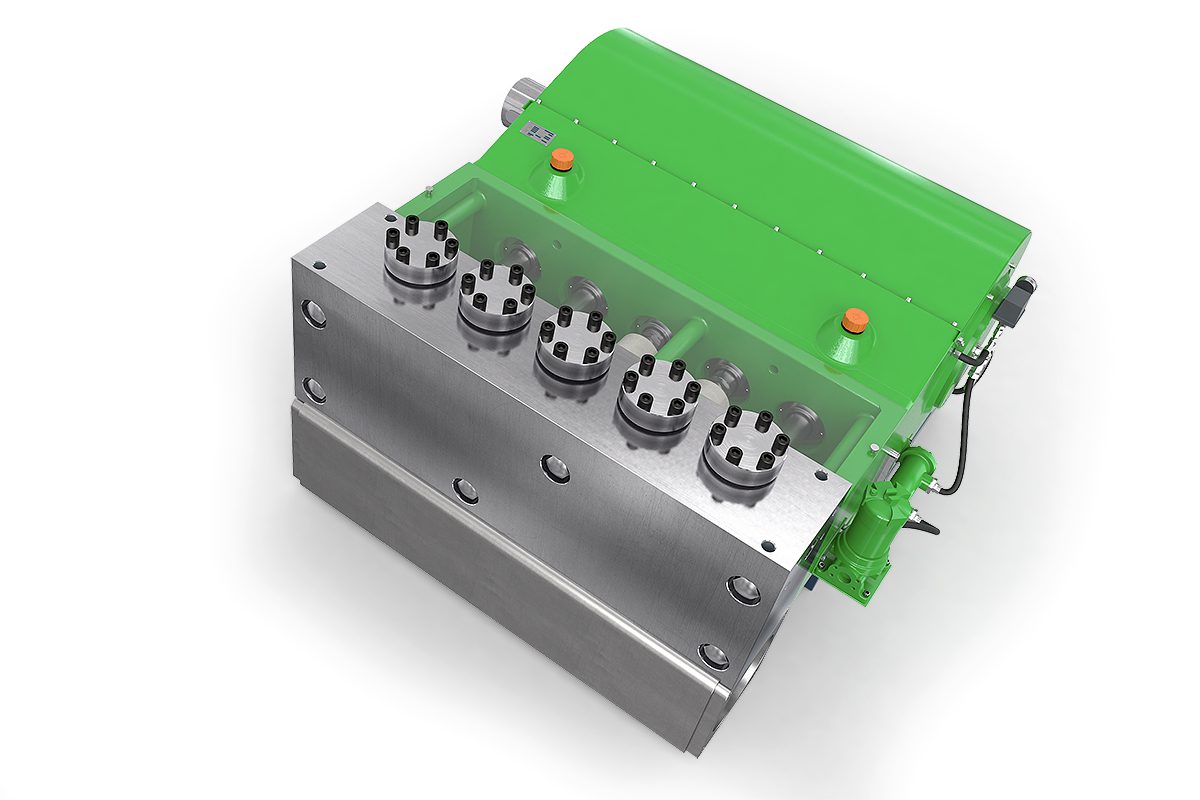

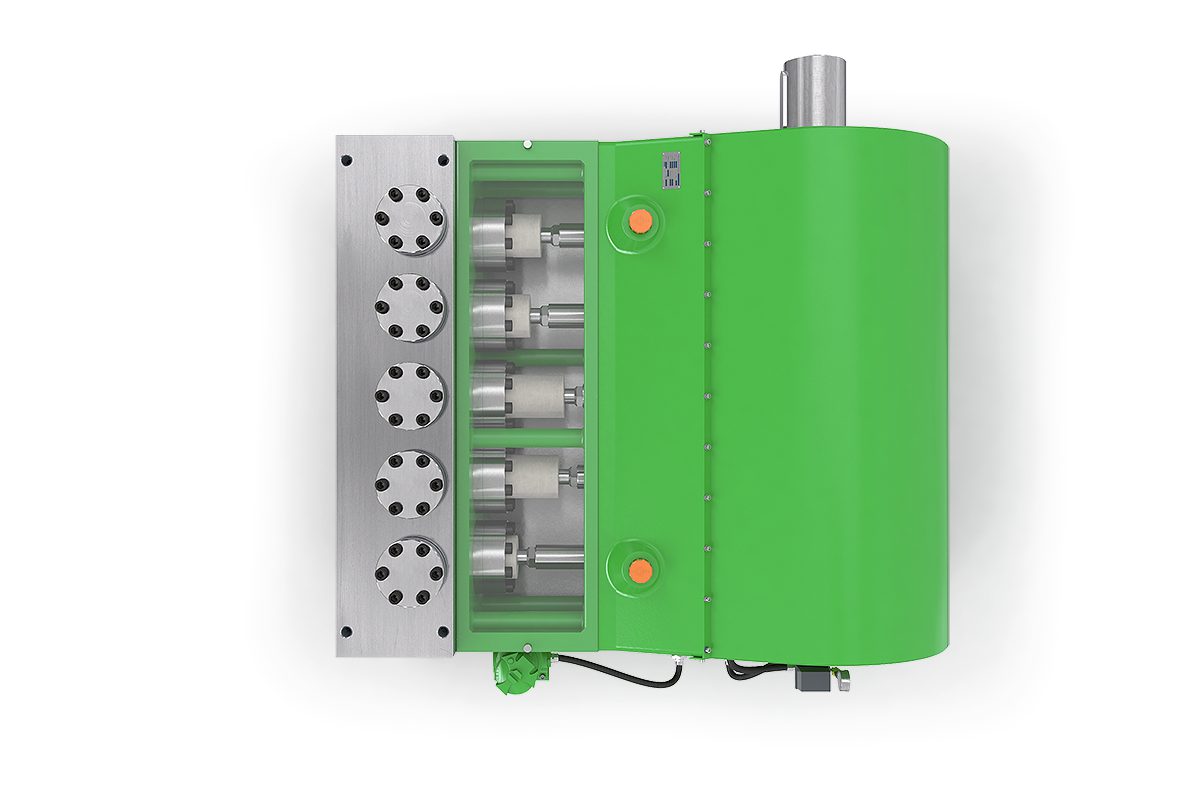

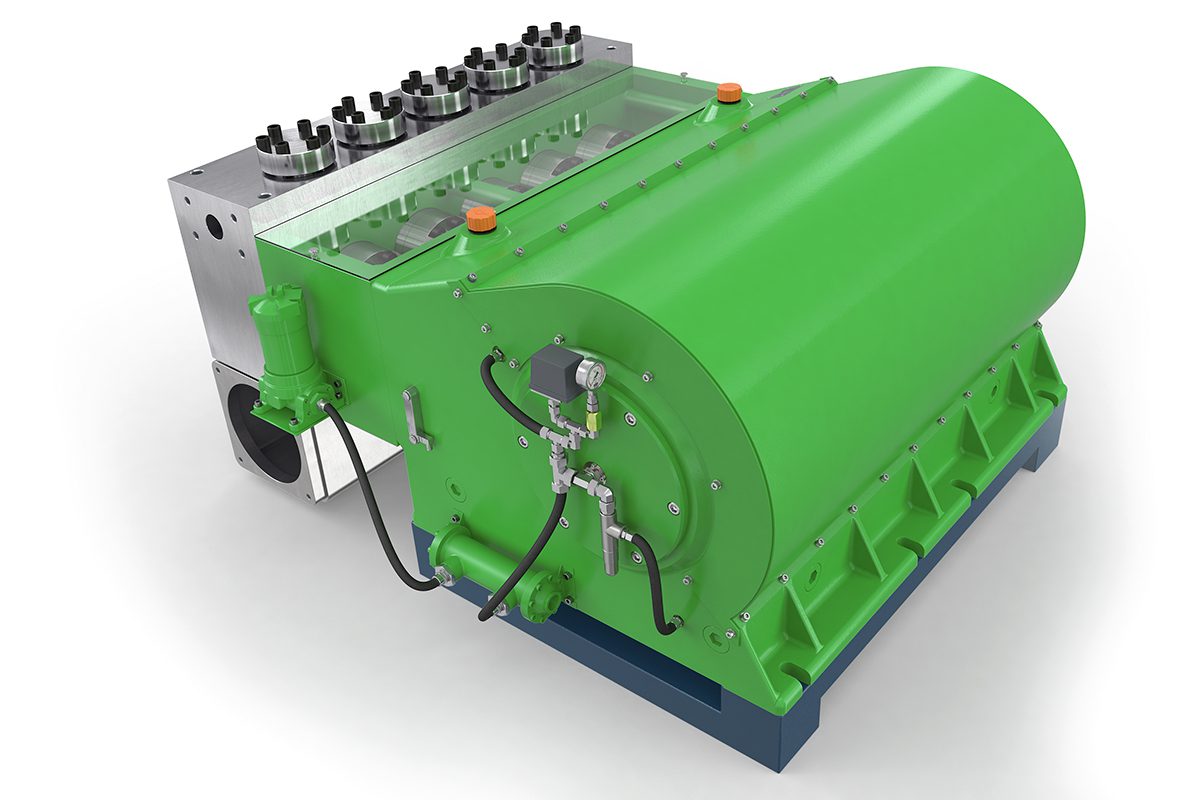

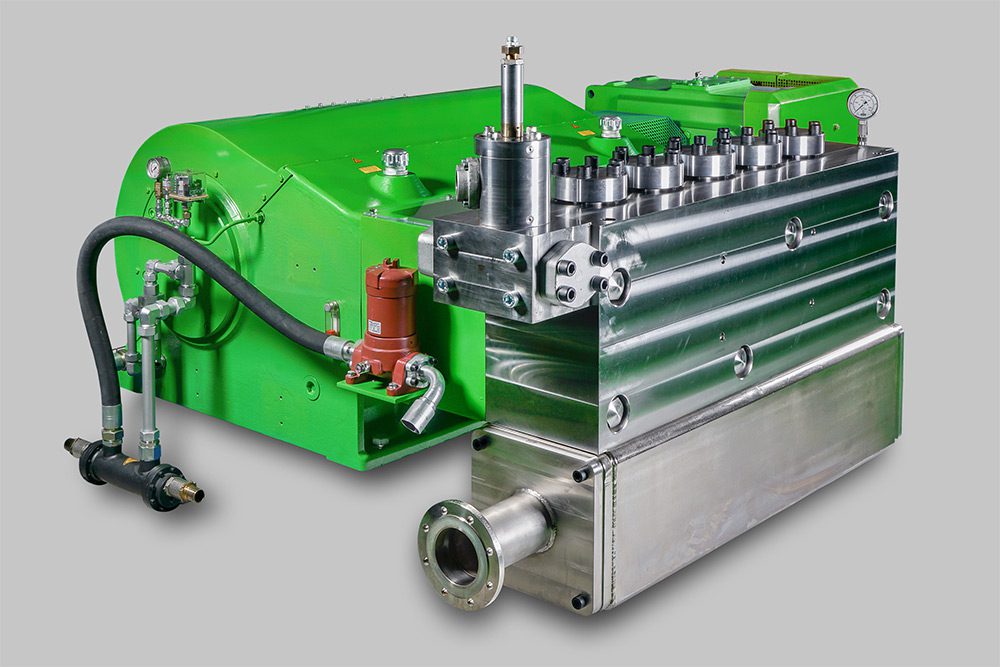

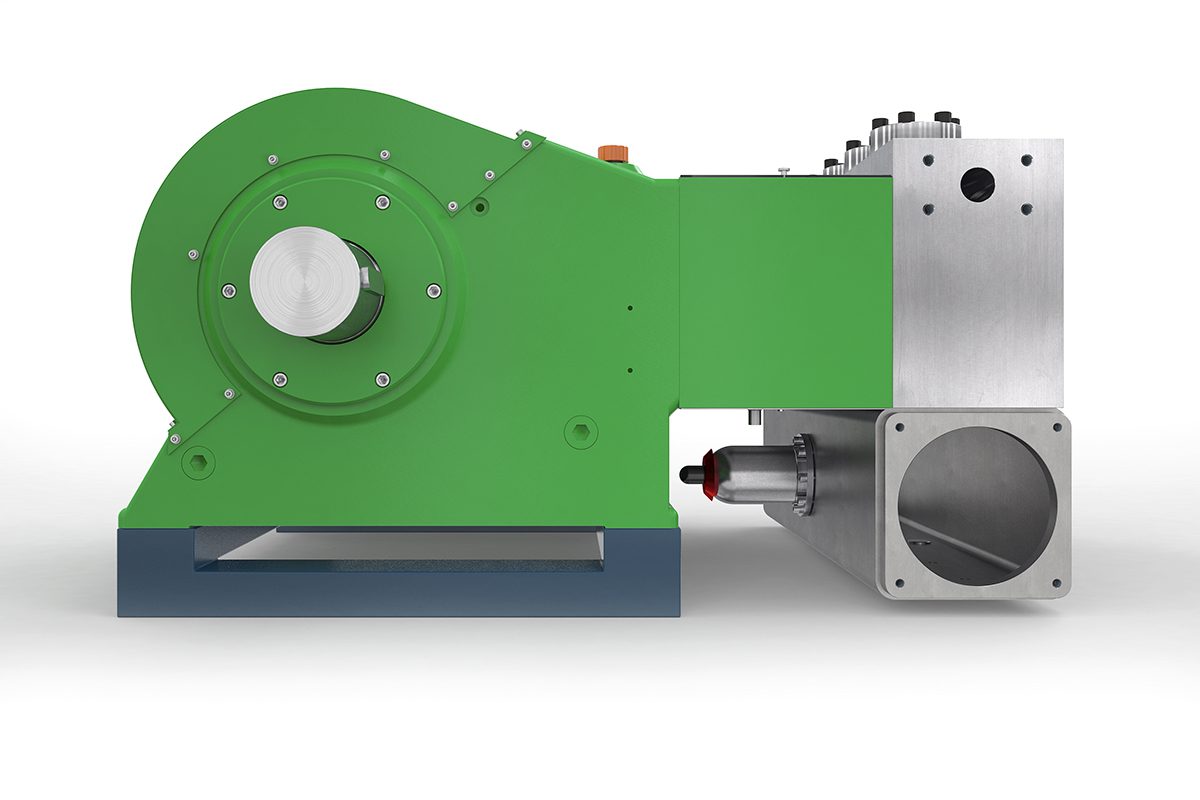

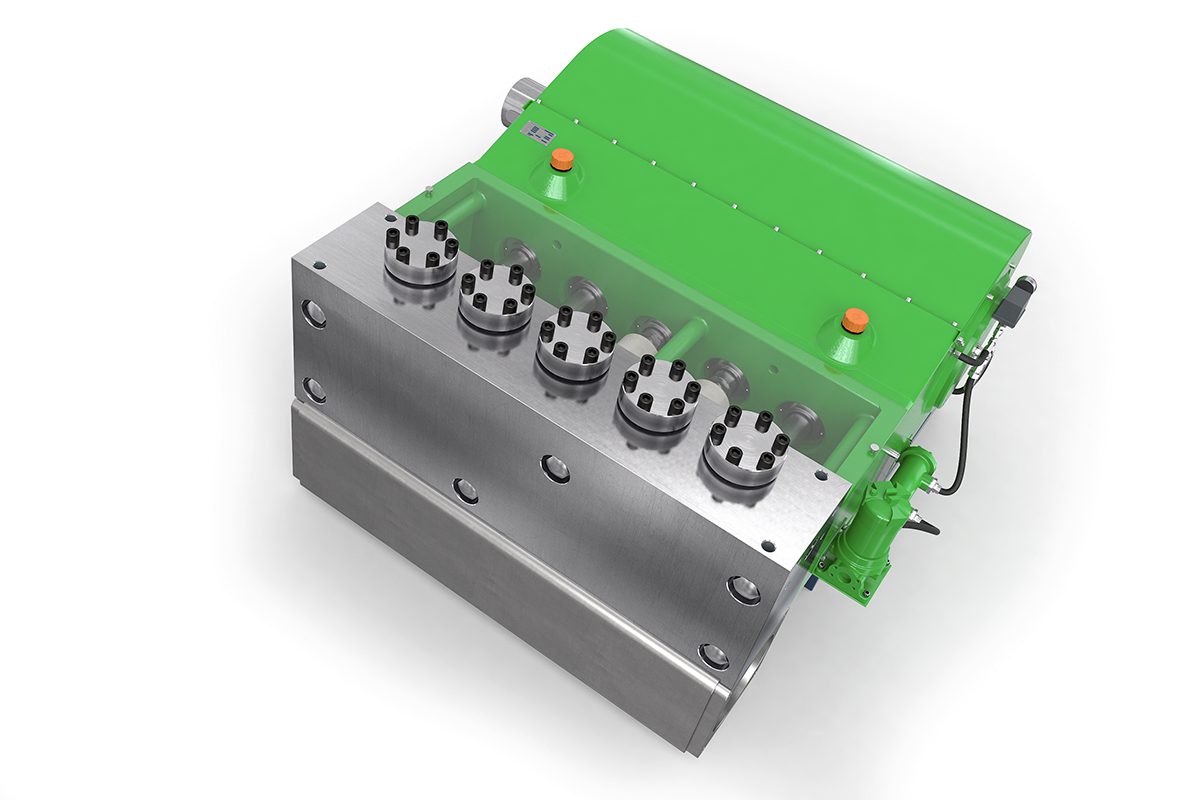

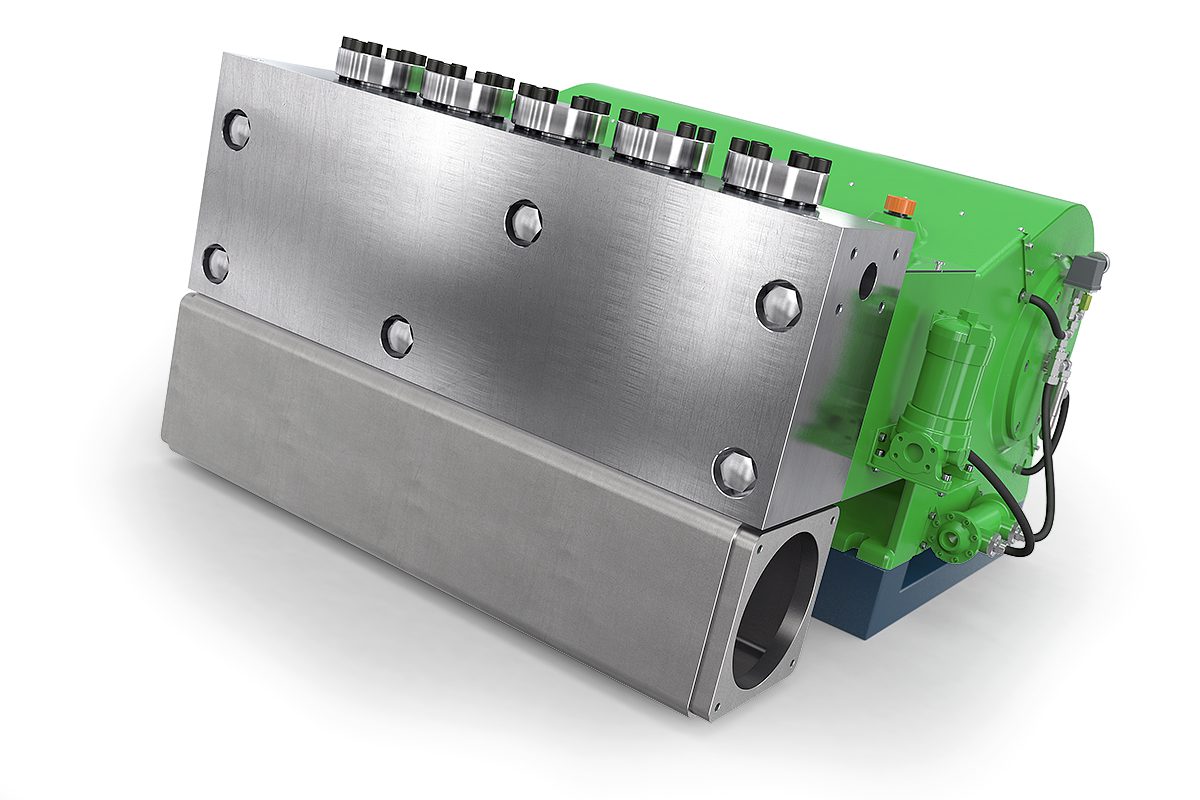

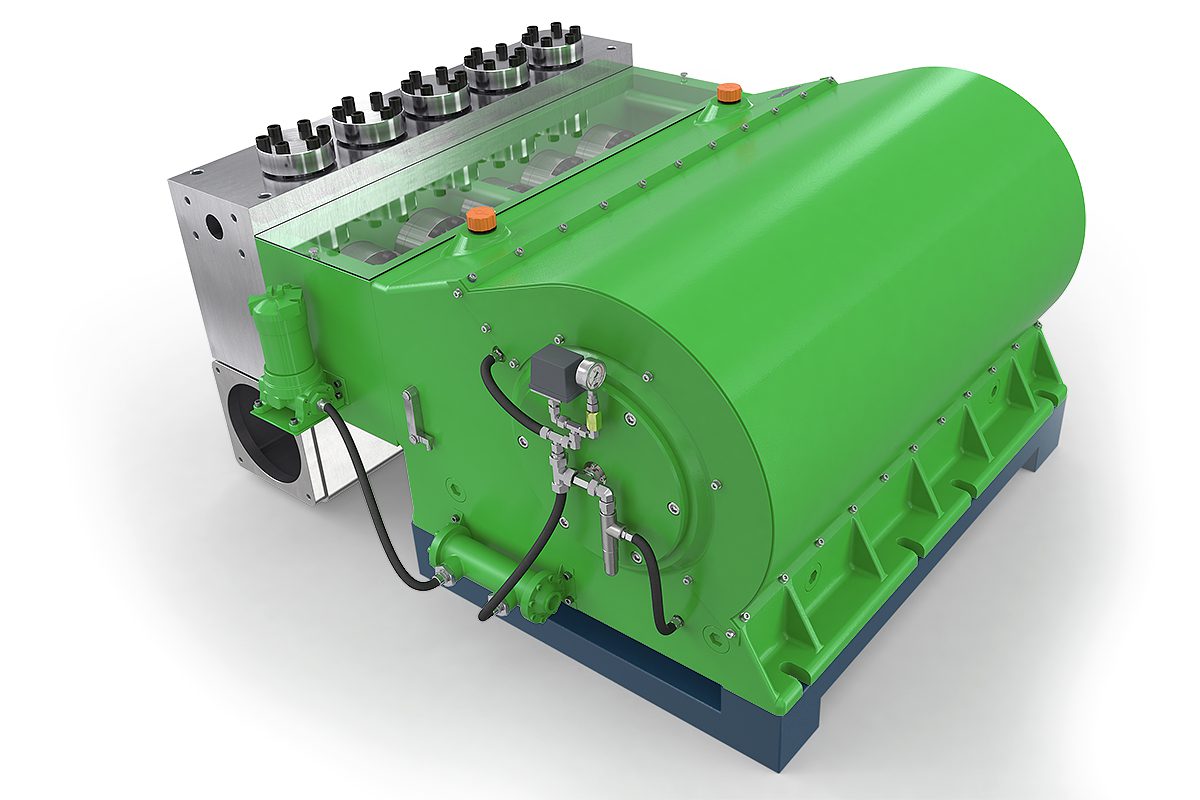

High-Pressure Quintuplex Plunger Pump K300000-5G

KAMAT Quintuplex Plunger Pump K300000-5G – High-Pressure Technology for Extreme Flow Demands

With an impressive 3,000 kW drive power and an advanced five-cylinder quintuplex design, the K300000-5G redefines performance for industries that rely on ultra-high flow rates. Engineered to operate without inlet pressure and without cavitation, this pump delivers powerful and continuous flow under the most demanding conditions.

Engineered for Demanding Applications Across Heavy Industry

Whether in hydraulic descaling, water hydraulics, or large-scale oil and gas systems, the K300000-5G ensures reliable and efficient high-pressure operation. Its unique five-cylinder design guarantees stable pressure delivery with minimal pulsation, making it ideal for sensitive applications like fracking and continuous descaling processes in steel production.

24/7 Performance Backed by Advanced Engineering

The pump features a high-performance gearbox with external forced-feed lubrication and integrated oil cooling, ensuring stable operation even under extreme thermal and mechanical loads. Built for continuous industrial duty, its modular system allows easy configuration for various media, pressure ranges, and process conditions.

Key Advantages at a Glance:

  • Extreme output capacity: 3,000 kW of input power for ultra-high flow rates
  • Quintuplex technology: Minimizes pulsation and prevents cavitation
  • No inlet pressure required: Flexible integration into existing systems
  • Continuous-duty ready: External lubrication system with oil cooler
  • Modular design: Compatible with KAMAT system components and pump heads
  • Built for industrial scale: Durable, low-maintenance, high-efficiency solution

Technical Data

K300000-5G Q max. p max. psi @ hp Head type
US-GPM 2040 2720 3400 4078 A M M2
300060 227.2 14431 1
300065 266.5 12328 1
300070 309.1 10588 14141 1
300075 354.8 9210 12328 14504 1
300080 403.7 8122 10805 13561 14504 1
300085 455.7 7179 9572 11966 14359 1
300090 510.9 6382 8557 10660 12836 1
300095 569.3 5729 7687 9572 11531 1
300100 630.8 5221 6889 8630 10370 1
300110 763.2 4279 5729 7179 8557 2
300120 908.2 3626 4786 6019 7179 2
300130 1,065.9 3046 4134 5149 6164 2
300140 1,236.3 2683 3553 4424 5294 3
300150 1,419.1 2321 3046 3844 4641 3
300160 1,614.6 2031 2683 3408 4061 3
300170 1,822.8 1813 2393 2973 3626 4
300180 2,043.6 1595 2103 2683 3191 4
300190 2,276.9 1450 1885 2393 2901 4
300200 2,522.8 1305 1740 2176 2611 4
300210 2,781.5 1160 1595 1958 2321 4
K300000-5G Q max. p max.bar @ kW Head type
l/min 1500 2000 2500 3000 A M M2
300060 860 995 1
300065 1009 850 1
300070 1170 730 975 1
300075 1343 635 850 1000 1
300080 1528 560 745 935 1000 1
300085 1725 495 660 825 990 1
300090 1934 440 590 735 885 1
300095 2155 395 530 660 795 1
300100 2388 360 475 595 715 1
300110 2889 295 395 495 590 2
300120 3438 250 330 415 495 2
300130 4035 210 285 355 425 2
300140 4680 185 245 305 365 3
300150 5372 160 210 265 320 3
300160 6112 140 185 235 280 3
300170 6900 125 165 205 250 4
300180 7736 110 145 185 220 4
300190 8619 100 130 165 200 4
300200 9550 90 120 150 180 4
300210 10529 80 110 135 160 4

Technical Specifications

Pressure (US) max. 14504 psi
Flow (US) max. 2781.5 us-gpm
Power Input (US) max. 4078.9 hp
Weight (US) 16534.7 lbs
Pressure (ISO) max. 1000 bar
Flow (ISO) max. 10529 l/min
Power Input (ISO) max. 3000 kW
Weight (ISO) 7500 kg

Special Features

  • flow rate is based on 100 % volumetric efficiency and 20 °C ambient temperature
  • min. inlet pressure depending on fluid medium
  • speed range 0-100 % depending on rod force
  • crankshaft dynamically balanced
  • gear with external force-fed lubrication and oil cooling
  • external gear ratio on request e.g. i = 4,76; 5,72 ; 6,3
  • also available to API 674
  • horizontal operation
  • special medium such as sea water, glycol, methanol, oils, etc. on request
