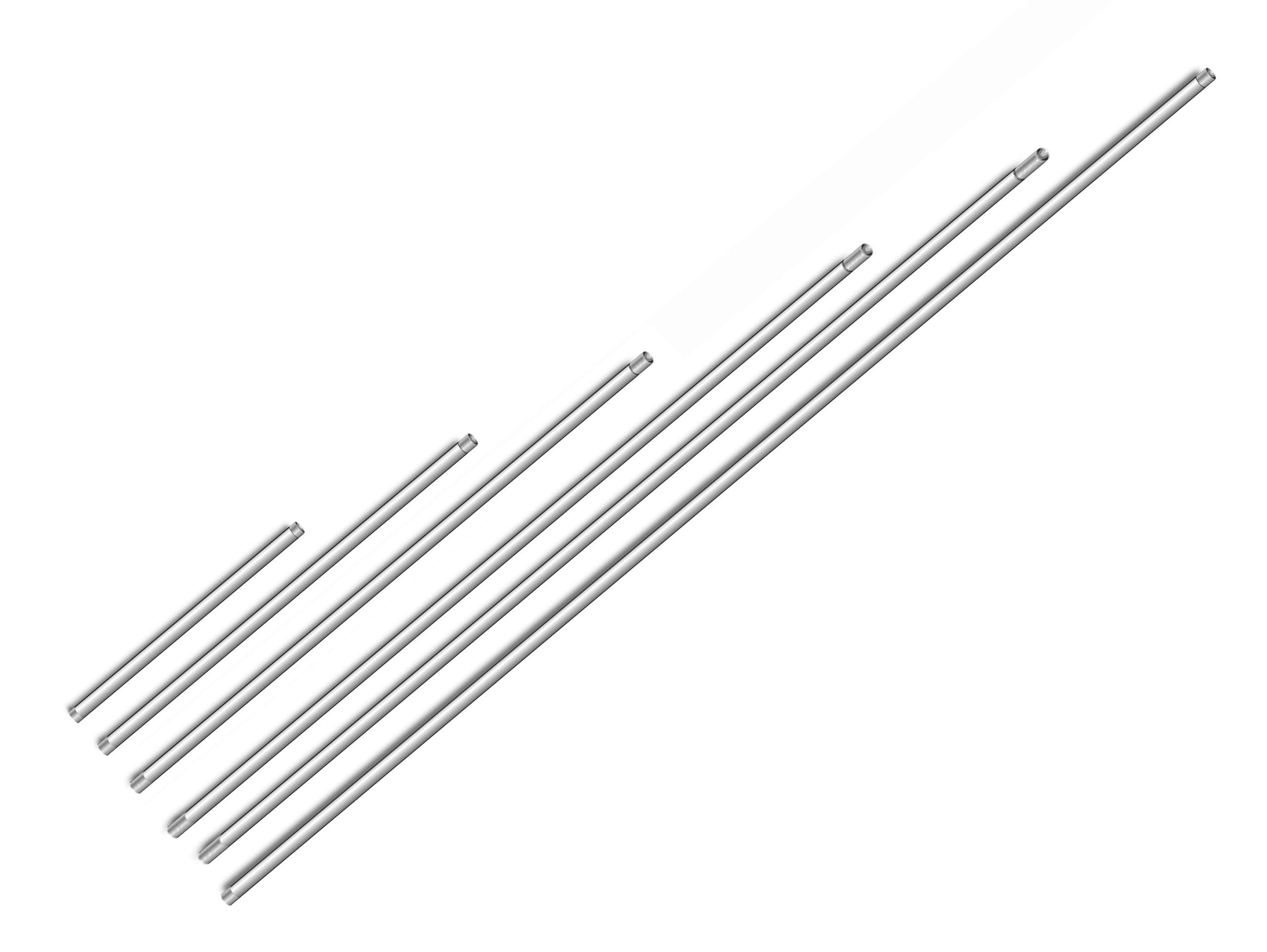

Lance tubes serve as conduits to get the water to the nozzle and therefore closer to where the work is performed. Giant only offers stainless steel lance tubes, in either ¼” or ½” tubes that are rated up to a maximum of 7250 PSI (500 Bar). The lance tube assemblies come with molded or vented grips and are rated up to 340 °F (170 °C). For higher pressure and flow applications, shoulder stocks are available. The length of the tubes vary from 15.5” (394 mm) to 84” (2135 mm).
Associated Files
| Model | Pressure | Length | Thread Size | Handle | |
|
21715 |
3000 PSI 200 bar |
24" | 1/4" MNPT | no |
|
|
21716 |
3000 PSI 200 bar |
15.5" | 1/4" MNPT | no |
|
|
21718 |
3000 PSI 200 bar |
36" | 1/4" MNPT | no |
|
|
21719 |
3000 PSI 200 bar |
60" | 1/4" MNPT | no |
|
21721A |
3000 PSI 200 bar |
36" | 1/4" MNPT | yes |
|
|
21722A |
3000 PSI 200 bar |
60" | 1/4" MNPT | yes |
|
|
21723A |
3000 PSI 200 bar |
15.5" | 1/4" MNPT | yes |
|
|
21724 |
3000 PSI 200 bar |
24" | 1/4" MNPT | yes |
|
|
21725 |
3000 PSI 200 bar |
72" | 1/4" MNPT | no |
|
|
21726 |
3000 PSI 200 bar |
84" | 1/4" MNPT | no |
|
|
21727 |
3000 PSI 200 bar |
48" | 1/4" MNPT | no |
|
|
21728 |
3000 PSI 200 bar |
72" | 1/4" MNPT | yes |
|
|
21729 |
3000 PSI 200 bar |
84" | 1/4" MNPT | yes |
|
|
21748 |
3000 PSI 200 bar |
48" | 1/4" MNPT | yes |
|
21762A |
3600 PSI 250 bar |
35.33" | 1/4" MNPT | yes, bent single tube |
|
21780-S |
3600 PSI 250 bar |
35.33" | 1/4" MNPT | yes, bent double tube |
|
|
21780A |
3600 PSI 250 bar |
35.33" | 1/4" MNPT | yes, bent double tube |
|
21701A | 12" | 1/4" MNPT | yes |
