CLP124

<p>A German-made reciprocating triplex plunger pump for liquid CO2 applications.</p><p>Features:<br /> Spheroidal cast iron crankcase with sight glass and vented dipstick; forged, through-hardened, ground and polished crankshaft; bronze connecting rods; hardened stainless steel plunger bases; solid ceramic plungers; Rope packing/Teflon seals with EPDM O-rings; stainless steel valves and cast aluminum bronze manifold.</p>

  • CLP124 Exploded View and Parts List

Sorry, there are no accessories associated with this product.

  • Limited Warranty
  • CLP124 Installation Instructions
  • CLP124 Repair Instructions

SPECIFICATIONS

U.S. Metric
Maximum Flow 13.5 GPM 51.0 L/min
Maximum Discharge Pressure 4350 PSI 300 bar
Crankshaft Speed 1000 RPM
Maximum Power Consumption 40 BHP 30 kW
Minimum Power Consumption 4 BHP 3 kW
Maximum Inlet Pressure 4350 PSI 300 bar
Plunger Diameter 0.94″ 24 mm
Stroke 1.57″ 40 mm
Crankshaft Diameter 35 mm
Crankshaft Rotation Top of Pulley Towards Manifold
Crankshaft Mounting Either Side
Inlet Ports (2) 1-1/2″ BSP
Discharge Ports (2) 1″ BSP
Crankcase Oil Capacity 101 fl. oz. 3.0 L
Weight 183 lbs. 83 kg
Key Component Material
Manifold Aluminum Bronze
Plungers Solid Ceramic Oxide
Valves High Grade Stainless Steel
Seals Rope Packing/Teflon with EPDM O-Rings
Gear End Spheroidal Cast Iron

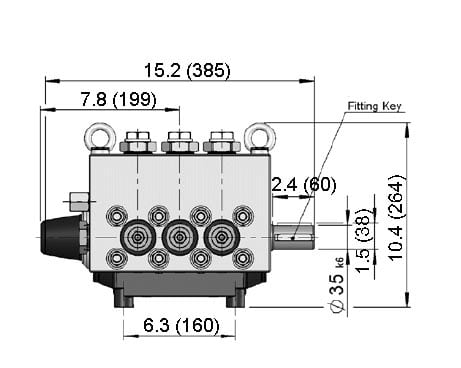

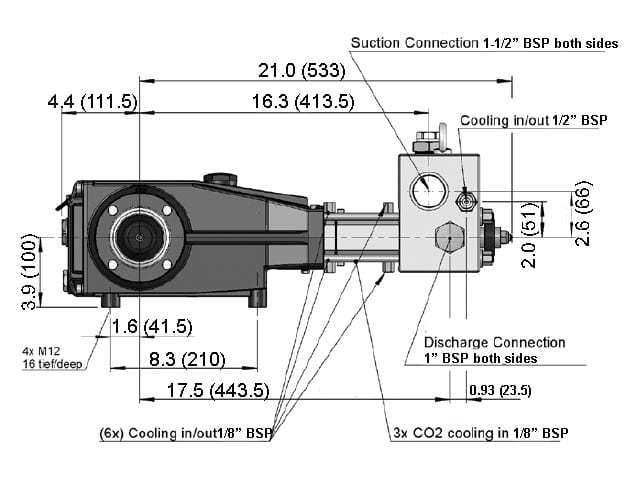

Click the image to enlarge


HORSEPOWER SPECIFICATIONS

Contact Giant Industries for full horsepower specifications.

Horsepower Requirements

The ratings shown are the power requirements for the pump. Gas engine power outputs must be approximately twice the pump power requirements shown above.

We recommend a 1.15 service factor be specified when selecting an electric motor as the power source. To compute specific pump horsepower requirements use the following formulas:
Electric HP = (GPM X PSI)/1450
as HP = (GPM X PSI)/1100


*Engine power varies based on horizontal or vertical orientation, as well as by makes and models from each manufacturer.


REPAIR KITS

Contact Giant Industries for repair parts.

Repair Kits Available

The repair kits listed to the right are available for this pump. If you need further information about these repair kits, or have questions about other specific parts for your pump, please contact you local Giant distributor or contact Giant customer service.

PUMP CATEGORIES:
Service & Repair

Giant provides service on each pump and accessory that we sell. Many basic repair procedures are covered in the Giant repair manual. For all other questions on service or repair needs please contact your local Giant distributor.
