P56-5100

A German-made triplex plunger positive displacement pump with reciprocating plungers for direct or belt drive applications.

Features:
Aluminum crankcase with sight glass and vented dipstick; forged, through-hardened; ground and polished crankshaft; bronze connecting rods; hardened stainless steel plunger bases; solid ceramic plungers; nitrile seals (with fabric reinforcing); stainless steel valves and 316 stainless steel manifold.

  • P56-5100 Exploded View
  • P56-5100 Parts List
  • P56-5100 Torque Specifications
  • Giant Industries Limited Warranty
  • P56-5100 Installation Instructions
  • P56-5100 Repair Instructions
  • Troubleshooting Guide

SPECIFICATIONS

U.S. Metric
Flow 6.1 GPM 23.1 L/min
Maximum Discharge Pressure 1885 PSI 130 bar
Crankshaft Speed 1420 RPM
Power Consumption 7.9 BHP 5.9 kW
Maximum Inlet Pressure 145 PSI 10 bar
Maximum Temperature 158 °F 70 °C
Plunger Diameter 0.787″ 20 mm
Stroke 0.713″ 18.1 mm
Crankshaft Diameter 24 mm
Crankshaft Rotation Top of Pulley Towards Manifold
Crankshaft Mounting Either Side
Inlet Ports (2) 1/2″ NPT
Discharge Ports (2) 3/8″ NPT
Crankcase Oil Capacity 12.5 fl. oz. 0.37 L
Weight 17.2 lbs. 7.8 kg
Volumetric Efficiency @ 1420 RPM 0.94
Mechanical Efficiency @ 1420 RPM 0.86
NPSH Required 24.3 ft.-head 7.4 mWs
Key Component Material
Manifold 316 Stainless Steel
Plungers Solid Ceramic
Valves 316TI Stainless Steel
Seals Nitrile With Fabric Reinforcing
Gear End Aluminum

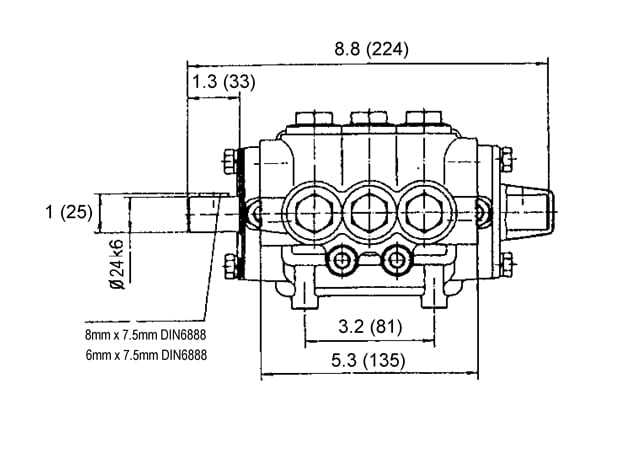

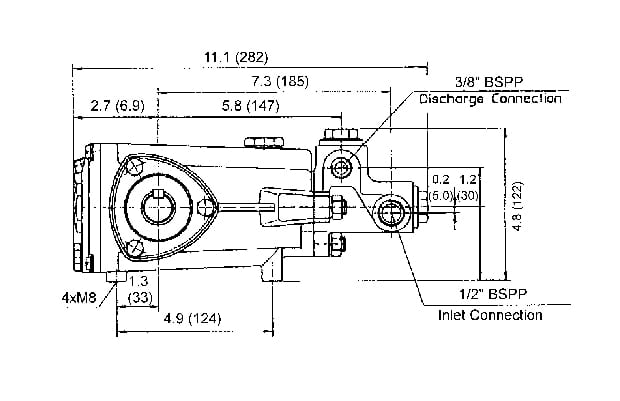

Click the image to enlarge


HORSEPOWER SPECIFICATIONS

RPM GPM 500 PSI 1000 PSI 1500 PSI 1900 PSI 2200* PSI
851 3.7 1.3 2.5 3.8 4.8 5.6
967 4.2 1.4 2.9 4.3 5.5 6.3
1084 4.7 1.6 3.2 4.8 6.1 7.1
1201 5.2 1.8 3.6 5.3 6.8 7.8
1317 5.7 2.0 3.9 5.9 7.4 8.6
1420 6.1 2.1 4.2 6.3 7.9 9.2

*Intermittent Duty Only

Horsepower Requirements

The ratings shown are the power requirements for the pump. Gas engine power outputs must be approximately twice the pump power requirements shown above.

We recommend a 1.15 service factor be specified when selecting an electric motor as the power source. To compute specific pump horsepower requirements use the following formulas:

Electric HP = (GPM X PSI)/1450

as HP = (GPM X PSI)/1100

*Engine power varies based on horizontal or vertical orientation, as well as by makes and models from each manufacturer.


REPAIR KITS

ITEM# PART# DESCRIPTION Qty.
Plunger Packing Kit – Part #09573
31 06076 V-Sleeve 3
38 06015-0001 O-Ring, Vale Seat 3
40 07212-0001 O-Ring, Adapter 3
42 07214-0001 O-Ring, Manifold Plug 3
Valve Assembly Kit – Part #09041-0100
34 07325-0100 Spring Retainer 6
35 06017-0100 Valve Spring 6
36 06016-0100 Valve Plate 6
37 06014-0100 Valve Seat 6
38 06015-0001 O-Ring, Valve Seat 6
40 07212-0001 O-Ring, Adapter 3
42 07214-0001 O-Ring, Manifold Plug 6
Oil Seal Kit – Part #09202
26 07206 Oil Seal 3

Repair Kits Available

The repair kits listed to the right are available for this pump. If you need further information about these repair kits, or have questions about other specific parts for your pump, please contact you local Giant distributor or contact Giant customer service.

PUMP CATEGORIES:
Service & Repair

Giant provides service on each pump and accessory that we sell. Many basic repair procedures are covered in the Giant repair manual. For all other questions on service or repair needs please contact your local Giant distributor.
