P47

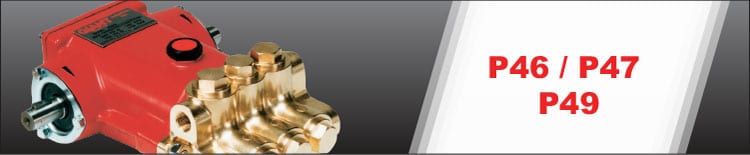

A German-made reciprocating triplex plunger pump.

Features:
Aluminum crankcase with sight glass and vented dipstick; forged, through-hardened, ground and polished crankshaft; bronze connecting rods; hardened stainless steel plunger bases; solid ceramic plungers; nitrile seals (with fabric reinforcing); stainless steel valves and forged brass manifold.

SPECIFICATIONS

U.S. Metric
1420 RPM
Max Flow 1.2 GPM 4.7 L/min
Max Discharge Pressure 3000 PSI 200 bar
Max Inlet Pressure 145 PSI 10 bar
Plunger Diameter 0.47″ 12 mm
Stroke 0.49″ 12.4 mm
Max Temp 160 ° F 70 ° C
Crankshaft Diameter .0.71″ 18 mm
Crankcase Capacity 8.8 fl. oz. 0.26 L
Weight 13.9 lbs. 6.3 kg
NPSHR 29.5 Ft. of Head 9.0 mWs
Inlet Ports (2) 1/2″ BSP
Discharge Ports (2) 3/8″ BSP
Shaft Rotation Top of Pulley Towards Manifold
Shaft Mounting Either Side
Volumetric Efficiencty @ 1420 RPM 0.96 0.96
Mechanical Efficiency @ 1420 RPM 0.8 0.8
Key Component Material
Manifold Forged Brass
Plungers Solid Ceramic Oxide
Valves High Grade Stainless Steel
Seals Nitrile With Fabric Reinforcing
Gear End Aluminum



Click the image to enlarge


HORSEPOWER SPECIFICATIONS

RPM GPM 1000 PSI 2000 PSI 2500 PSI 3000 PSI
900 0.8 0.6 1.1 1.4 1.7
1100 1.0 0.7 1.4 1.7 2.1
1200 1.1 0.8 1.5 1.9 2.3
1420 1.2 0.8 1.7 2.1 2.5

Horsepower Requirements

The ratings shown are the power requirements for the pump. Gas engine power outputs must be approximately twice the pump power requirements shown above.

We recommend a 1.15 service factor be specified when selecting an electric motor as the power source. To compute specific pump horsepower requirements use the following formulas:
Electric HP = (GPM X PSI)/1450
as HP = (GPM X PSI)/1100


*Engine power varies based on horizontal or vertical orientation, as well as by makes and models from each manufacturer.


REPAIR KITS

ITEM# PART# DESCRIPTION Qty.
Plunger Packing Kit – Part #09758
31 08272 Sleeve 3
40 07234 O-Ring 3
42 12004 O-Ring, Plug 3
44 07035 O-Ring 3
Valve Assembly Kit – Part #09759
34 07325 Spring Tension Disc 6
35 08273 Valve Spring 6
36 06016 Valve Plate 6
37 06014 Valve Seat 6
38 06015 O-Ring 6
Oil Seal Kit – Part #09314
25 13403 Oil Scraper 3
33 07913-0001 O-Ring, Viton 6



Repair Kits Available

The repair kits listed to the right are available for this pump. If you need further information about these repair kits, or have questions about other specific parts for your pump, please contact you local Giant distributor or contact Giant customer service.

PUMP CATEGORIES:
Service & Repair

Giant provides service on each pump and accessory that we sell. Many basic repair procedures are covered in the Giant repair manual. For all other questions on service or repair needs please contact your local Giant distributor.
