P206-5111

A German-made triplex plunger positive displacement pump with reciprocating plungers for direct or belt drive applications.

Features:
Anodized aluminum crankcase with sight glass and vented dipstick; forged, through-hardened, ground and polished crankshaft; bronze connecting rods; hardened stainless steel plunger bases; solid ceramic plungers; nitrile seals (with fabric reinforcing); stainless steel valves; and 316 stainless steel manifold.

Options:
Gearbox and bell housings (to connect to gasoline, diesel, electric or hydraulic drive), couplers (aluminum or Delrin).

  • P206-5111 Exploded View
  • P206-5111 Parts List

Sorry, there are no accessories associated with this product.

  • Giant Industries Limited Warranty
  • P206-5111 Installation Instructions
  • P206-5111 Repair Instructions
  • Troubleshooting Guide

SPECIFICATIONS

U.S. Metric
Flow 0.8 GPM 3.0 L/min
Pressure (Continuous) 2000 PSI 140 bar
Maximum Inlet Pressure 90 PSI 6.0 bar
Speed 1750 RPM
Plunger Diameter 0.47″ 12 mm
Stroke 0.13″ 3.4 mm
Max. Temperature of Pumped Fluids 160 °F 70 °C
Inlet Ports (2) 1/2″ BSP
Discharge Ports (2) 3/8″ BSP
Shaft Rotation Top of Pulley Towards Fluid End
Crankshaft Diameter 24 mm
Key Width 0.31″ 8 mm
Shaft Mounting Either Side
Weight 11.7 lbs. 5.3 kg
Crankcase Oil Capacity 7.5 fl. oz. 0.22 L
Extended Crankcase Oil Capacity 9.0 fl. oz. 0.27 L
Volumetric Efficiency @ 1750 RPM 0.94
Key Component Material
Manifold 316 Stainless Steel
Plungers Solid Ceramic Oxide
Valves 316TI Stainless Steel
Gear End Aluminum

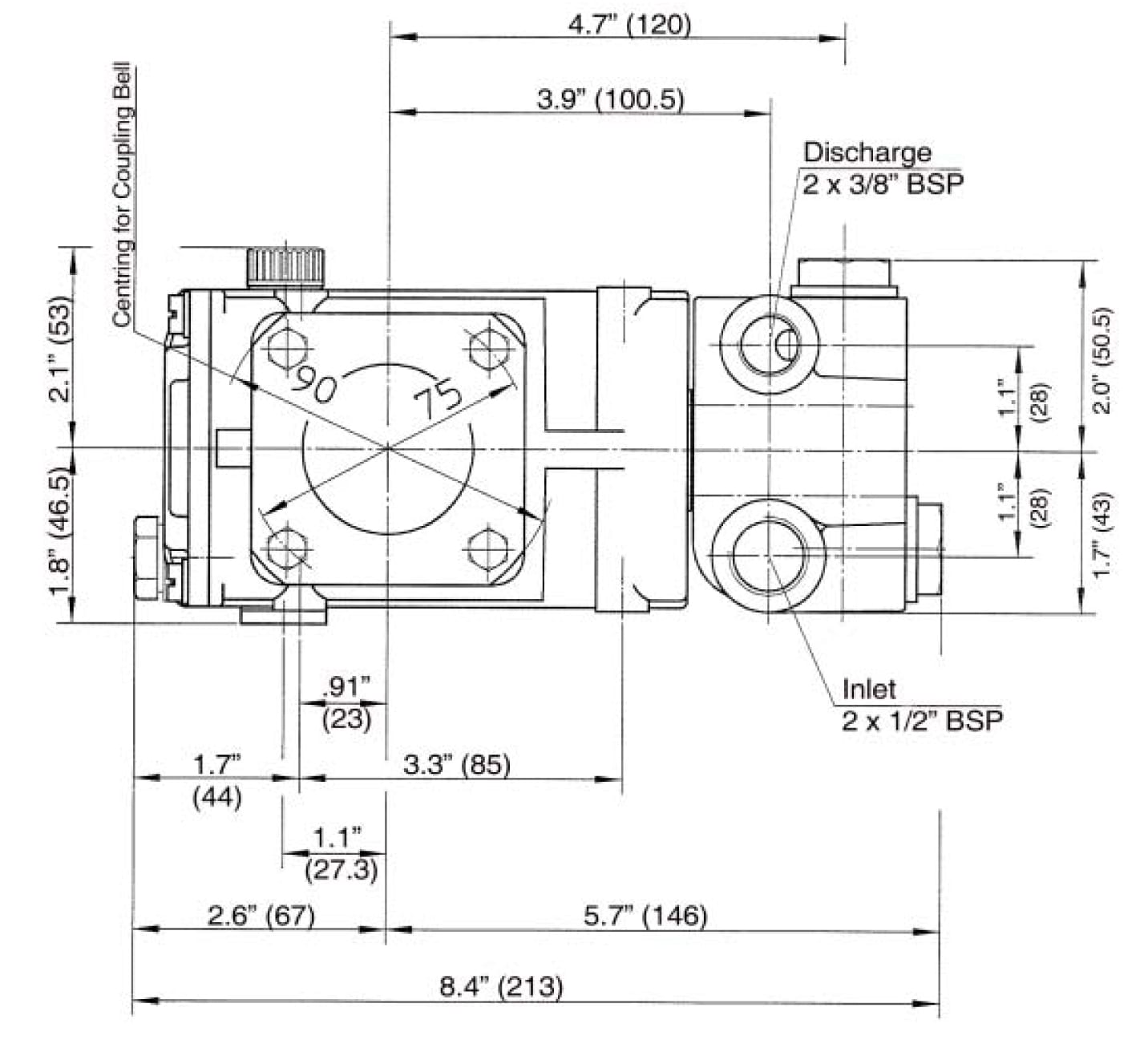

Click the image to enlarge


HORSEPOWER SPECIFICATIONS

RPM GPM 1000 PSI 1500 PSI 2000 PSI
500 0.23 0.16 0.24 0.32
1000 0.46 0.32 0.48 0.63
1750 0.80 0.55 0.83 1.10

Horsepower Requirements

The ratings shown are the power requirements for the pump. Gas engine power outputs must be approximately twice the pump power requirements shown above.

We recommend a 1.15 service factor be specified when selecting an electric motor as the power source. To compute specific pump horsepower requirements use the following formulas:
Electric HP = (GPM X PSI)/1450
as HP = (GPM X PSI)/1100


*Engine power varies based on horizontal or vertical orientation, as well as by makes and models from each manufacturer.


REPAIR KITS

ITEM# PART# DESCRIPTION Qty.
Plunger Packing Kit – Part #09656-0011
21 08443-0001 O-Ring 3
23 07391-0010 V-Sleeve 3
23A 07391-0010 V-Sleeve 3
24 07392 Support Ring 6
Valve Assembly Kit – Part #09775
26A 04273 Valve Assembly 6
31 07853-0001 O-Ring 6
33 07913-0001 O-Ring 6
Oil Seal Kit – Part #09144
19 08356 Oil Seal 3

Repair Kits Available

The repair kits listed to the right are available for this pump. If you need further information about these repair kits, or have questions about other specific parts for your pump, please contact you local Giant distributor or contact Giant customer service.

PUMP CATEGORIES:
Service & Repair

Giant provides service on each pump and accessory that we sell. Many basic repair procedures are covered in the Giant repair manual. For all other questions on service or repair needs please contact your local Giant distributor.
